SMART KTF 2000 – KTF/100HP Operation
SMART KTF 2000 3A-43
Set the resolution of graphic visualization (NN.N) using
[allowed values 0.1 10.0].
Set the number of bars (nn), using
[allowed values 8, 12, 16].
Press
to continue.
Press
to select the source of synchronization signal (Proximity).
XXXX = EXT (External Signal) or AUTO (Signal Automatically Generated by
the Terminal) selectable using
Press
to activate the visualization of IstLFA histogram.
Press
to leave the function.

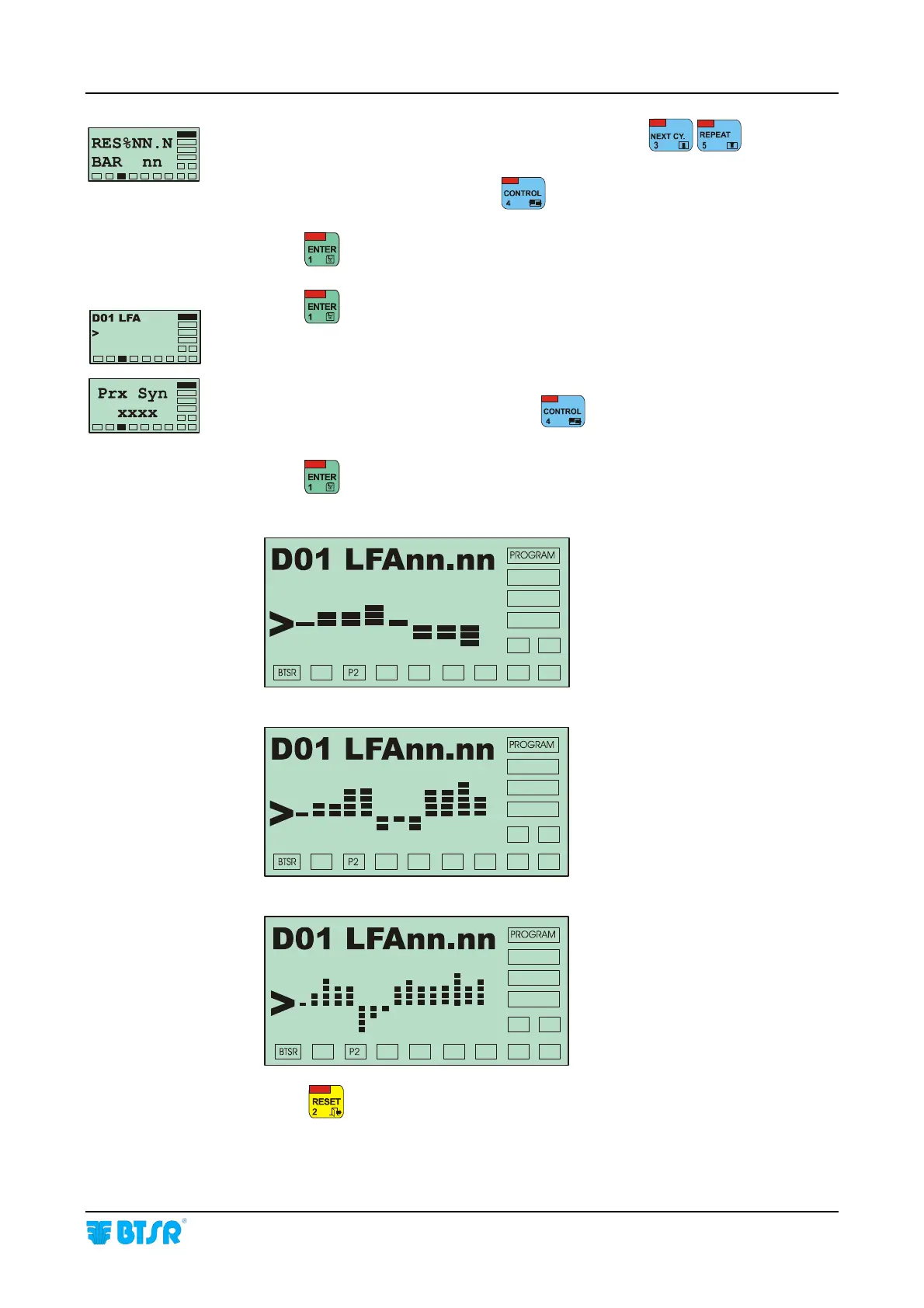

Example of IstLFA histogram
with BAR = 8
Example of IstLFA histogram
with BAR = 12
Example of IstLFA histogram
with BAR = 16
