Appendix A – Quick Reference SMART KTF 2000 – KTF/100HP
SMART KTF 2000 - A.1 -
.
QUICK REFERENCE
QUICK REFERENCEQUICK REFERENCE
QUICK REFERENCE SMART KTF 2000
SMART KTF 2000 SMART KTF 2000
SMART KTF 2000 –
––
– KTF100/HP
KTF100/HP KTF100/HP
KTF100/HP

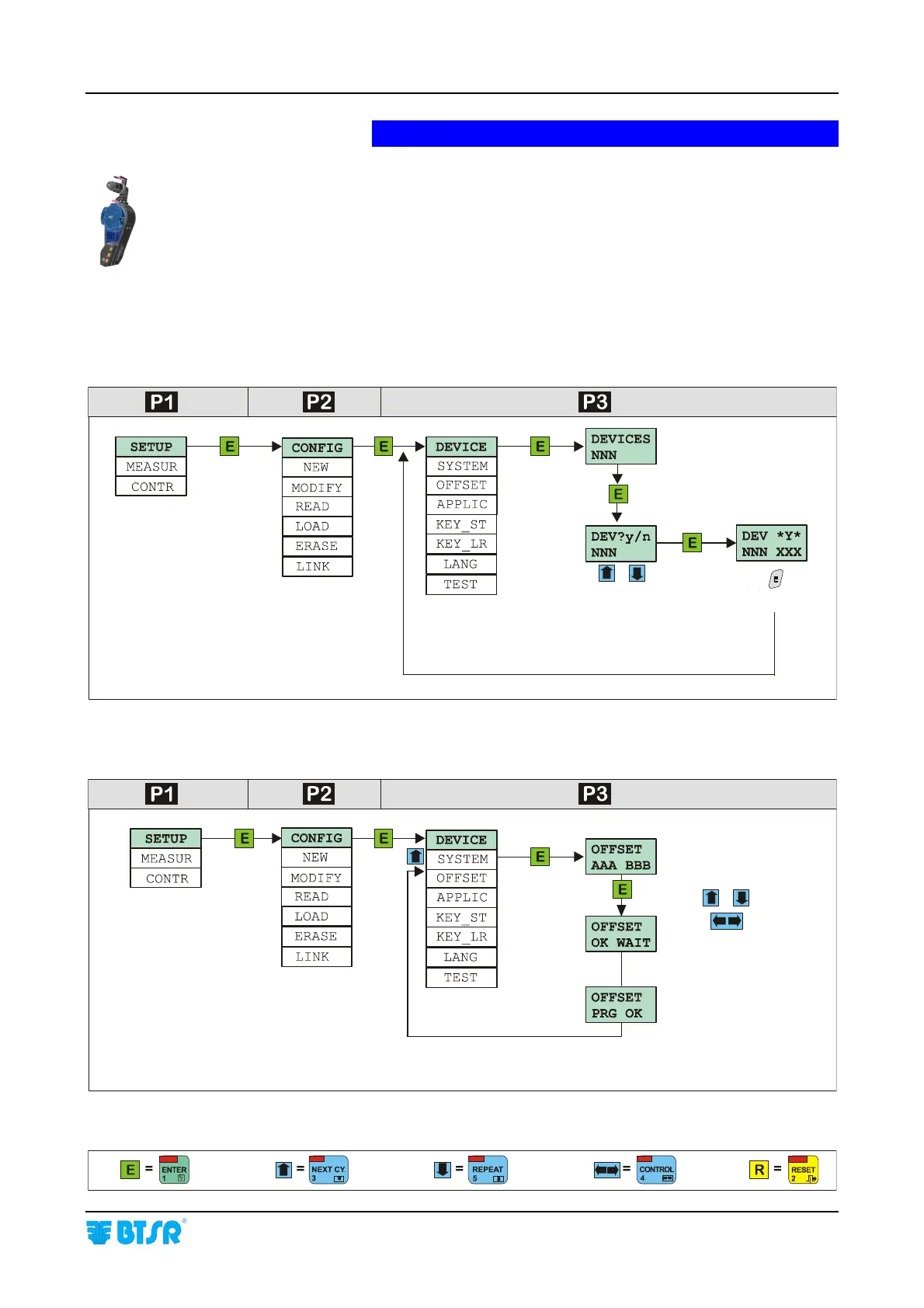

The following flow-charts show briefly the operating sequences which are required
to complete all the functions available on the SMART KFT 2000 system
connected to KTF/100HP devices.
The use of this quick reference guide supposes that the user has already acquired a
certain ability in handling the system, therefore there are no detailed explanations
of each screen shot; there is only a global overview of sequences of the required
steps, for each function. For an explanation of the symbols used in the quick
reference guide, please refer to “Symbols key” shown at the bottom of each page.
Symbols Key
DEVICE CONFIG - Numbering the KTF/100HP devices
OFFSET CONFIG - Setting the Device OFFSET
Automatic return to end configuration
Set the Number of
connected devices
Press
of KTF
to be numbered as
XXX
AAA= 1
s
t
device on which to
perform OFFSET
BBB= Last device on which to
perform the OFFSET
OFFSET performed on all devices
up to BBB
