Appendix A – Quick Reference SMART KTF 2000 – KTF/100HP
SMART KTF 2000 - A.11 -

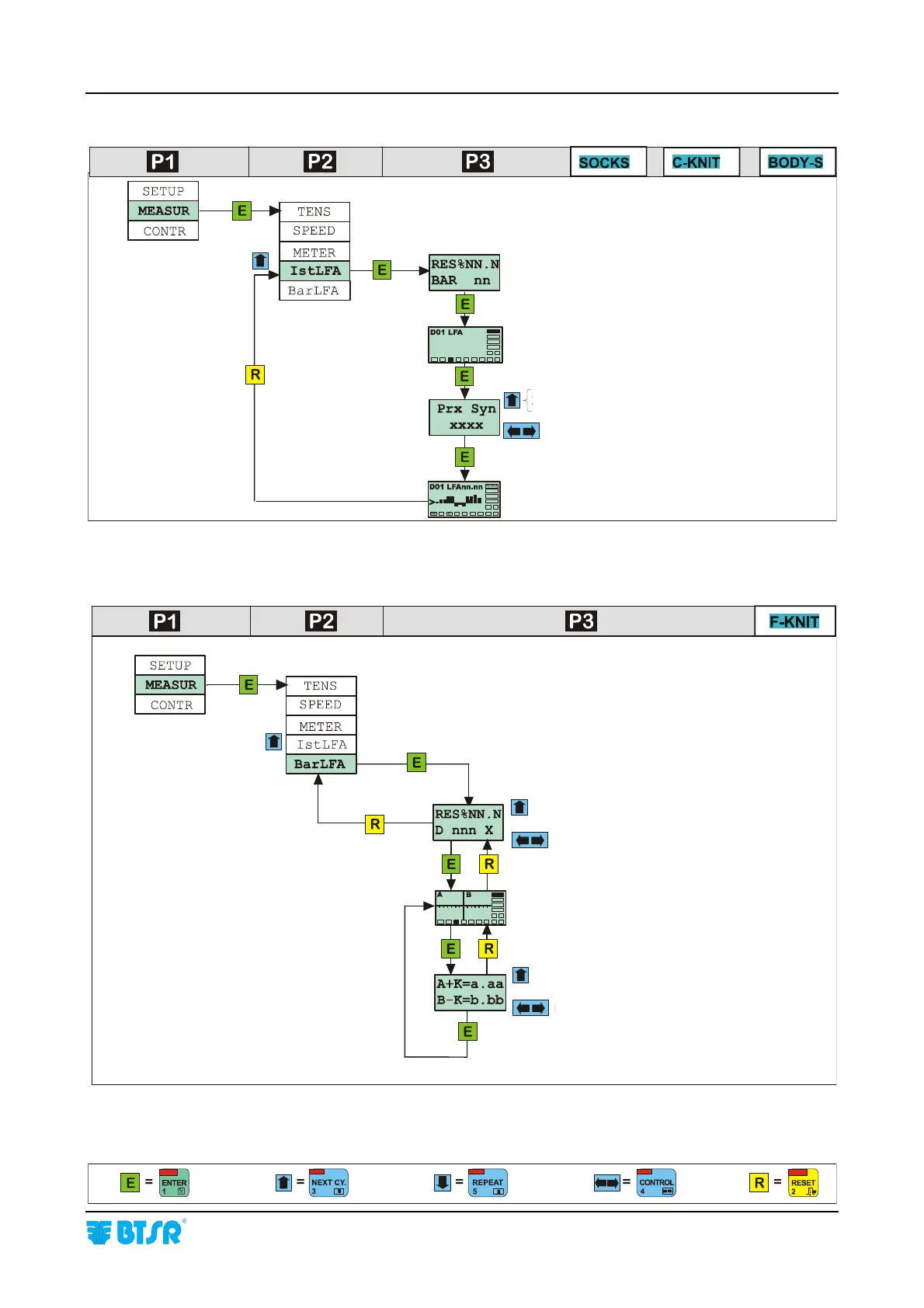

Symbols Key
IstLFA – Graphic histogram of the Amount of Yarn Fed (LFA) for every
machine’s cylinder/rev.
BarLFA – Graphic histogram of the Amount of Yarn Fed (LFA) during both
carriage strokes of a flat-bed machine
NN.N = Graphic Resolution
nn = Number of bars
XXX = EXT or AUTO
nnn = Avera
g
e number of readin
g
s
(
10 or 100
)
To switch between AUTO and EXT
NN.N = Graphic Resolution
nnn = Number of KTF Device
X = Direction (A or B)
To switch between NN.N and X
a.aa and b.bb = Amount of yarn absorbed
in both direction (A and B)
with correction factor K
To switch between a.aa and b.bb
