Appendix B – Quick Reference SMART KTF 2000 – KTF/RW
SMART KTF 2000 B.1 -
QUICK REFERENCE
QUICK REFERENCEQUICK REFERENCE
QUICK REFERENCE SMART KTF 2000
SMART KTF 2000 SMART KTF 2000
SMART KTF 2000 –
––
– KTF/RW
KTF/RW KTF/RW
KTF/RW

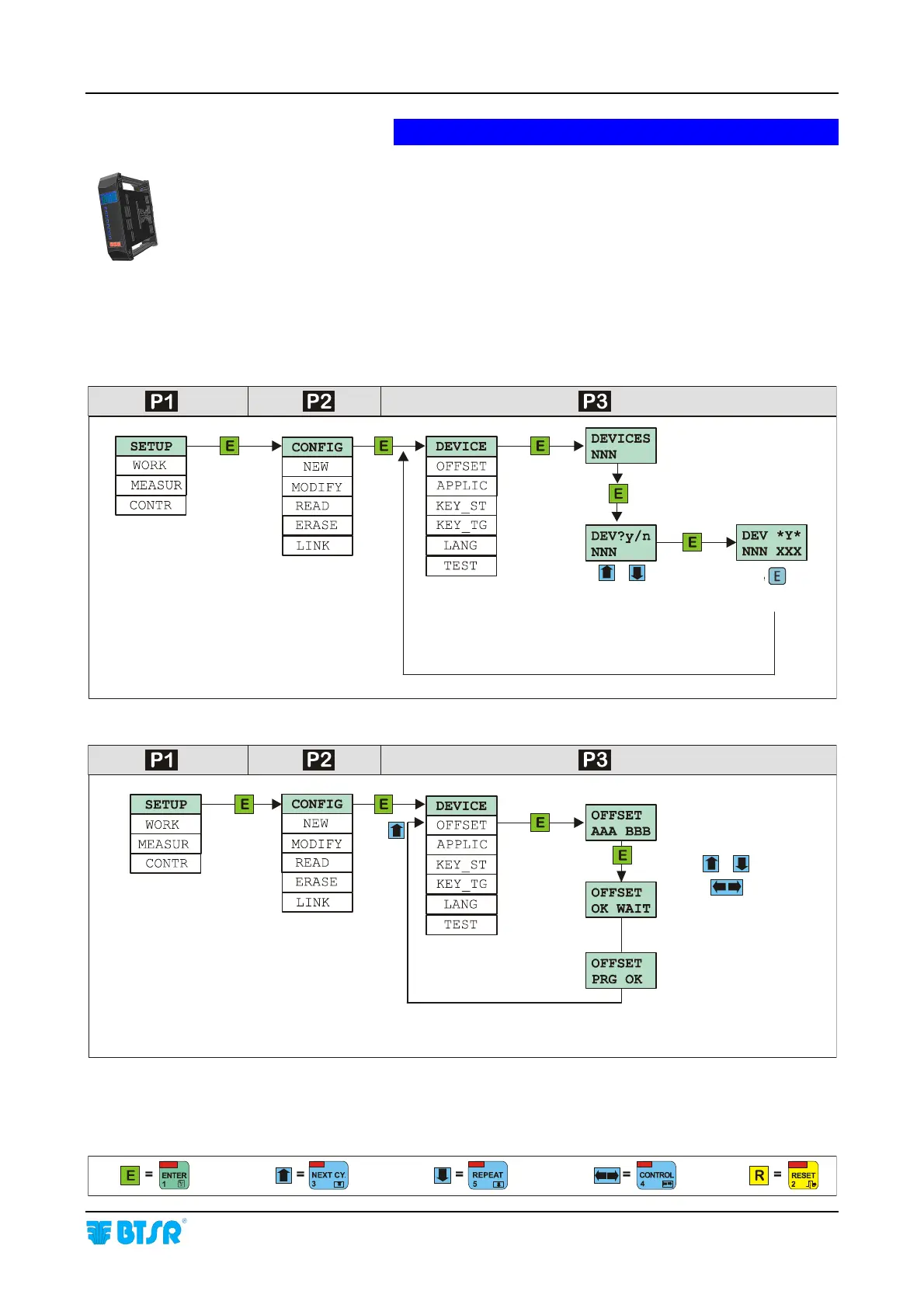

The following flow-charts show briefly the operating sequences which are required to
complete all the functions available on the SMART KFT 2000 system connected to
KTF/RW systems.
The use of this quick reference guide supposes that the user has already acquired a
certain ability in handling the system, therefore there are no detailed explanations of
each screen shot; there is only a global overview of sequences of the required steps,
for each function. For an explanation of the symbols used in the quick reference guide,
please refer to “Symbols key” shown at the bottom of each page.
Symbols Key
Automatic return to end configuration
Set the Number of
connected devices
Press
of KTF
to be numbered as
XXX
OFFSET CONFIG - Setting the Device OFFSET
AAA= 1
s
t
device on which to
perform OFFSET
BBB= Last device on which to
perform the OFFSET
OFFSET performed on all devices
up to BBB
DEVICE CONFIG
–
Numbering the KTF/RW devices
