SMART KTF 2000 – KTF/100HP Operation
SMART KTF 2000 3A-45

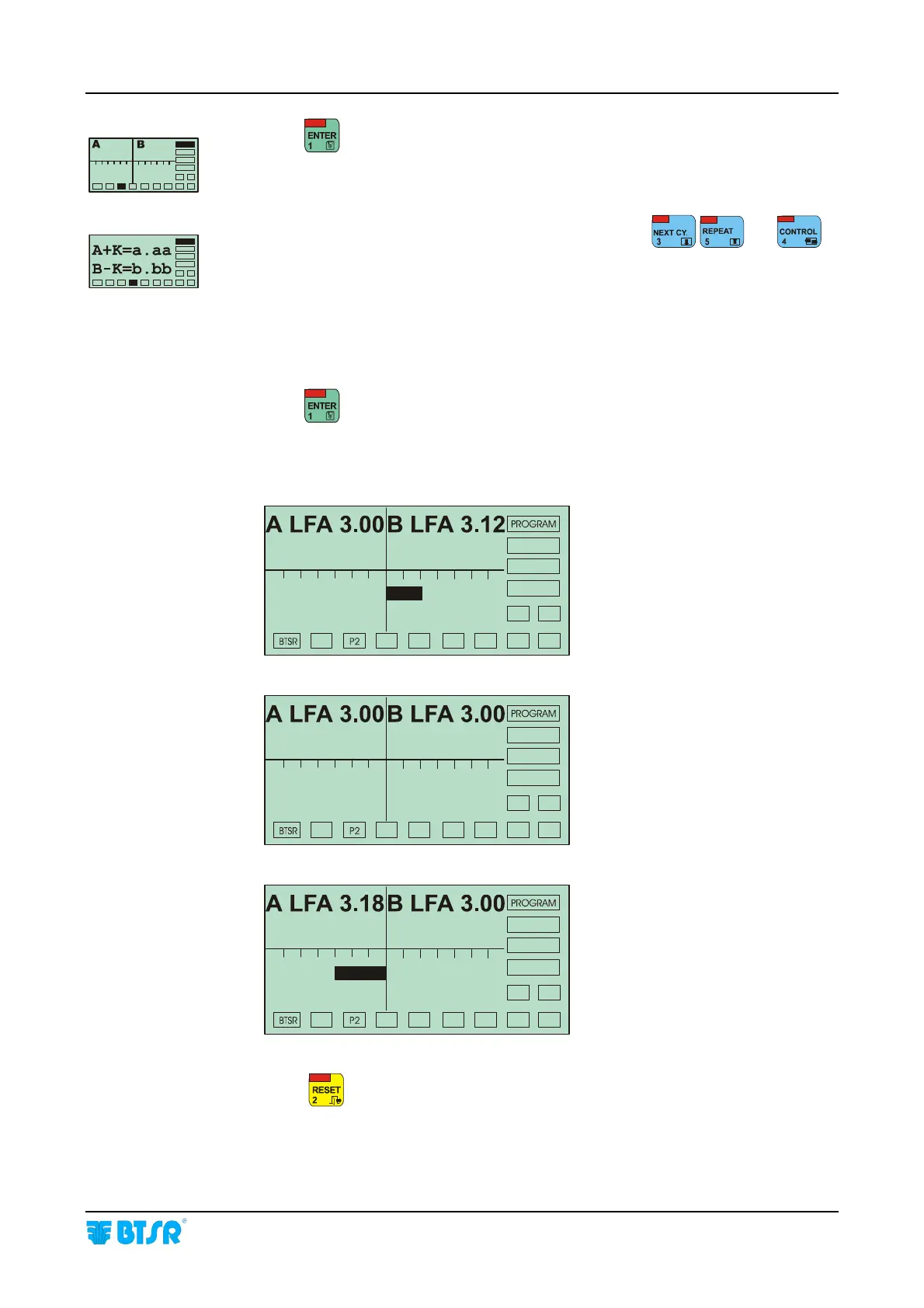

Press to adjust the amount of yarn consumed in the 2 directions of carriage
movement.
Set the values a.aa and b.bb (meters . centimeters) using
and
(K is a constant value added in one direction and subtracted in the other direction.
This is due to the fact that in one of the two directions, besides the yarn used for
the actual manufacturing process, an extra amount of yarn is consumed, as the
carriage moves away from the position where the KTF device is mounted; in the
other direction, i.e. during the carriage approach movement, the machine uses the
amount of yarn already drawn in the previous movement)
Press
to activate the display of BarLFA graphic.
Press
to leave the function.
Example of BarLFA graphic
with RES = 2%
Example of BarLFA graphic
with RES = 2%
(Optimum Condition)
Example of BarLFA graphic
with RES = 2%
