Burkert 8035 - Page 74

74
Operating and functions
CURRENT
SOURCESINK
BINARY
PE PEPE
PE
DI1
DI2
DI3
DI4
DO4
ISOG
FLOW
SENSOR
L+ L- PE P- P+
NC
Iout
PULSE
DO1
Supply
12..36Vdc
Univ
Batch
(AO1)
SUPPLY
NC
COIL
PULSE
INPUT
NPN/PNP
213PE
+-
SENSOR
SUPPLY
LOAD
+5V
L+
(L+)-12V
COIL/PNP
39K
470
2.2K
SENSOR TYPE
COIL NPN/PNP
DO2
DO3
OFFON
+
-
5-36 V DC
125 mA
PLC
2)
LED
1)
signalling the dosing state for example if the output DO4 has been
configured to transmit the state of the device.
System enabling to start and interrupt the dosing.
Switch
Terminal A
1)
The LED can be replaced by another indicating system depending on the configuration of the transistor output DO4. See
chap. 10.7.18.
2)
On a version energized with a 12...36 V DC voltage, the power supply of the device can be used to energize the digital
inputs DI and the transistor output DO4; If this is the case, connect the terminal "ISOG" to the terminal (L-) of terminal block
A and use a 300 mA-fuse (instead of a 125 mA-fuse) to protect the power supply.

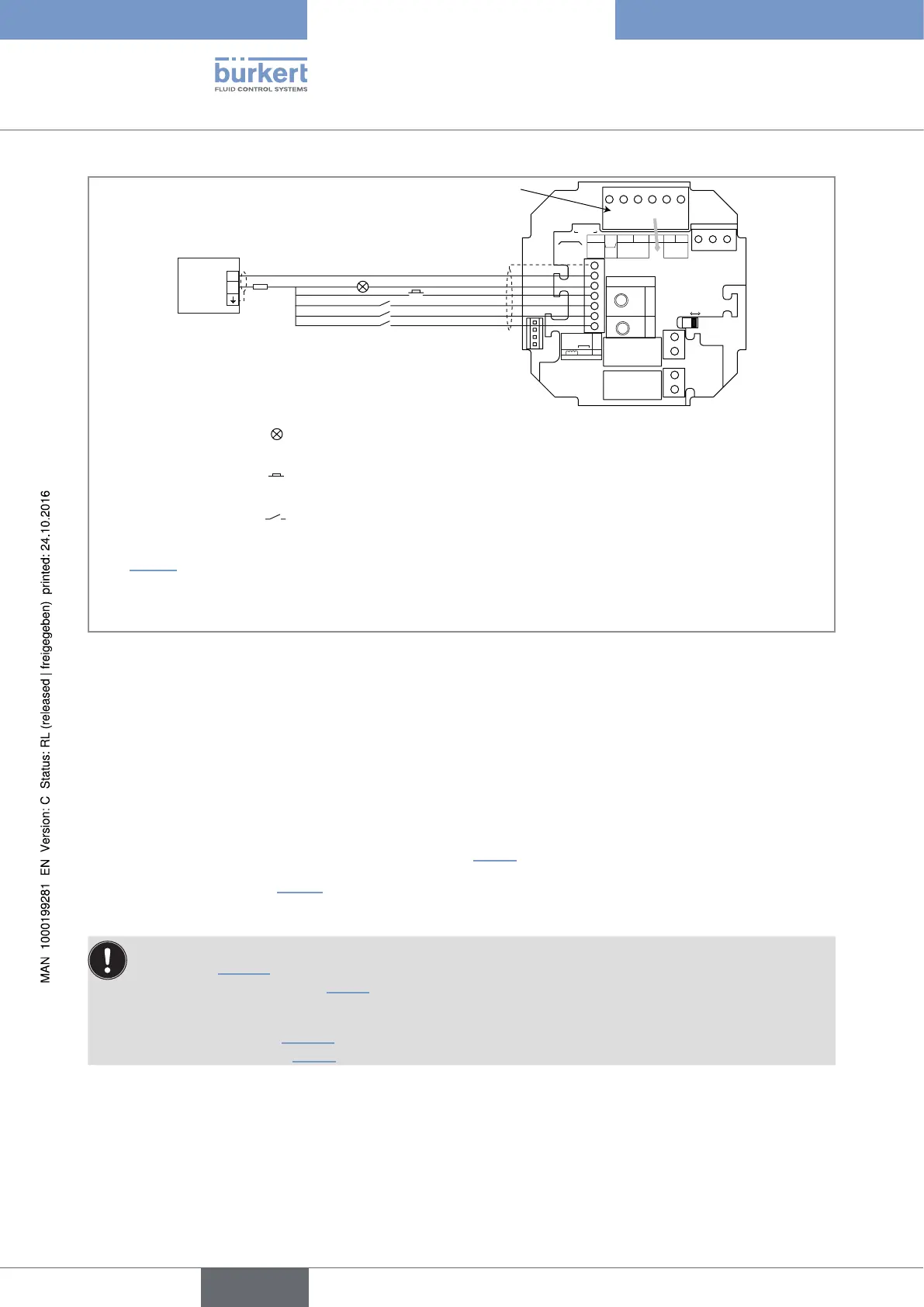

Fig. 44 : Electrical connection of the digital inputs DI and of the transistor output DO4 in dosing modes "EXT. MEM", "EXT.
+LOC" or "EXT. [T]"
→ Restart the device:
• If the DI4 input is at the low level (not powered) when energizing the device, the four digital inputs will be active
at high level.
• If the DI4 input is at the high level (not powered) when energizing the device, the four digital inputs will be
active at low level.
→ Configure the device with this dosing mode: see chap. 10.7.9.
→ Do a dosing as shown in Fig. 45.
• If the generation of alarms (alarm "DURING") for problems occurring during a dosing has been activated
(see chap. 10.7.16), an alarm is generated if there is no flow rate measured in the pipe whereas the
valves are open. See chap. 11.3.4 to solve the problem.
• If the generation of alarms (alarm "AFTER") for problems occurring at the end of the dosing has been
activated (see chap. 10.7.17), an alarm is generated if there is still flow in the pipe whereas the valves
are closed. See chap. 11.3.4 to solve the problem.
English
Type 8025 - 8035 - SE35 BATCH
