Technical data
Type ME43
6.6 Type label, device labeling
QR code (link for further information
to the device)
Identicationnumberofthedevice
Serial number
Manufacture code
Permitted ambient temperature
range
Type
Supply voltage,
Nominal power,
Degree of protection
CE mark
T
amb
-20 °C...+60 °C
24 V | 2 W | IP20
Made in Germany
74653 Ingelngen
ID: 00307390
Type: ME43
S/N: 001001
W1XXXX

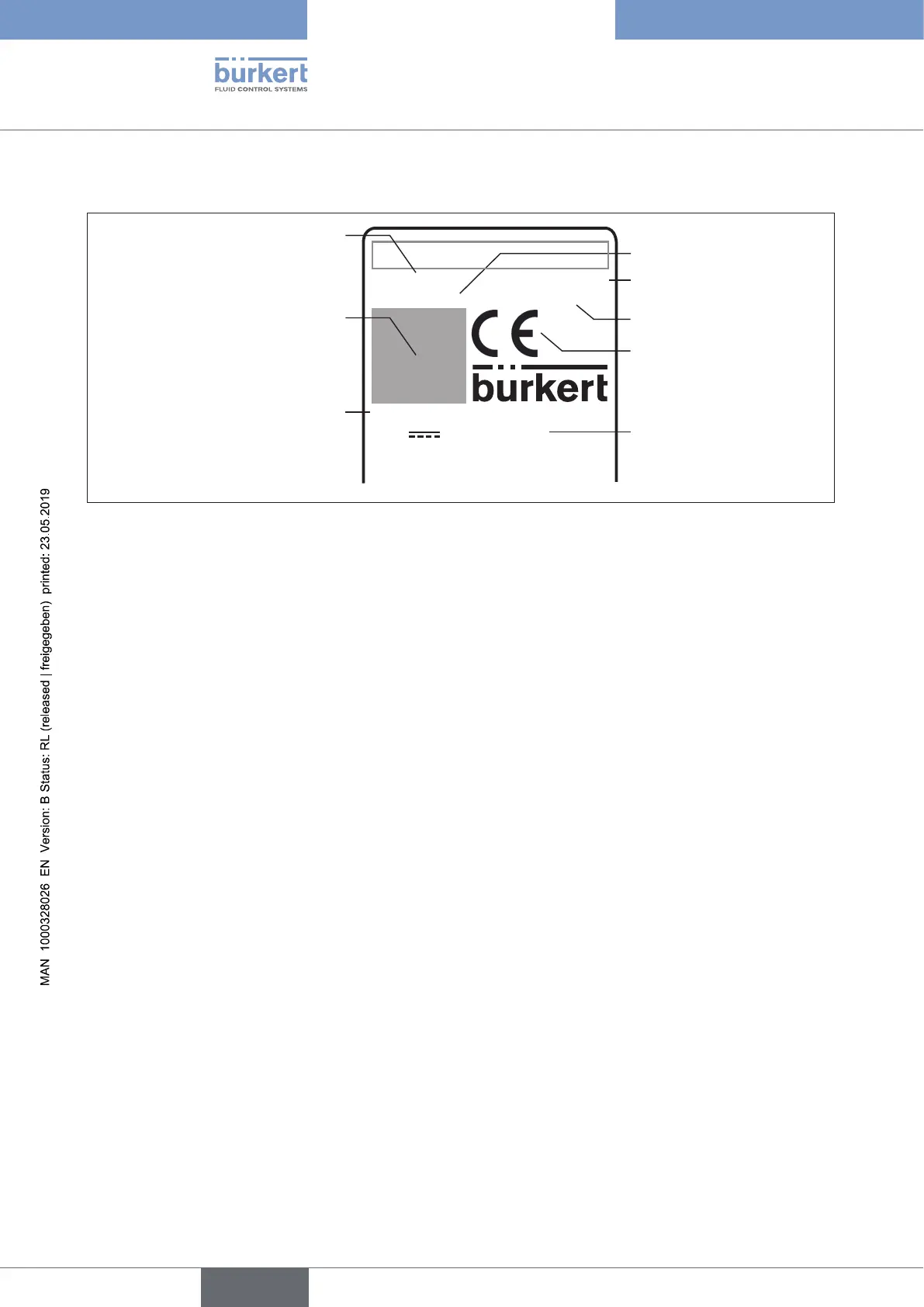

Figure 1: Description of type label and device labeling
6.7 Industrial Ethernet
PROFINETIOspecications
Topology recognition LLDP, SNMP V1, MIB2, physical device
Minimum cycle time 10 ms
IRT not supported
MRP (Media Redundancy) MRP Client is supported
Additional supported features DCP, VLAN priority tagging, Shared Device
Transmission speed 100 Mbit/s
Data transport layer Ethernet II, IEEE 802.3
PROFINETIOspecication V2.3
(AR) Application Relations
Thedevicecansimultaneouslyprocessupto2IO-ARs,
1SupervisorARand1SupervisorDAAR.
EtherNet/IPspecications
Predenedstandardobjects Identity Object (0x01)
Message Router Object (0x02)
Assembly Object (0x04)
Connection Manager (0x06)
DLR Object (0x47)
QoS Object (0x48)
TCP/IP Interface Object (0xF5)
Ethernet Link Object (0xF6)
DHCP supported
BOOTP supported
