7 INSTALLATION
7.1 Safety instructions
WARNING!
Riskofinjuryfromimproperinstallation.
▶ Installation may be carried out by authorized technicians only and with the appropriate tools.
▶ Secure system against unintentional activation.
▶ Following installation, ensure a controlled restart.
7.2 Mounting on standard rail
Electricalconnectionupwards Electricalconnectiondownwards
1.
→ Tip device to
the right and
align with
standard rail.
1.
→ Tip device to
the left and
align with
standard rail.
2.
→ Mount device
in the lower
guide of the
standard rail.
→ Push device
upwards while
also swiveling
it to the left;
lock it into the
upper guide of
the standard
rail.
2.
→ Mount device
in the upper
guide of the
standard rail.
→ Push device
downwards
while also
swiveling it to
the left; lock it
into the lower
guide of the
standard rail.
3.
3.

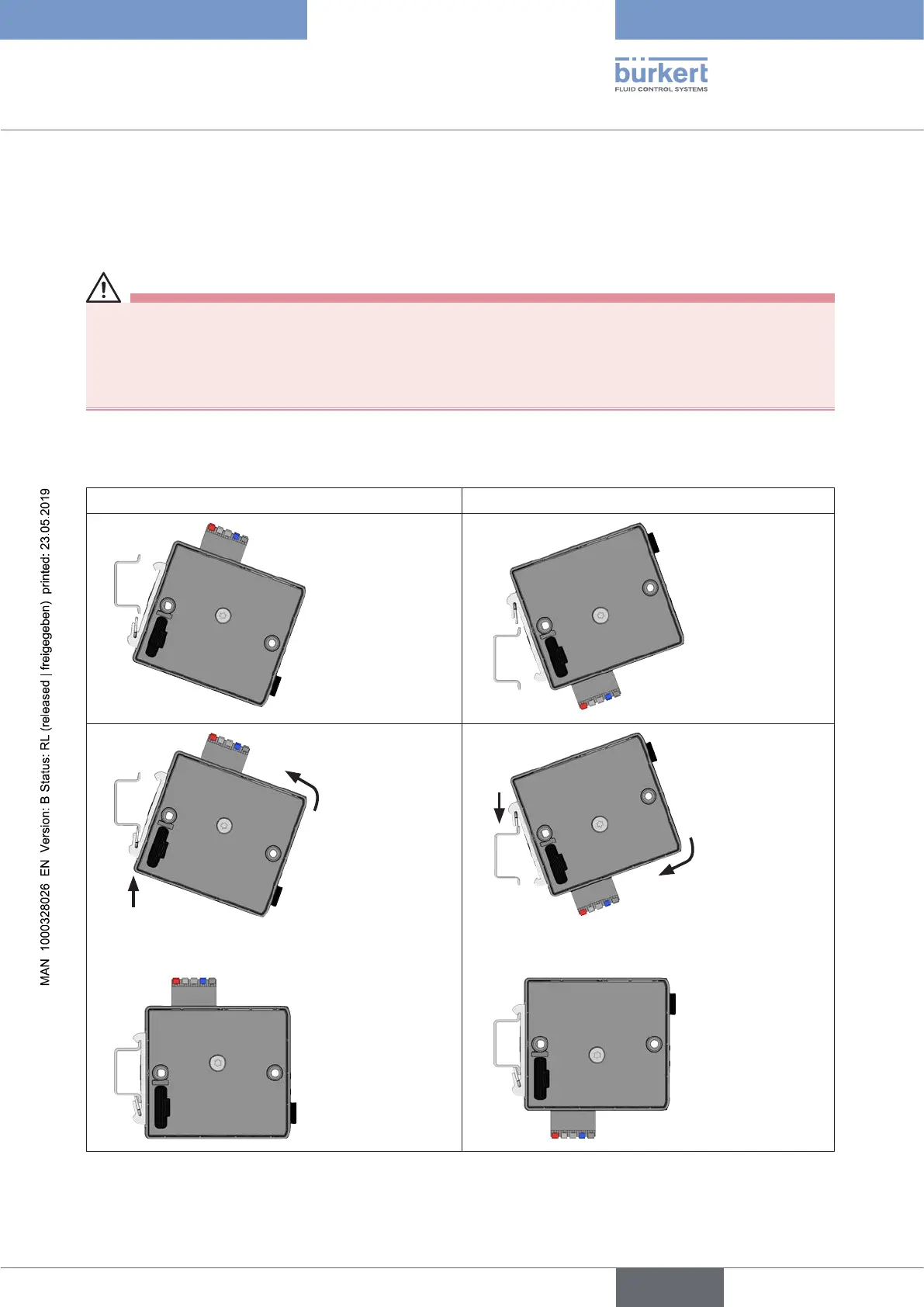

Figure 2: Mount device on standard rail
