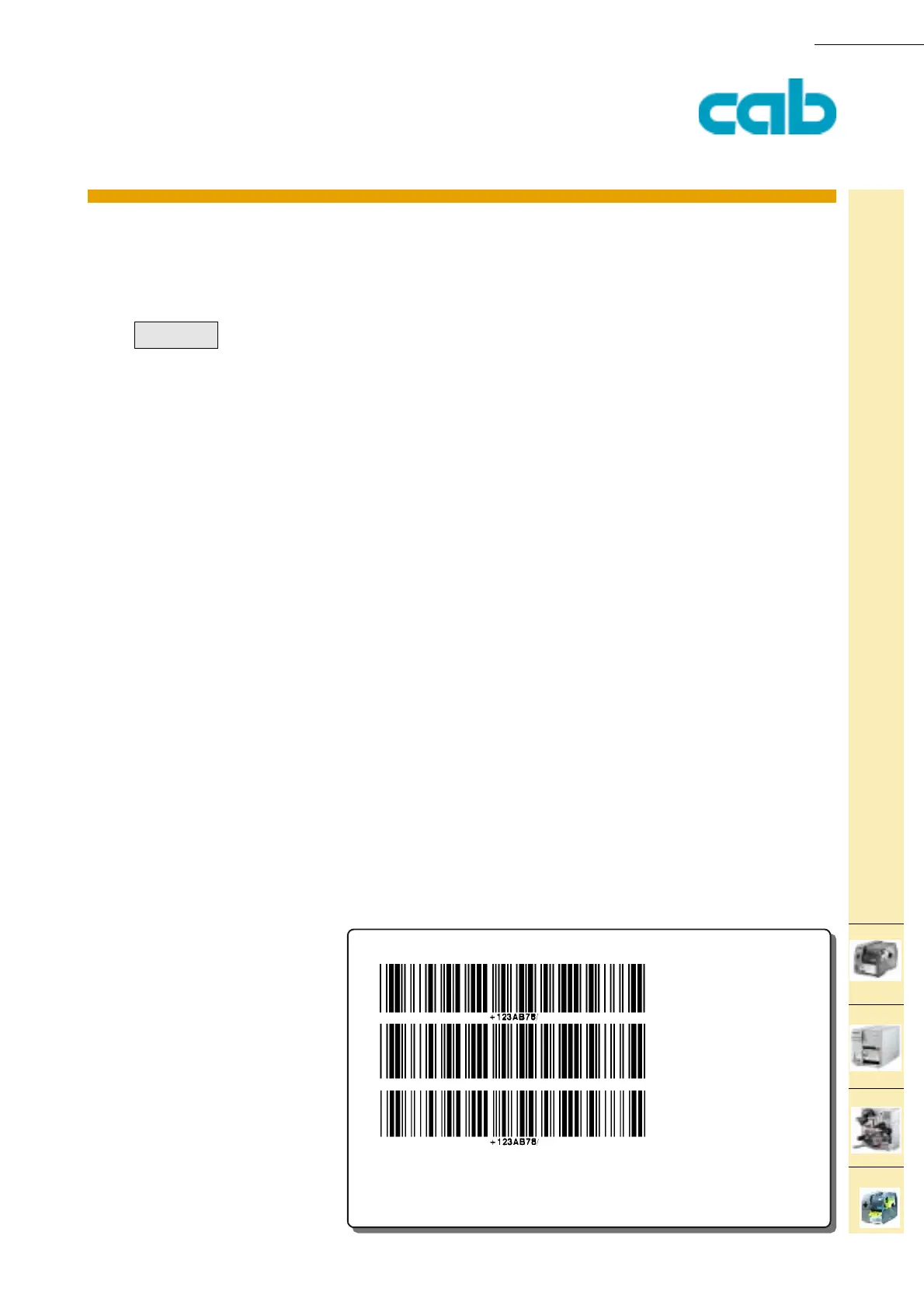

PRODUCT MARKING AND BARCODE IDENTIFICATION
M-series
B - Barcode
HIBC (Health Industry Barcode)
J
S l1;0,0,68,71,100
B 5, 5,0,
HIBC
,12,.3,3;+123AB78
B 5,18,0,
hibc
,12,.3,3;+123AB78
B 5,33,0,
HIBC
, 12,.3,3;+123AB78
A 1
Example:
108
110
Table of Contents
