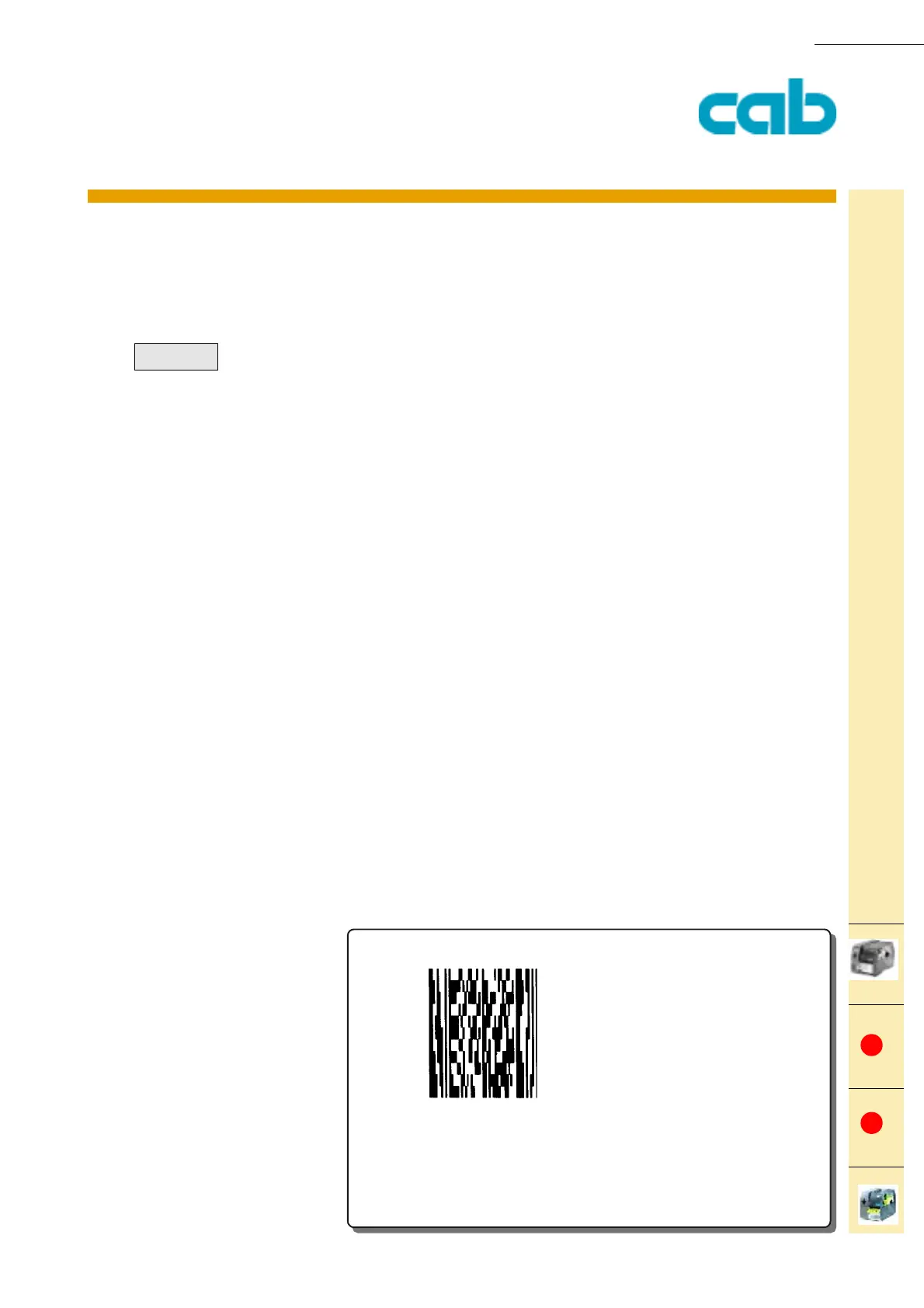

PRODUCT MARKING AND BARCODE IDENTIFICATION
M-series
B - Barcode
Micro PDF 417
Barcode type:
Micro PDF-417
J
S 0,0,68,71,100
B 10,10,0,Micro+COLS2,3,.5;cab Produkttechnik
A 1
no
no
Example:
112
114
Table of Contents
Default Chapter
2
Copyright © Cab Produkttechnik Gmbh & Co KG
2
Introduction
9
Nomenclature, Syntax of the Commands
9
Usage of this Manual
10
Restrictions
11
Print Positions
12
CHAPTER 1 - Overview
13
Instruction Types
13
ESC Instructions
13
Immediate Commands
13
Label Format Commands
14
Special Content Fields
14
Programming Cab Printers - a Simple Lesson
15
Create Your First Label
15
Explanation of this Example
15
Command Overview
17
ESC Commands
18
Immediate Commands
19
Label Format Commands
20
Special Content Fields
21
Time and Date Functions
21
Jalali Date Functions
22
Field Calculations and Comparisons
23
Special Functions (Miscellaneous)
24
Database Connector Commands
25
This
25
Function Is
25
Available For: ESCESC
25
CHAPTER 2 - ESC Commands
27
Replaces ESC in Binary Data
28
Hard Reset
29
A-Series
29
ESC* Activate All RS-485 Printers
30
ESC. Start and Stop Value for Binary Data
31
ESC: Start Description of Binary Data
32
ESC? Request for Free Memory
33
Apollo
33
ESCA - ESCZ Activate Individual RS-485 Printer
34
Esca - Abc-Status
35
Escc - Cancel Printjob
36
Escend-Of-Data
37
End Description of Binary Data
37
Hermes
37
Escf Formfeed
38
Escp0 End Printer´s Pause Mode
39
Escp1 Set Printer into Pause Mode
40
Escs Printer Status Query
41
Esct Total Cancel
42
CHAPTER 3 - Immediate Commands
43
Immediate Commands
43
Abc> - Starts the Abc Basic Compiler
44
Abc> - Ends the Abc Basic Compiler
45
Comment Line
46
A - ASCII Dump Mode
47
C - Direct Cut
48
D - Download Data
49
E - Erase Data
52
F - Formfeed
53
G - Generate Font Cache
54
L - Change Language ( Country )
57
M - Set Measuring Unit
58
P - Pause Printer
59
Q - Query Printer
60
R - Reset to Default Values
62
S - Set Date/Time
63
T - Run Printer Self-Test
64
Firmware Version
67
Synchronous Peripheral Signal Settings
68
Z - Print Slashed / Unslashed Zero
69
CHAPTER 4 - Label Format Commands
70
A - Amount of Labels
71
B - Barcode Definition
73
Barcode Overview List
78
B - Barcode 2 of 5 Interleaved
82
B - Barcode Add-On2
84
B - Barcode Add-On5
86
B - Barcode Codabar
88
B - Barcode Code 39
90
B - Barcode Code 93
94
Code 128
94
Data Matrix
96
Function Is
96
This
96
B - Barcode DBP - German Post Identcode
98
B - Barcode
100
Jan-8
100
Jan-13
102
A-Series
102
Ean 128 / Ucc128
104
B - Barcode FIM
106
B - Barcode HIBC (Health Industry Barcode)
108
B - Barcode Maxicode
110
Apollo
110
B - Barcode Micro PDF 417
112
B - Barcode MSI (MSI Plessey)
114
B - Barcode PDF417
117
B - Barcode
118
Plessey
118
Postnet
120
Hermes
120
B - Barcode QR-Code
122
Upc-A
124
Upc-E
126
B - Barcode UPC-E0
128
C - Cutter Parameters
130
C - Cutter Parameters
131
D - Global Object Offset
132
E - Define Files ( Extension )
133
F - Font Number
135
G - Graphic Field Definition
136
G - Graphic Definition - Circle
138
G - Graphic Definition - Line
140
G - Graphic Definition - Rectangle
142
G - Graphic Definition - Option: Fill
144
G - Graphic Definition - Option Shade
145
G - Graphic Definition - Option: Outline
146
H - Heat, Speed, Method of Printing, Ribbon
147
I - Image Field Definition
148
J - Job Start
150
M - Memory Card Access
151
M - Memory Card Access
152
M - Memory Card Access
153
O - Set Print Options
158
P - Set Peel-Off Mode
160
R - Replace Field Contents
161
S - Set Label Size
162
T - Text Field Definition
163
Synchronous Peripheral Signal Settings
168
CHAPTER 5 - Special Content Fields
169
Special Content Fields
169
Time Functions
170
[H12] Print Hour in 12-Hour Form (1-12)
170
[H24] Print Hour in 24-Hour Form (0-23)
171
[H012] Print H0Ur in 12-Hour Form (01-12) -Always 2 Digits
172
Print H0Ur in 24-Hour Form (01-24) -Always 2 Digits
173
[MIN] Print Minutes (00-59)
174
[Sec]
175
Print Seconds (00-59)
175
[Time ]
176
Print Actual TIME
176
Function Is
176
This
176
[XM] Am/Pm Indicator
177
Available for
178
Date
178
Print Actual DATE
178
Date Functions
178
A-Series
178
Day
179
Print Numeric DAY of the Month (1-31)
179
Print Numeric 2-Digit DAY of the Month (01-31)
180
Print Numeric Day of Year(001-366)
181
[Odate
182
Print DATE with Offset
182
Apollo
182
Print Complete Weekday Name
183
[Wday
184
Print Numeric Weekday(1-7)
184
Print Weekday Name, 2 - Digits Shortened
185
Print Weekday Name, 3 - Digits Shortened
186
Week
187
Print Numeric WEEK (1-53)
187
Hermes
187
[Week02
188
[Oweek
189
Print WEEK with Offset(1-53)
189
[Mon
190
Print 3-Character Month Name
190
[Month
191
Print Complete Month Name
191
Month
192
Print 2-Digit MONTH (1-12)
192
[Month02
193
Print 02-Digit MONTH (01-12)
193
[Yy
194
Print 2-Digit Year (00-99)
194
[Yyyy
195
Print 4-Digit Year (1970-2069)
195
Jalali Date Functions
196
Field Calculations and Comparisons
197
[+:Op1,Op2
197
[-:Op1,Op2] Subtraction
198
[*:Op1,Op2
198
Multiplication
199
[/ :Op1,Op2] Division
200
[%: Op1,Op2] Modulo
201
[|:Op1,Op2] Logical or
203
[&:Op1,Op2] Logical and
204
[<: Op1,Op2] Comparision < Less than
205
[=: Op1,Op2] Comparision = Equal
206
[>: Op1,Op2] Comparision > Greater than
207
[Mod10:X] Calculates the Modulo 10 Checkdigit
208
[Mod43:X] Calculates the Modulo 43 Checkdigit
209
Print Result in Price Format
210
[R:X] Rounding Method
211
LCD Prompt
212
Special Functions (Miscellaneous)
212
Leading Zero Replacement
215
Set Number of Digits
216
[Dbf
217
Database File Access
217
[I] Invisible Fields
218
Justification
219
[Lower
220
Converts to Lower Case Characters
220
[Name] Access a Field with a Name
221
[Name,M{,N}] Insert Substring
222
Rtmp
223
Read Value from Serial (TMP) File
223
Script Style for Numeric Values
224
[Ser
225
[U:X] Insert Unicode Characters
227
[Upper
228
Convert to Upper Case Characters
228
[WLOG] Write LOG File
229
This
229
[Wtmp]
230
Write Value to Serial (Tmp)File
230
CHAPTER 6 - Cab Database Connector
231
Function Is Available For: Cab Database Connector Commands
231
Cab Database Connector and a - Series-Sqlclient
232
A-Series
232
Installation
232
CHAPTER 7 - A-Series Basic Compiler
237
Apollo
237
Abc - A-Series Basic Compiler
237
Requirements
237
Restrictions
237
Import Differences to Yabasic PC Versions
237
Hermes
237
Temporary Restrictions/Known Bugs
237
Window-Handling
238
New Functions Compared to Yabasic
238
Restrictions Compared to Yabasic
238
PEEK Variables
239
POKE Variables
240
Streams
241
Modes
241
Notes
241
Communication with Web Browsers
242
Html
242
Abc - Examples
243
Appendix
248
ASCII Table
248
