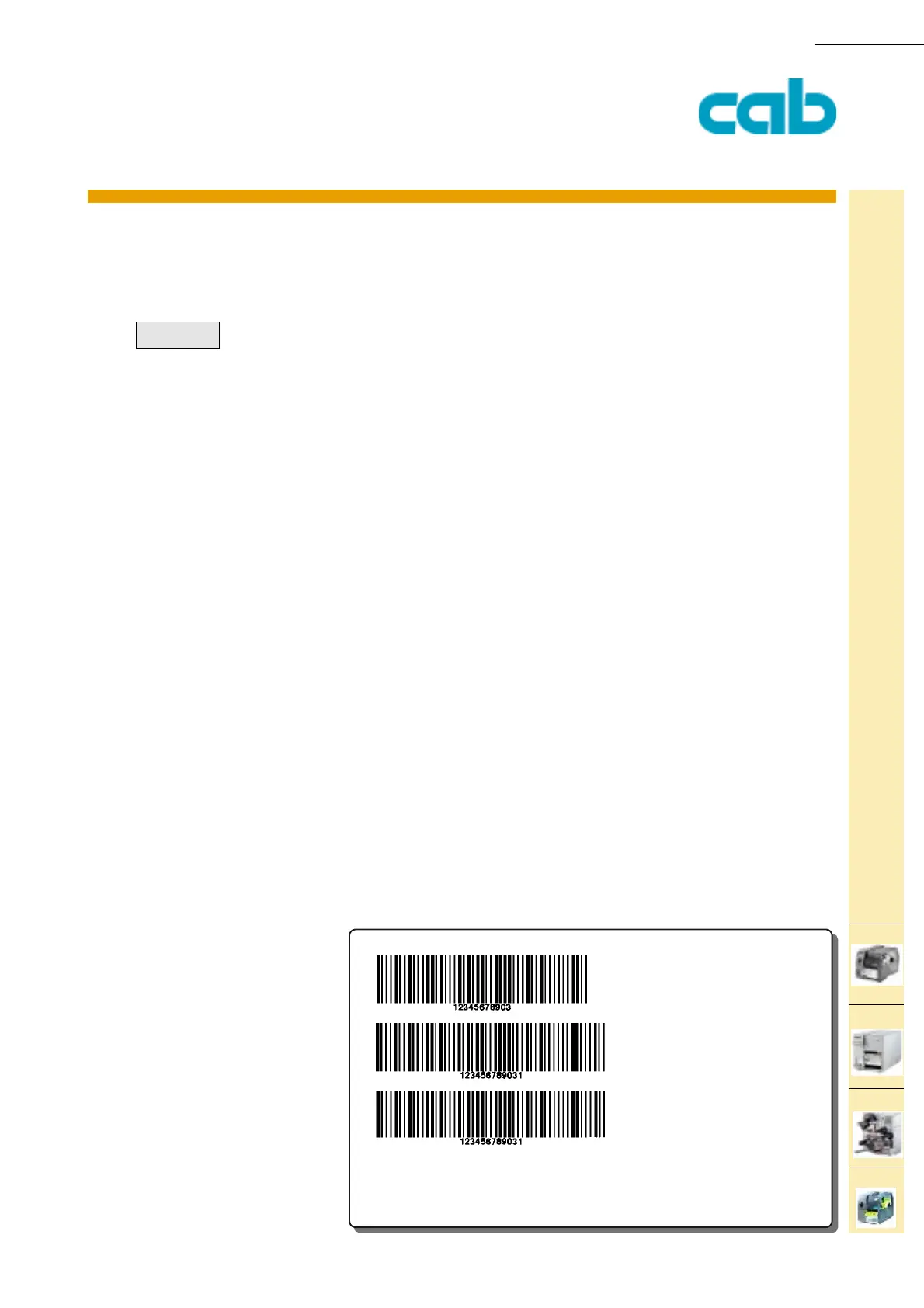

PRODUCT MARKING AND BARCODE IDENTIFICATION
M-series
B - Barcode
MSI (MSI Plessey)
J
S l1;0,0,68,71,100
B 5, 5,0,
MSI
,12, .3,2;1234567890
B 5,20,0,
MSI
+MOD10,12,.3,2;1234567890
B 5,35,0,
MSI
+MOD11,12,.3,2;1234567890
A 1
Example:
114
116
Table of Contents
