2.13.11. Input Multiplexer Set register
(Base Address + 0x0B, D16, read/write)
This register allows to set the IN_0 and IN_1 polarity as well as the source of
Pulsers/Scaler Signals: 1 = set; 0 = leave previous setting

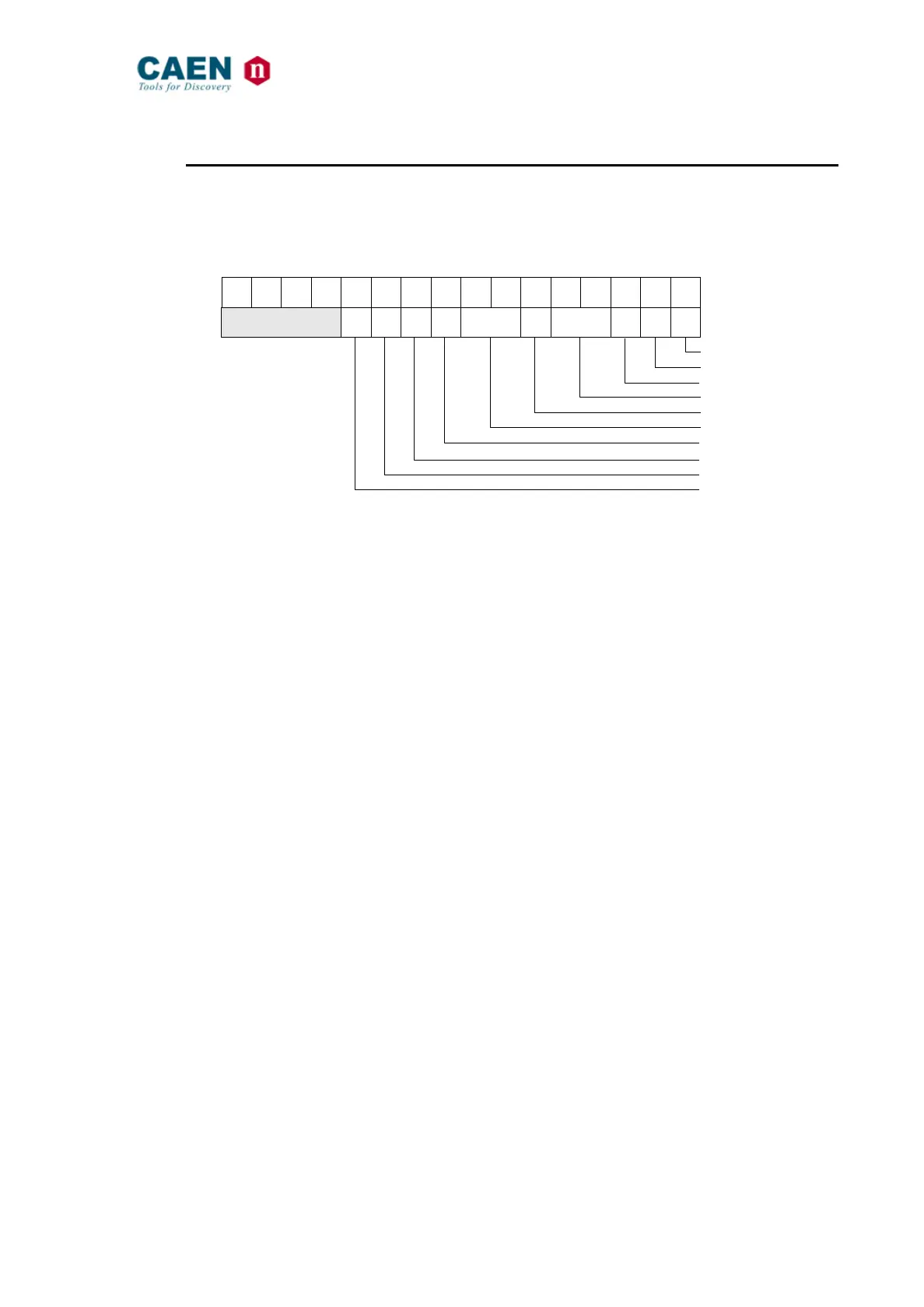

Fig. 14: Input Multiplexer register
INPUT POLARITY: 0 = Direct
1 = Inverted
PULSER START SOURCE: 00 = SYSRES Button (short pressure) or Software
01 = IN_0
10 = IN_1
11 = IN_0 OR IN_1
PULSER A RESET SOURCE: 0 = Output register
1 = Input 0
PULSER B RESET SOURCE: 0 = Output register
1 = Input 1
SCALER GATE SOURCE: 0 = Output register
1 = Input 1
SCALER HIT SOURCE: 0 = Output register
1 = Input 0
SCALER RESET SOURCE: 0 = Output register
1 = Input 1
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
IN0_POL
IN0_OR_IN1_POL
PLSA_START_SOURCE
IN1_POL
PLSA_RES_SOURCE
PLSB_START_SOURCE
PLSA_RES_SOURC
E
SCR_GATE_SOURCE
SCR_HIT_SOURCE
SCR_RES_SOURCE
