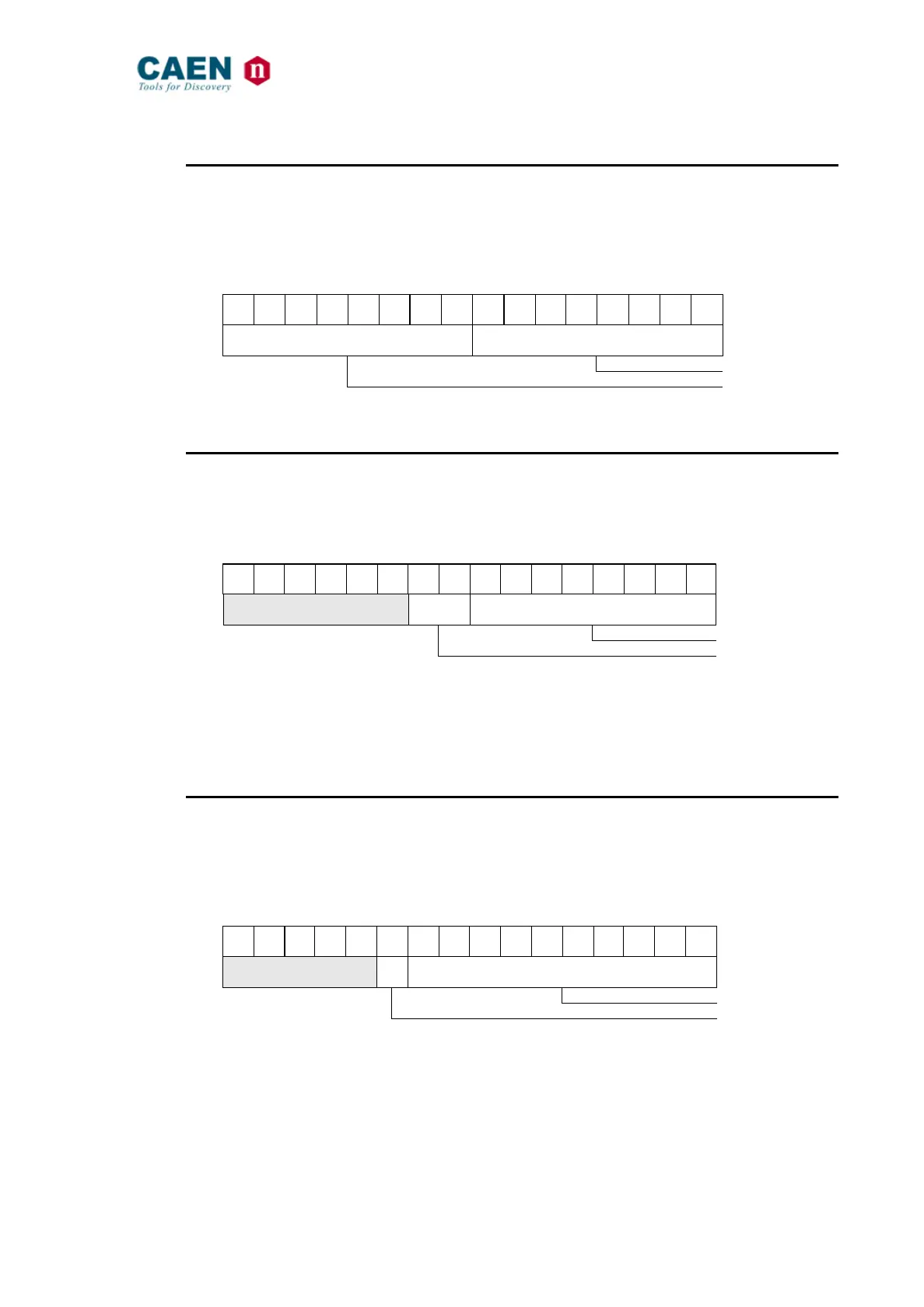

2.13.19. Pulser B 0 register
(Base Address + 0x19, D16, read/write)
This register allows to set the period and width of the relevant Pulser, measured in range
steps (see § 2.13.20).
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
PERIOD
WIDTH
Fig. 22: Pulser B 0 register
2.13.20. Pulser B 1 register
(Base Address + 0x1A, D16, read/write)
This register allows to set the number of pulses and the range of the relevant Pulser.
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
NUM_PULSES
RANGE
Fig. 23: Pulser B 1 register
RANGE: 00 → 25 ns
01 → 1.6 µs
10 → 400 µs
11 → 104 ms
2.13.21. Scaler 0 register
(Base Address + 0x1C, D16, read/write)
This register allows to set the Scaler END_COUNT_LIMIT and to enable the
AUTO_RESET option (1 = enabled).
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
END_COUNT_LIMIT
AUTO_RES
Fig. 24: Scaler 0 register
