Caen V2718 - Input Multiplexer Clear Register; Fig. 15: Input Multiplexer Register

79 pages

Save Page as PDF

To Next Page

To Previous Page

Document type:

Title:

Revision date:

Revision:

User's Manual (MUT)

Mod. V2718 VME PCI Optical Link Bridge

03/07/2018

NPO:

Filename:

Number of pages:

Page:

00106/03:V2718.MUTx/11

V2718_REV11.DOC

2.13.12. Input Multiplexer Clear register

(Base Address + 0x11, D16, write only)

This register allows to clear the Input Multiplexer settings (1 = Clear, 0 = leave previous

setting).

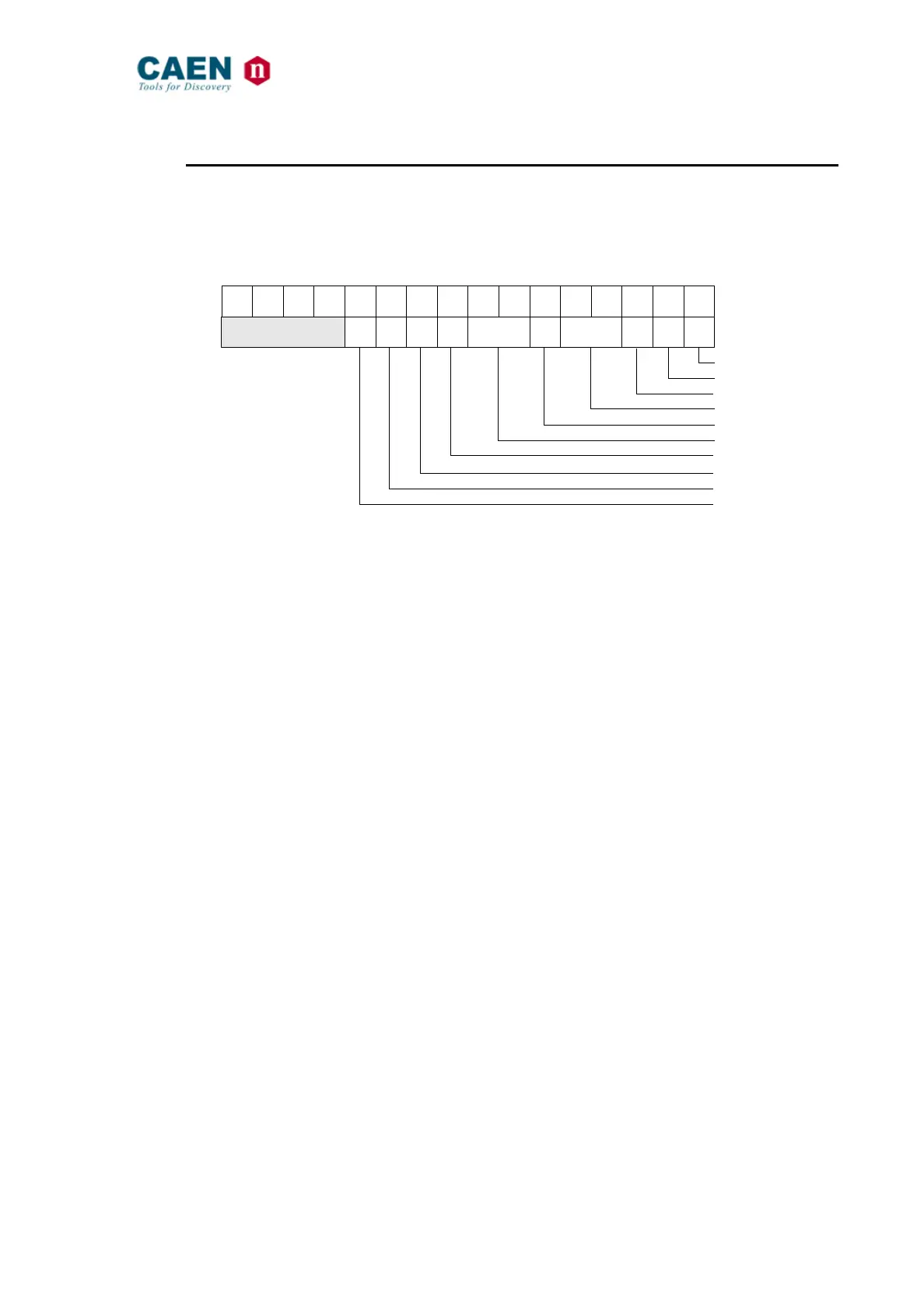

Fig. 15: Input Multiplexer register

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

IN0_POL

IN0_OR_IN1_POL

PLSA_START_SOURCE

IN1_POL

PLSA_RES_SOURCE

PLSB_START_SOURCE

PLSA_RES_SOURC

SCR_GATE_SOURCE

SCR_HIT_SOURCE

SCR_RES_SOURCE
