2.13.16. LED polarity clear register
(Base Address + 0x13, D16, write only)
This register allows to clear the LED polarity set via the LED Polarity set register
(1 = Clear, 0 = leave previous setting).

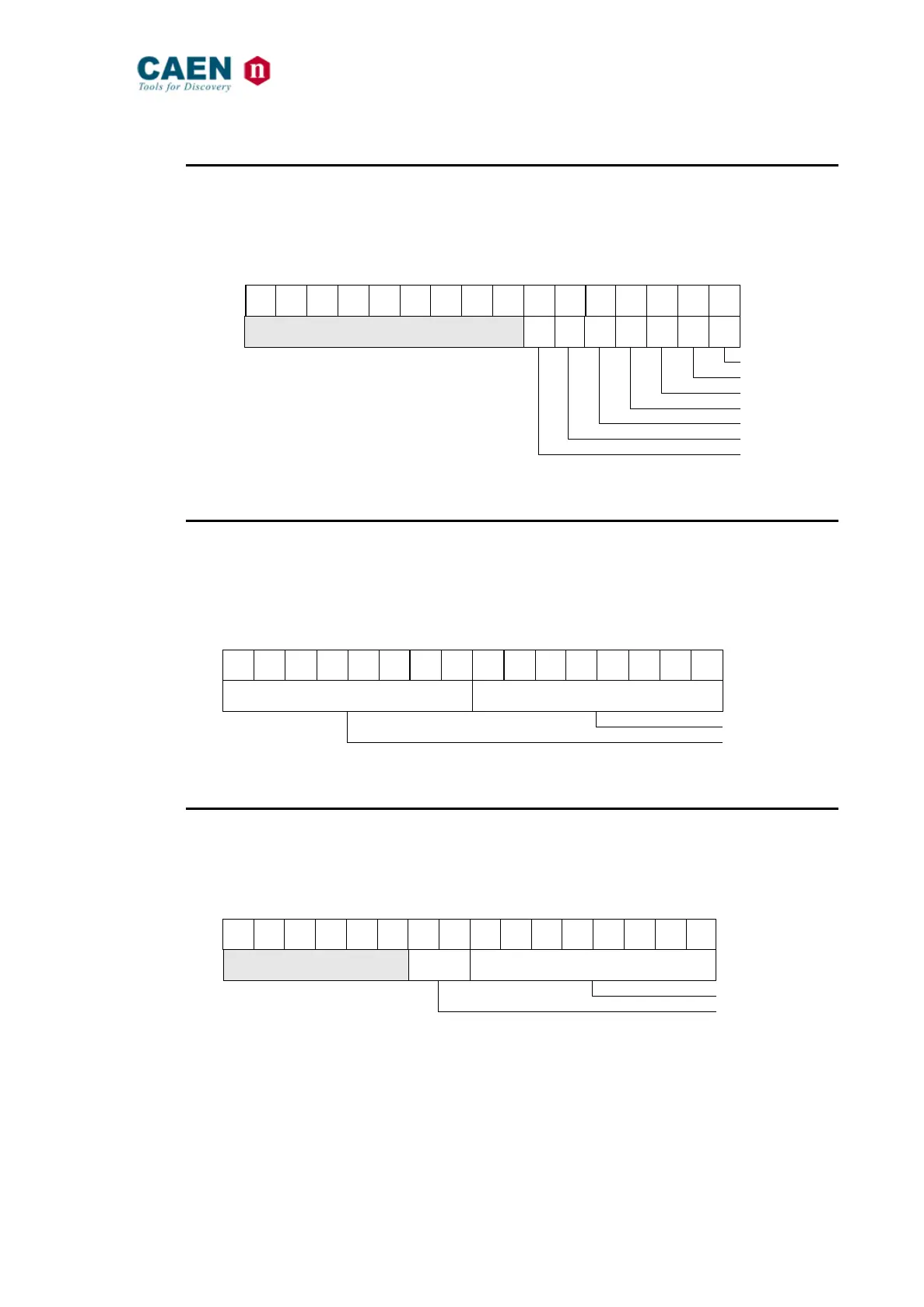

Fig. 19: LED polarity clear register
2.13.17. Pulser A 0 register
(Base Address + 0x16, D16, read/write)
This register allows to set the period and width of the relevant Pulser, measured in range
steps (see § 2.13.18).
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
PERIOD
WIDTH
Fig. 20: Pulser A 0 register
2.13.18. Pulser A 1 register
(Base Address + 0x17, D17, read/write)
This register allows to set the number of pulses and the range of the relevant Pulser.
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
NUM_PULSES
RANGE
Fig. 21: Pulser A 1 register
RANGE: 00 → 25 ns
01 → 1.6 µs
10 → 400 µs
11 → 104 ms
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
OUT_0
OUT_1
OUT_2
OUT_3
OUT_4
IN_0
IN_1
