p. 14 - Manual FA01274-EN - 11/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. Original instructions

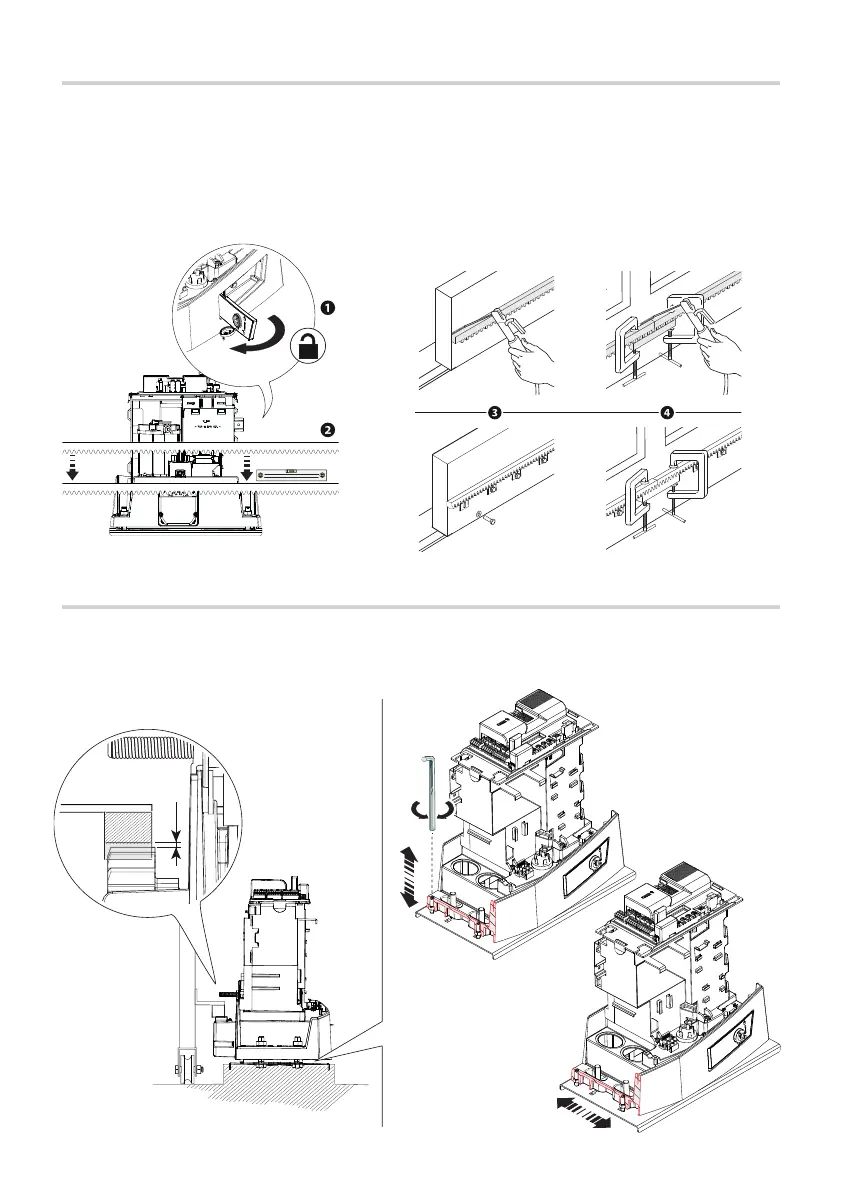

Fastening the rack
If the rack is already set up, the next step should be to adjust the rack-and-pinion coupling distance,
otherwise, fasten it:
- release the operator ;
- rest the rack above the operator pinion ;
- either weld or fasten the rack along the entire length of the gate .
To assemble the rack modules, use an extra piece and rest it under the joint, then fasten it using two
clamps.
Adjusting the pinion-rack coupling
Manually open and close the gate and adjust the pinion-rack coupling distance using the threaded feet (vertical
adjustment) and the holes (horizontal adjustment).
The weight of the gate must not bear down upon the operator
