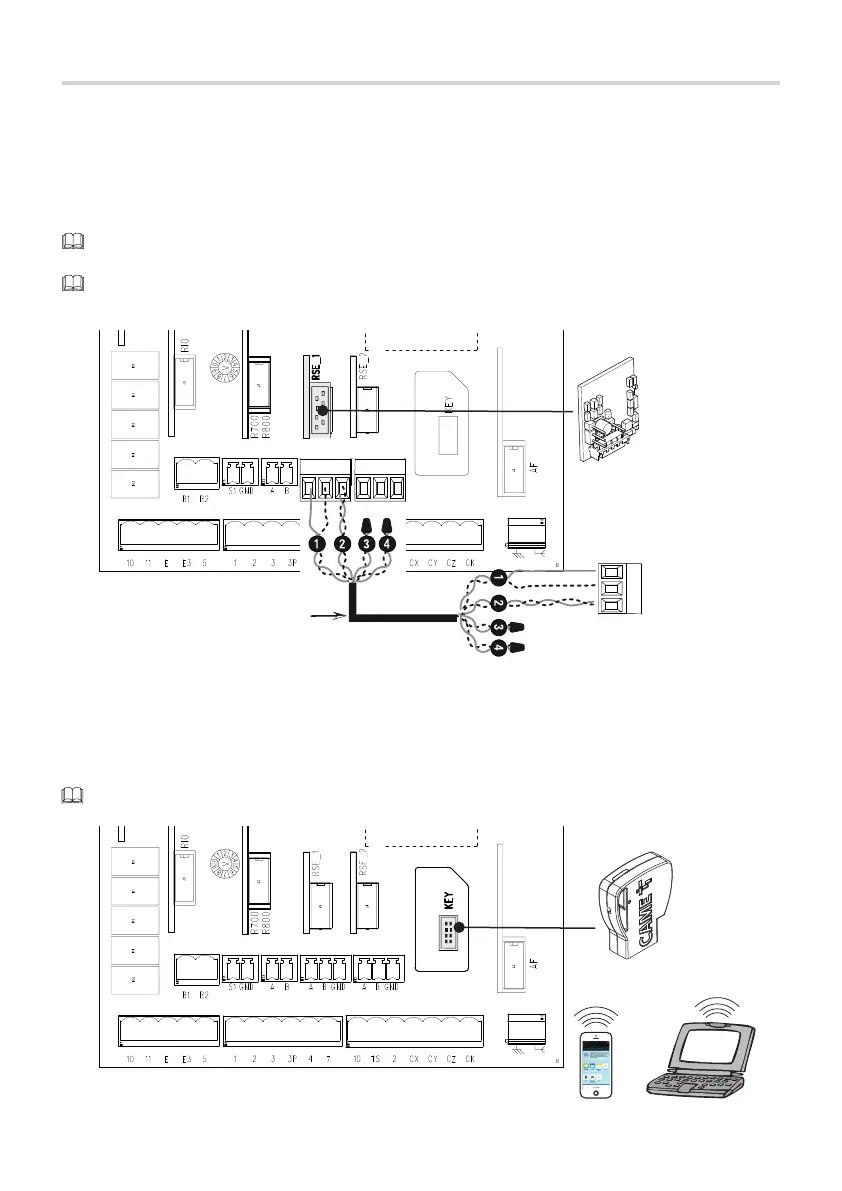

Onsite connection
Fit the CAME KEY into the corresponding connector on the control board.
Download and confi gure the CAME SetUp app on a PC, Tablet or Smartphone.
For greater details, see CAME KEY manual.
CRP-based connection system
It is for controlling and confi guring the system from either a remote or an onsite connection.
Remote connection
Connectthe RGSM or UR042 module to the control board using a CAT 5 (max 1000 m) cable to terminals A-A /
B-B / GND-GND.
Plug the RSE card into the RSE_1 connector of the control board.
Confi gure the RSE_1 port when programming.
If an RSE card - confi gured for combined connections - is plugged into the RSE_1 connector, use the RSE_2
connector. In this case, the onsite connection with CAME KEY is excluded.
For additional details, see the folder that comes with the module.
