CAME BKV Series User Manual

MEMORY ROLL
A B GND
UTP CAT 5
RSE
A B GND
RSE
A B GND
A B GND
MASTER
SLAVE
p. 26 - Manual FA01274-EN - 11/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. Original instructions

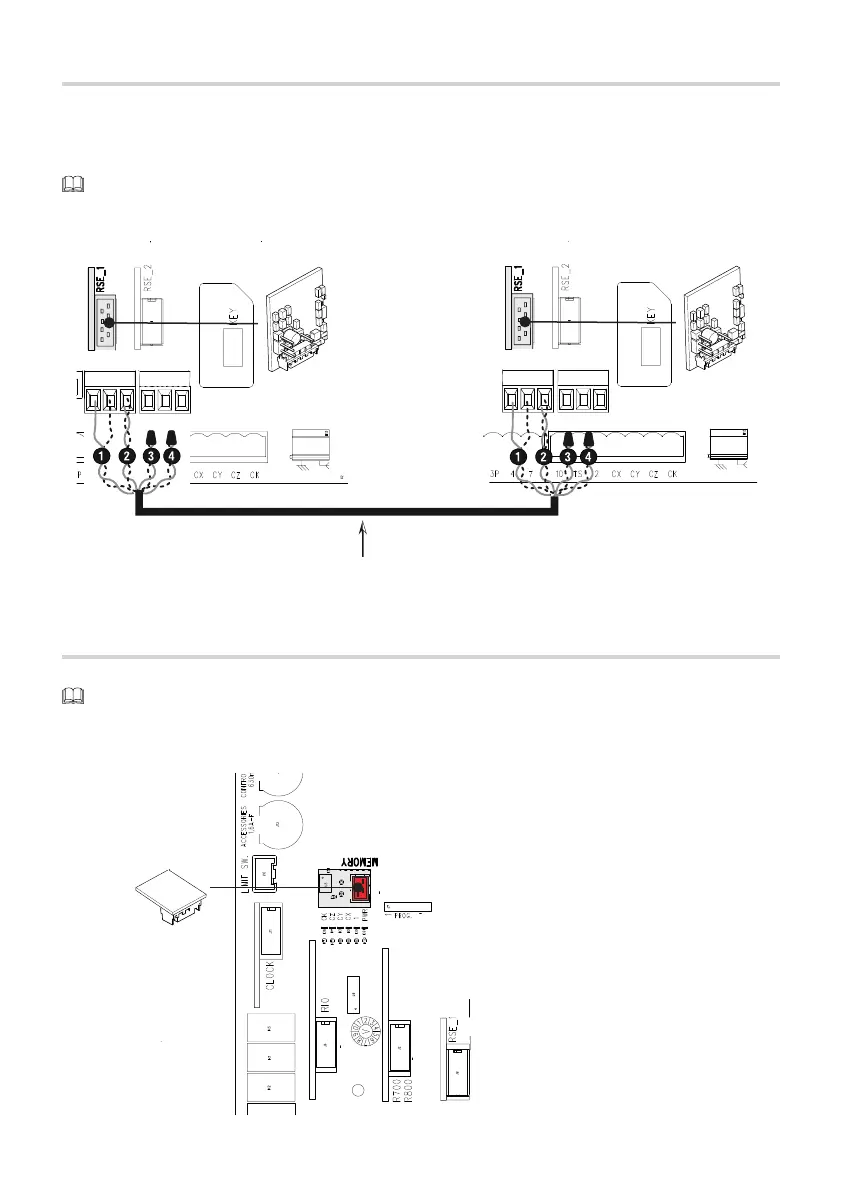

Combined connection
Connecting two operators with a single control.
Connectthe two control boards by using a CAT 5 (max 1.000 m) cable to terminals A-A / B-B / GND-GND.
Plug the RSE card into the RSE_1 connector on the control board of both operators.
Confi gure the RSE_1 port as [Combined] when programming the MASTER control board.
For additional details, see the chapter called COMBINED OPERATION.
Memory Roll
It is for saving user data, time settings and system confi guration, and reuse them with another control board.
For more details, see the chapter called SAVING AND UPLOADING DATA USING THE MEMORY ROLL.
