TX 2
-
+
-
DELTA-S
10 TS 2 CX CY CZ CK
DIR TX 210 2 TX C NC
TX 2
DELTA
10 11
10 11 NO C NC
10 TS 2 CX CY CZ CK
+
-
TX 2
DELTA
10 11
10 TS 2 CX CY CZ CK
+
-
10 11 NO C NC
TX 2
-
+
-
DELTA-S
10 TS 2 CX CY CZ CK
DIR TX 210 2 TX C NC
p. 22 - Manual FA01274-EN - 11/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. Original instructions

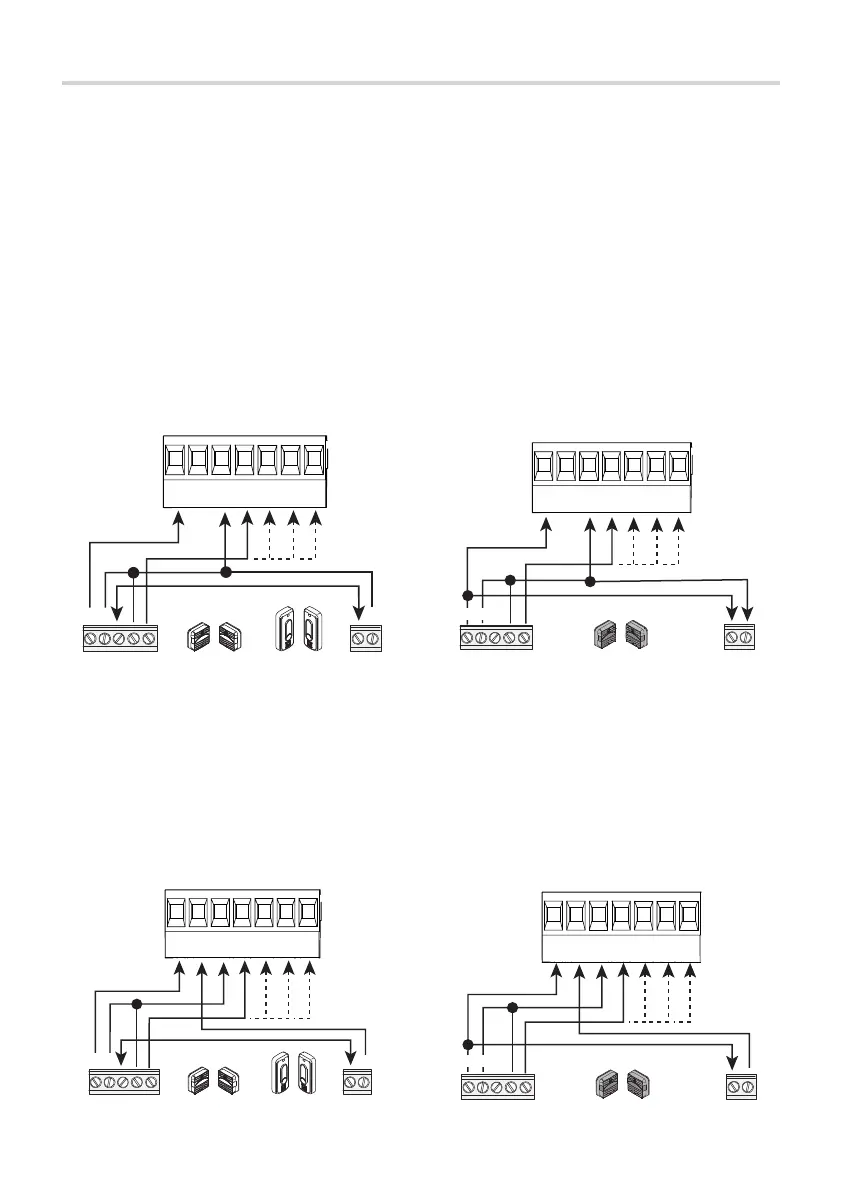

Photocells safety test
At each opening and closing command, the control board checks the efficacy of the safety devices (such as,
photocells).
A malfunction will prevent any command from working and
the display will read [Services test failed]
Enable the [Safety devices test] function when programming.
Safety devices
Photocells
Confi gure contact CX, CY, CZ or CK (NC), input for safety devices such as photocells as:
- [C1]reopening during closing. When the gate is closing, opening the contact causes the inversion of movement
until opening is complete;
- [C2]reclosing during opening. When the gate is opening, opening the contact triggers the inversion of movement
until the gate is completely closed.
- [C3]partial stop. Stopping of the gate, if it is moving, with consequent automatic closing (if the automatic closing
function has been entered);
- [C4]obstruction wait. Stopping of the gate, if it is moving, which resumes movement once the obstruction is
removed.
- [C13] reopening when closing with immediate reclosing once the obstruction is removed even when the gate
is stopped.
If contacts CX, CY, CZ or CK unused, turn them o when programming.
