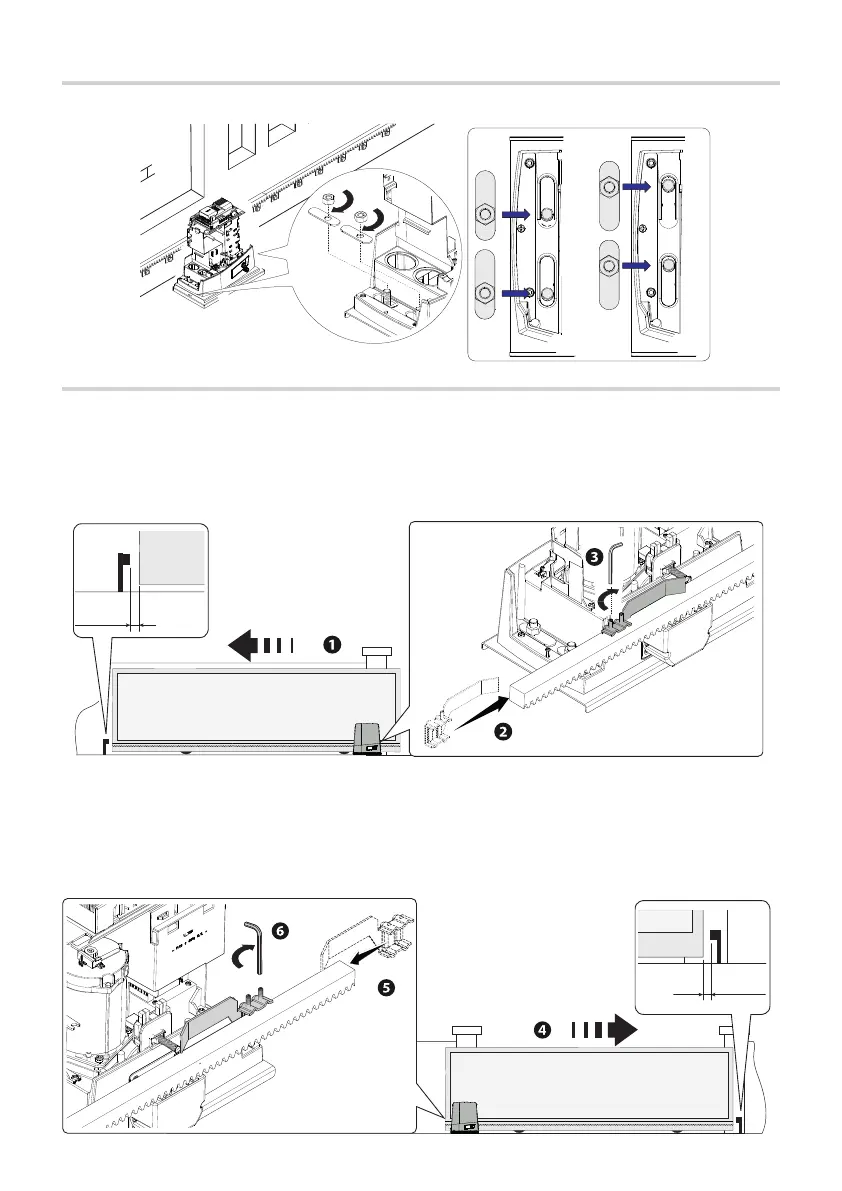

Fastening the operator
Complete the adjusting, fasten the gearmotor to the plate using the washers and nuts.
For closing:
- close the gate ;
- fi t the closing limit-switch fi n into the rack until the micro-switch is activated (spring) and fasten it using the
grub screws .
Establishing the limit-switch points
Mechanical limit-switches
For opening:
- open the gate ;
- fi t the opening limit-switch fi n onto the rack until the micro switch activates (spring) and fasten it using the
grub screws .
