CLOCK
+
p. 8 - Manual FA01274-EN - 11/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. Original instructions

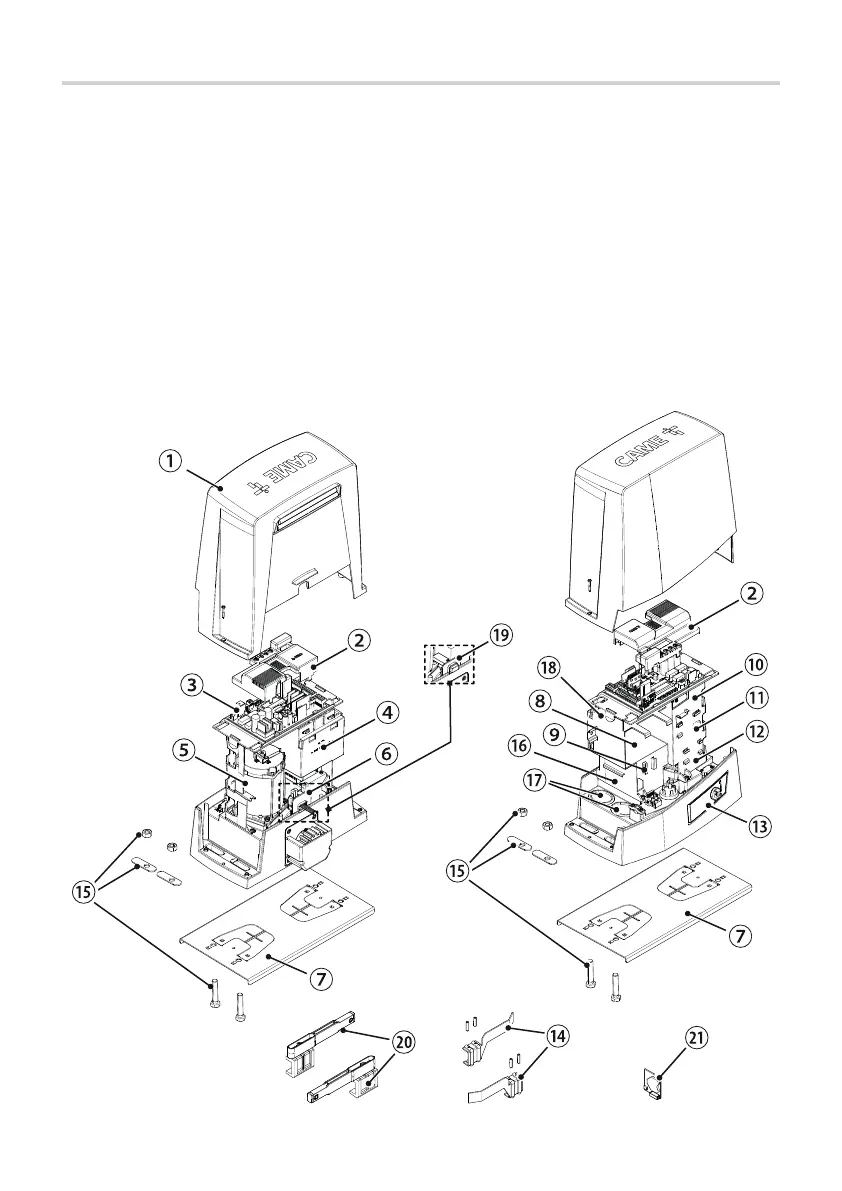

Description of parts
1. Cover
2. Board protecting cover
3. Control board
4. Board-fi tting support
5. Gear motor
6. Mechanical limit switch
7. Anchoring plate
8. Housing for two emergency batteries
9. Housing for thermostat with cartridge
10. Housing for the RGSM001 module
11. Housing for the LBB batteries
12. Housing for the RGP1 module
13. Release lever
14. Limit-switch fi ns
15. Small hardware
16. Housing for UR042 module
17. Holes for the electrical cables to run through
18. Housing for the SMA module
19. Magnetic sensor *
20. Magnetic limit-switch tabs *
21. CLOCK board *
* Only for BKV15AGE, BKV20AGE and BKV25AGE
