MASTER SLAVE
MASTER SLAVE
MASTER SLAVE
p. 47 - Manual FA01274-EN - 11/2018 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. Original instructions
For the types of commands you can select and combined with users, see the MANAGE USERS paragraph.
PARTIAL OPENING command. Only the leaf on the MASTER operator opens until it reaches the partially open
point programmed in [Set up gate travel].

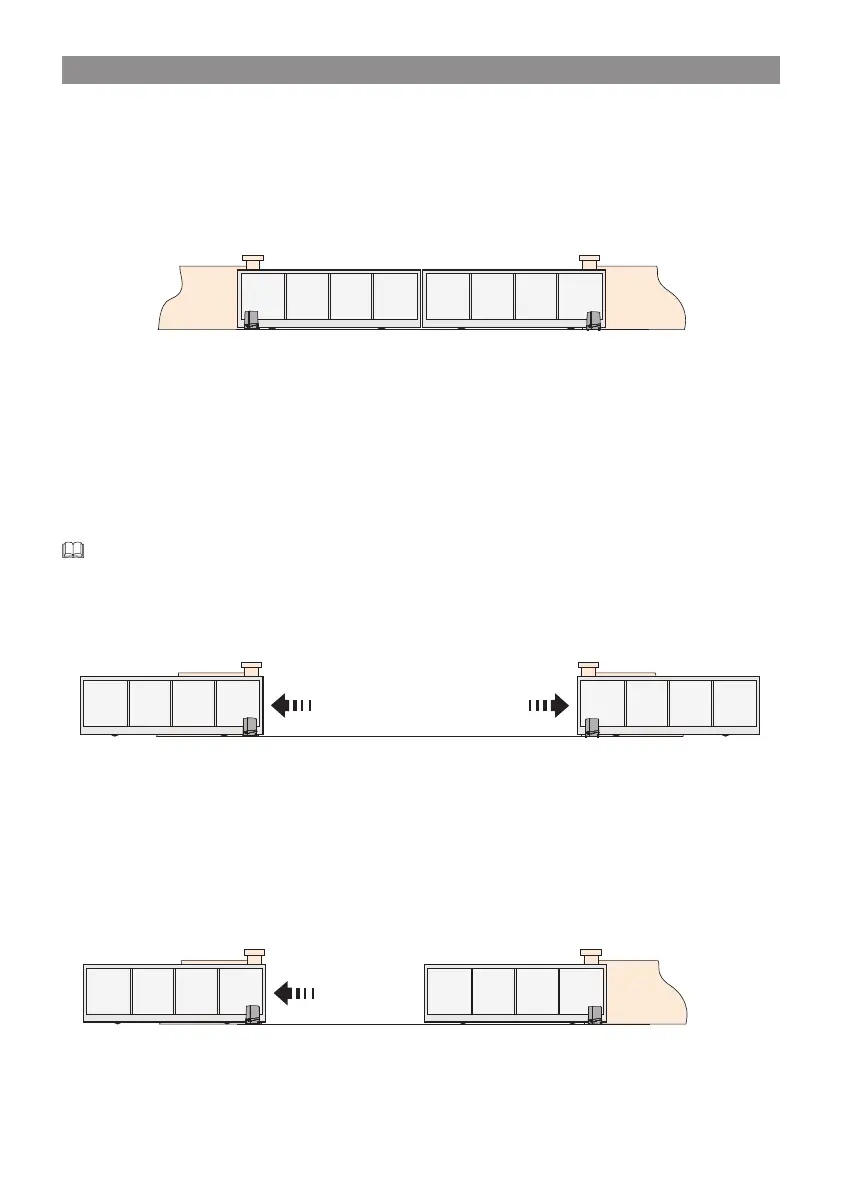

COMBINED FUNCTION
Electrical wiring
Plug the RSE card into the RSE_1 connector on the control board of both operators.
Connectthe two control boards by way of a CAT 5 (max. 1000 m) cable onto terminals A-A / B-B / GND-GND.
Connect all the control, safety devices and cards, such as the R700, AF, and so on, only on the MASTER control
board.
Saving users
Only perform the enter-user procedure on the MASTER control board.
Programming
On the MASTER control board, select the [Combined] system type when following the guided procedure, or
confi gure the RSE1 port to [Combined] mode.
After programming the MASTER in [Combined] mode, the second operator automatically becomes the SLAVE,
and the programming keys are disabled.
Operating modes
Either STEP-STEP or ONLY OPEN command.
Both leaves open.
