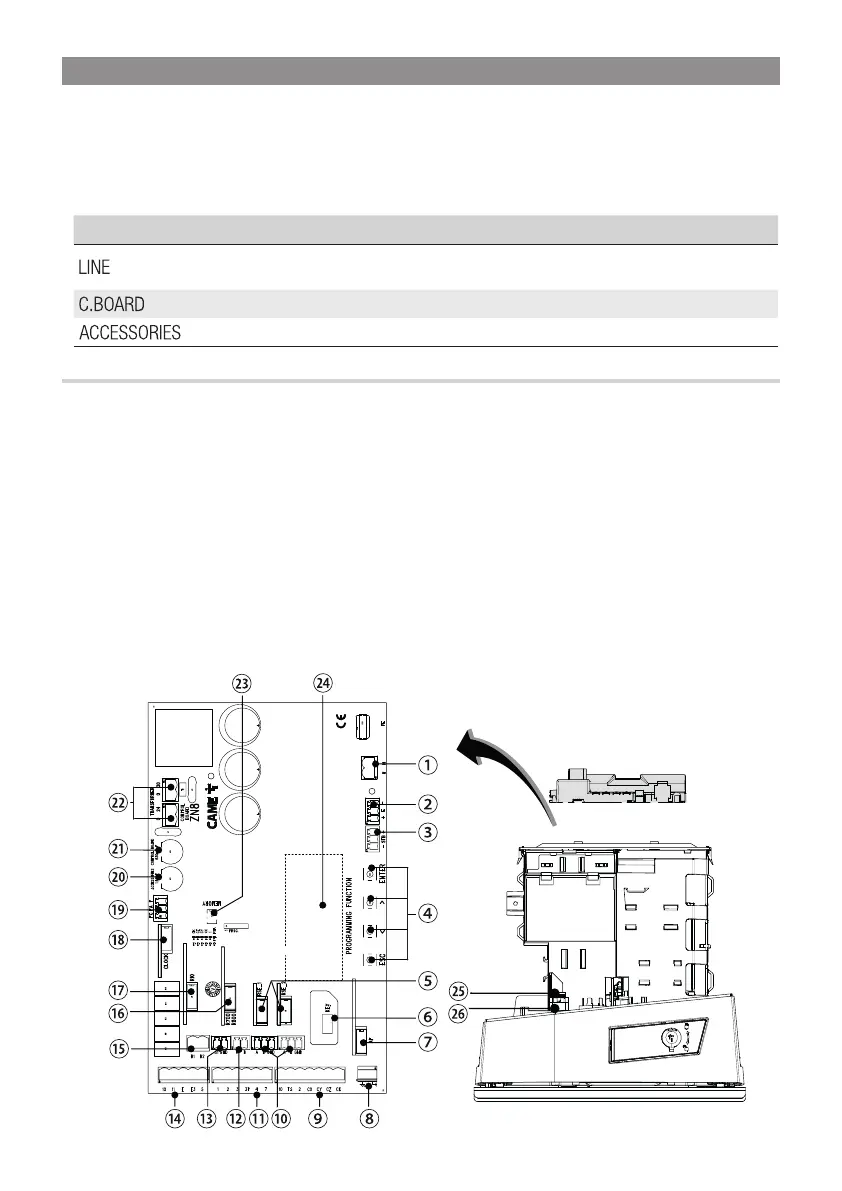

Description of parts
1. Gear motor terminals
2. Terminals for encoders
3. Terminals for the RGP1 module and the LBB battery charger
4. Programming buttons
5. RSE card slot
6. Connector for CAME KEY
7. AF card slot
8. Antenna terminal
9. Terminals for safety devices
10. Terminals for combined or CRP connection
11. Command and control devices terminals
12. Keypad selector terminal
13. Terminal board for transponder selector
14. Terminals for signaling devices
15. B1-B2 terminals
16. R700/R800 card connector
17. Connector for the RIOCN8WS module
18. Connector for the SIPA06 card
19. Limit-switch terminals
20. Accessories fuse
21. Control-board fuse
22. Transformer terminals
23. Memory Roll card connector
24. Display
25. Line fuse
26. Power supply terminal board
CONTROL BOARD
⚠
Caution! Before doing any work on the control board, cut off the mains power supply, and disconnect any
batteries.
The functions on the input and output contacts, the time settings and user management, are set and viewed on the
graphic display.
All wiring connections are quick-fuse protected.
Fuses ZN8
- Line
2 A-F (230 V AC)
4 A-F (120 V AC)
- Card
630 mA-F
- Accessories
1.6 A-F
