cables must run through the cable glands and must not touch any heated parts, such as
the motor, transformer, and so on). • Make sure you have set up a suitable dual pole cut
o device along the power supply that is compliant with the installation rules. It should
completely cut o the power supply according to category III surcharge conditions. •
All opening controls must be installed at least 1.85 m from the perimeter of the gate's
working area, or where they cannot be reached from outside the gate. • All switches in
maintained action mode must be positioned so that the moving gates leaves, the transit
areas and vehicle thru-ways are completely visible, and yet the switches must be also
away from any moving parts • Unless the action is key operated, the control devices must
be fi tted at, at least, 1.5 m from the ground and must not be accessible to the public. •
To pass the collision force test use a suitable sensitive safety-edge. Install it properly and
adjust as needed. • Before handing over to users, check that the system is compliant with
the 2006/42/CE uniformed Machinery Directive Make sure the settings on the operator
are all suitable and that any safety and protection devices, and also the manual release,
work properly. • A x a permanent tag, that describes how to use the manual release
mechanism, close to the mechanism. • Make sure to hand over to the end user, all ope-
rating manuals for the products that make up the fi nal machinery • If hoisting manually,
have one person for every 20 kg that need hoisting; otherwise use proper hoisting and
moving equipment.

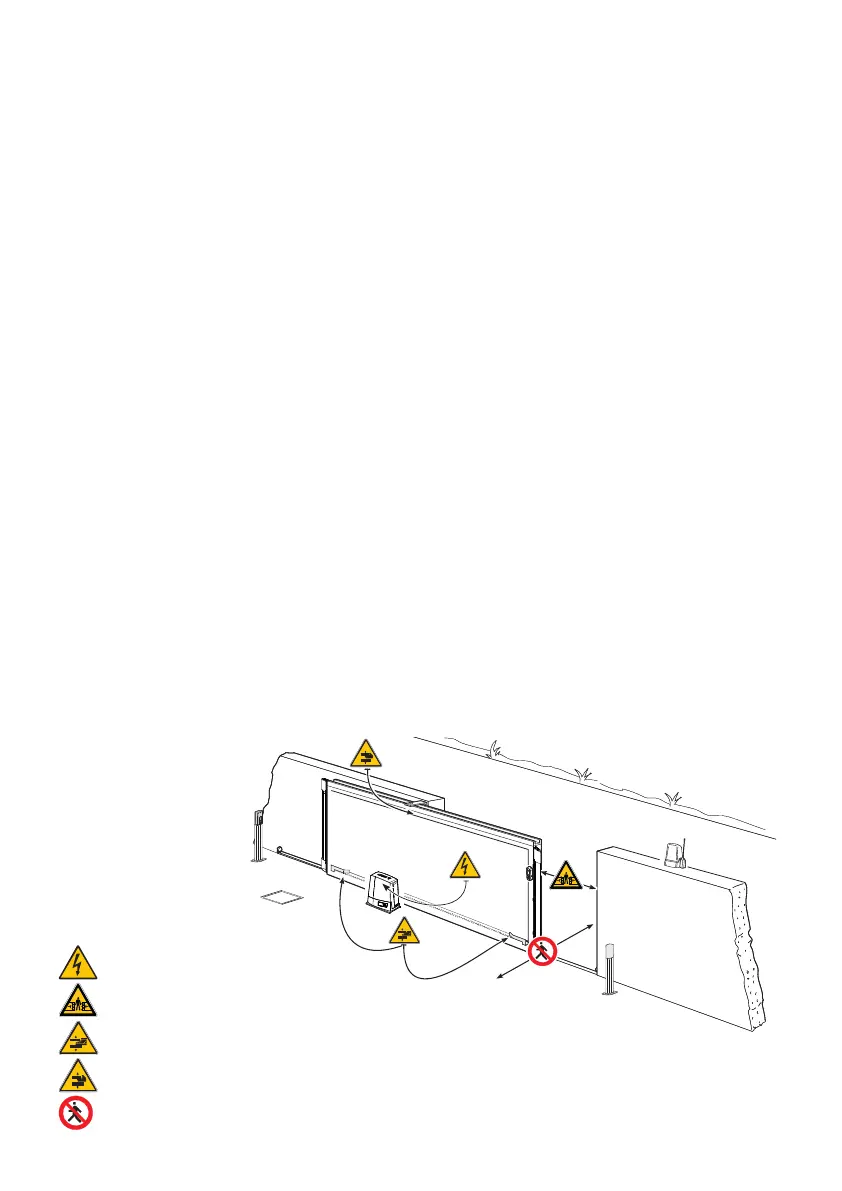

The next fi gure shows the main hazard points for people.
Danger of high voltage;
Danger of crushing;
Danger of foot crushing;
Danger of hand entrapment;
Do not transit through during maneuvering.
