Canon imagePROGRAF iPF830 User Manual

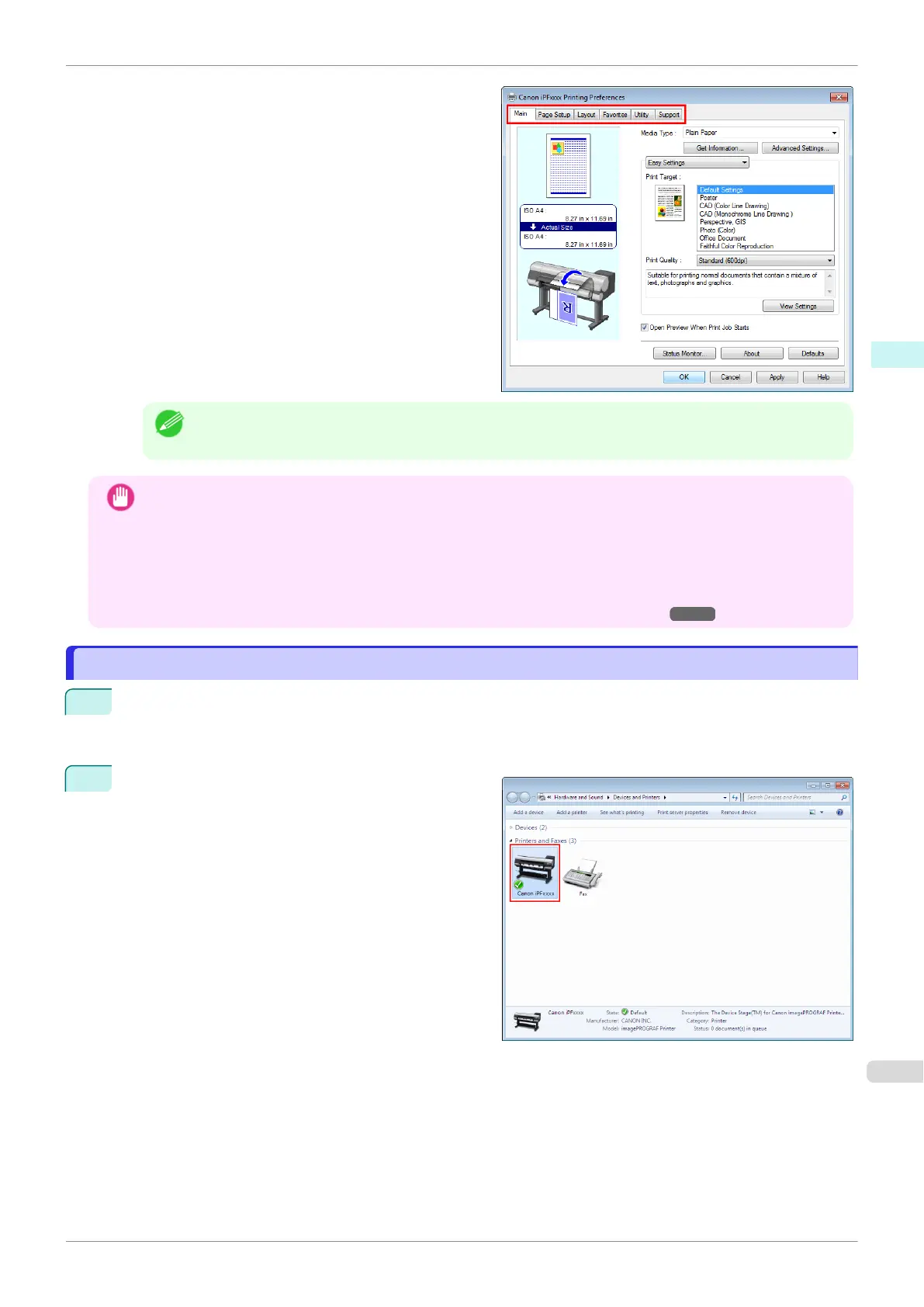

Six sheets of print settings are displayed by the print-
er driver: Main, Page Setup, Layout, Favorites,
Utility, and Support.
Note
• The titles of dialog boxes may vary depending on the application, and sheets other than these six sheets
may be displayed.
Important
• If you access the printer driver dialog box from the source application, changes you make to the settings will only
apply temporarily to that application. Because these are sizes you specify temporarily in the printer driver, the
sizes will not be available after you exit the application.
• You can also access the printer driver dialog box from the Windows system menu.
To use the settings continuously in all applications, open the printer driver from the system menu to make the
settings.
(See "Accessing the Printer Driver Dialog Box from the Operating System Menu .") ➔P.153
Accessing the Printer Driver Dialog Box from the Operating System Menu
Accessing the Printer Driver Dialog Box from the Operating System Menu
1 Open the folder of the OS you are using for configuring printers.
For example, on Windows 7, click the start button on the Desktop and open the Devices and Printers
window.
2
Right-click the icon of this printer and choose Printer
Properties to open the printer properties window.
iPF830 Accessing the Printer Driver Dialog Box from the Operating System Menu
User's Guide
Windows Software Printer Driver
153

Canon imagePROGRAF iPF830 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Minimum line width	0.02 mm
Number of power supply units	1
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Media thickness	0.07 - 0.8 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	1117.6 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
JIS B-series sizes (B0...B9)	B0, B2
Display	LCD
Product color	Black, Grey
Storage media	HDD
Internal storage capacity	320 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Power supply	190 W
Power consumption (off)	0.5 W
Power consumption (standby)	5 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	975 mm
Width	1893 mm
Height	1144 mm
