3
On the Tab Selection screen of the Control Panel, press or to
select the Settings/Adj. tab ( ).
Note
If the Tab Selection screen is not displayed, press the Menu button.
4
Press the OK button.
The Set./Adj. Menu is displayed.
5
Press or to select Take-up Reel, and then press the OK button.
6
Press or to select Use Take-up Reel, and then press the OK button.
7
Press or to select Disable, and then press the OK button.

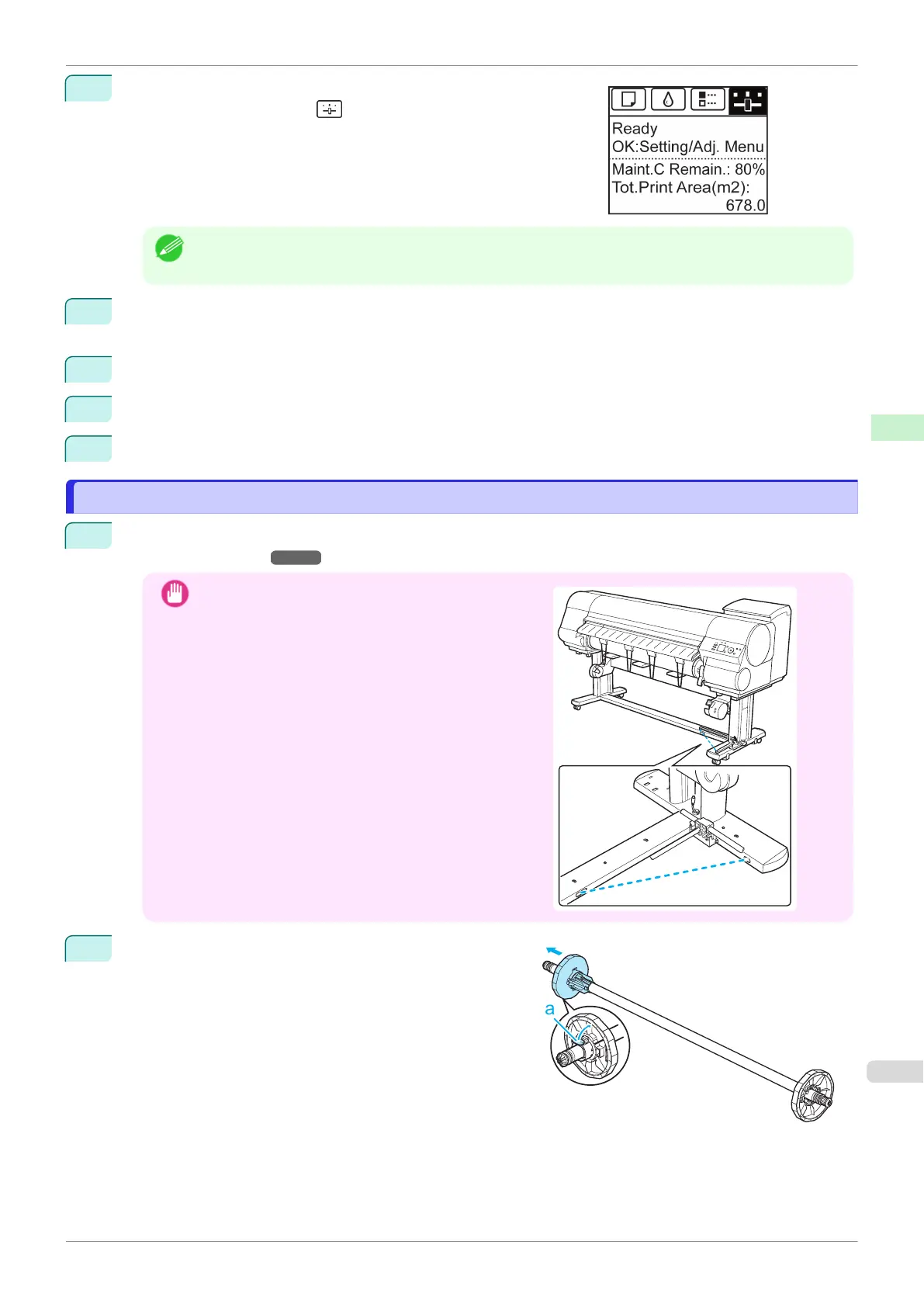

Loading the Rewind Spool on the Media Take-up Unit
Loading the Rewind Spool on the Media Take-up Unit
1
When using the Output Stacker, stow the Output Stacker before this procedure. (See "Stowing the Station-
ary Output Stacker.") P.360
Important
Position the Basket Cloth and Basket Rod so they do
not interfere with the Media Take-up Sensor (wave
portion). This may impair operation.
2
Unlock the flange on the left side of the Rewind Spool by
lifting the lever (a) from the shaft side. Remove the flange.
a
iPF830
Loading the Rewind Spool on the Media Take-up Unit
User's Guide
Handling and Use of Paper Media take-up unit
367
