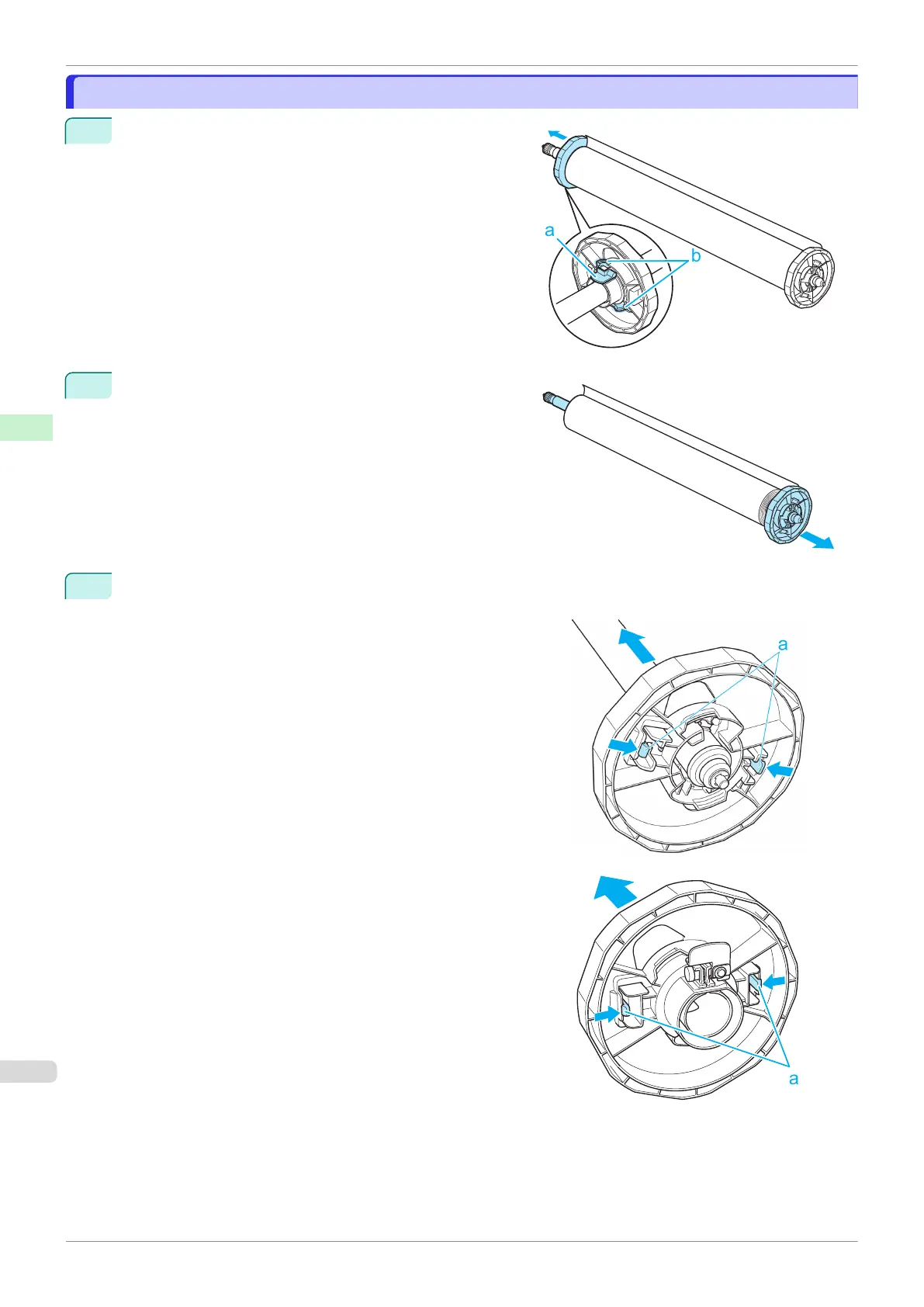

Removing the Roll Holder from Rolls
Removing the Roll Holder from Rolls
1
Lift the Holder Stopper lever (a) from the shaft side to un-
lock it. Holding the Holder Stopper at the position indicated
(b), remove it from the Roll Holder.
2
Remove the Roll Holder from the roll.
3 When removing attachments, push the tips (a) in as you remove the attachment.
•
3-Inch Paper Core Attachment #1 ( Roll Holder side)
•
3-Inch Paper Core Attachment #2 ( Holder Stopper side)
a
b
a
Removing the Roll Holder from Rolls iPF830
