Canon imagePROGRAF iPF830 User Manual

j Cutter Unit
A round-bladed cutter for automatic paper cutting.
k Linear Scale
The linear scale serves a key role in detecting the Carriage position. Be careful not to touch this part when
cleaning inside the Top Cover or clearing paper jams.
l Switch
Set the switch to the side opposite ● if the edges of printed images are blurred. Set the switch to the ● side
before borderless printing. (See "Setting the Blue Switch on the Platen.") ➔ P.623

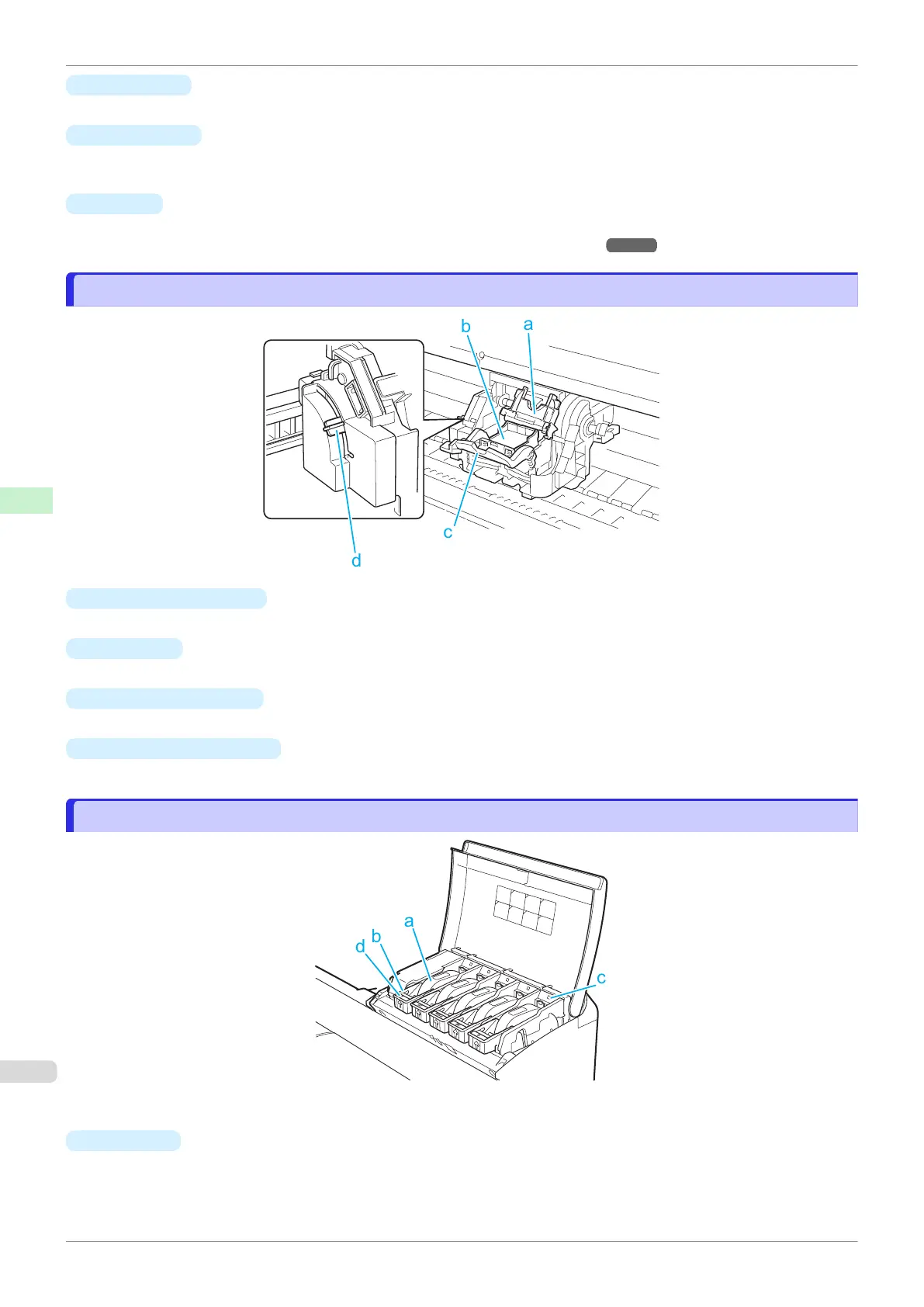

Carriage
Carriage
d
c
b
a
a Printhead Fixer Cover
Holds the Printhead in place.
b
Printhead
The printhead is equipped with ink nozzles. The carriage serves a key role in printing.
c Printhead Fixer Lever
Locks the Printhead Fixer Cover.
d Angle Adjustment Lever
Use this lever to fine-tune the printer to correct misalignment of printed lines.
Ink Tank Cover (Inside)
Ink Tank Cover (Inside)
M
B
K
B
K
B
G
Y
Y
d
c
b
a
Note: The figure shows the printer as loaded with 700 ml (23.7 fl oz) Ink Tank.
a Ink Tanks
Cartridges of ink in various colors.
Carriage
iPF830
User's Guide
Printer Parts Printer parts
466
