Canon imagePROGRAF iPF830 - Printer parts

Printer parts
Printer parts
Front .............................................................................................................................................................. 462
Back .............................................................................................................................................................. 464
Top Cover (Inside) ........................................................................................................................................... 465
Carriage ......................................................................................................................................................... 466
Ink Tank Cover (Inside) .................................................................................................................................... 466
Stationary Output Stacker .............................................................................................................................. 467
Media Take-up Unit(Optional) .......................................................................................................................... 468
Control Panel ..................................................................................................................................................422

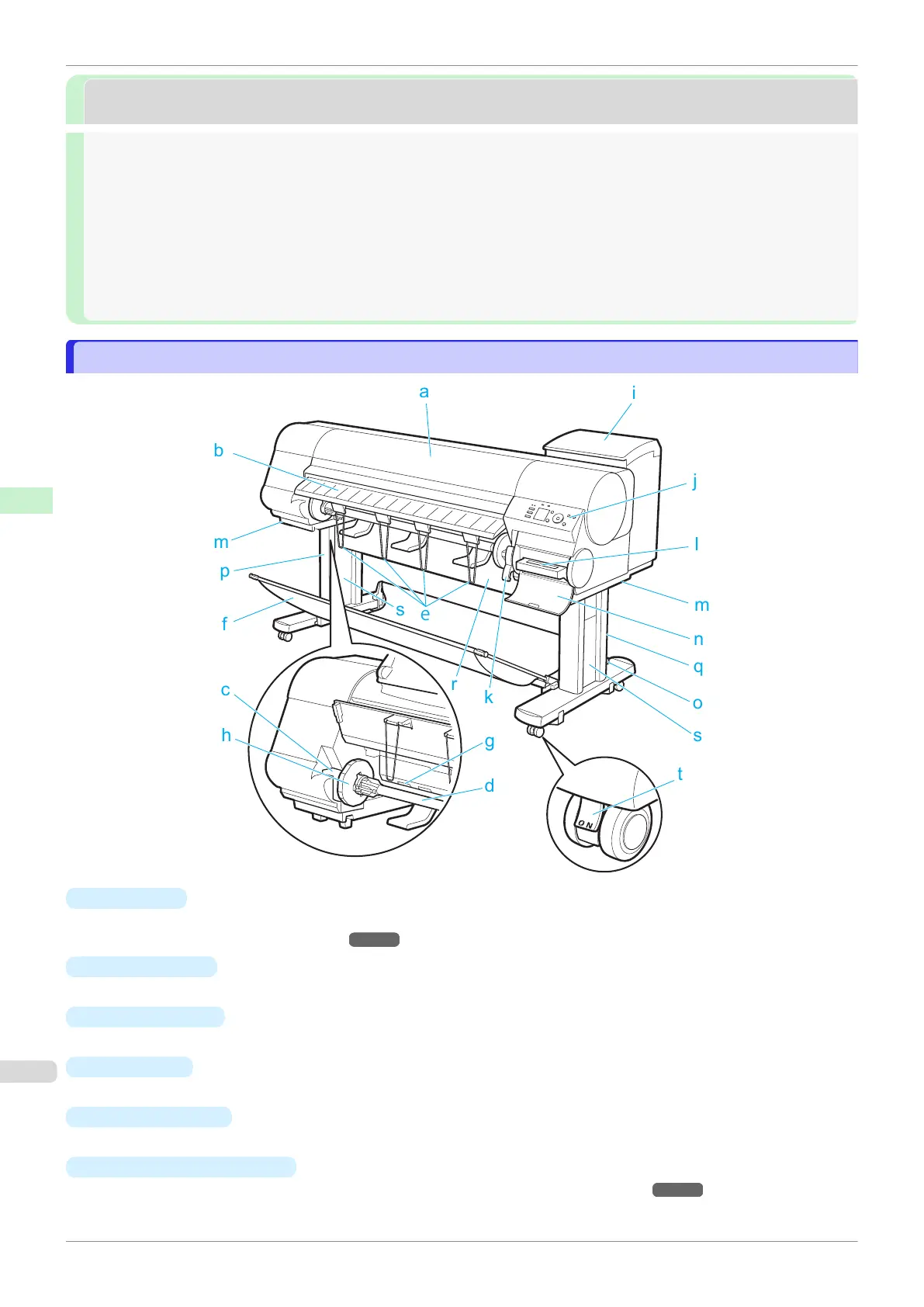

Front
Front
t
r
f
p
s
q
o
s
a
j
i
b
m
l
m
n
k
c
d
g
h
e
a
Top Cover
Open this cover to install the Printhead, load paper, and remove any jammed paper from inside the printer as
needed. (See "Top Cover (Inside).") ➔P.465
b Ejection Guide
Guides printed documents as they are ejected. Open this guide when loading a roll.
c
Roll Holder Slot
Slide the Roll Holder into this slot.
d Roll Holder
Load the roll on this holder.
e Ejection Support
Prevents printed documents from winding around the Roll Holder or being drawn into the Paper Feed Slot.
f
Stationary Output Stacker
A cloth tray that catches ejected documents. (See "Stationary Output Stacker.") ➔ P.467
Front
iPF830
User's Guide
Printer Parts Printer parts
462
