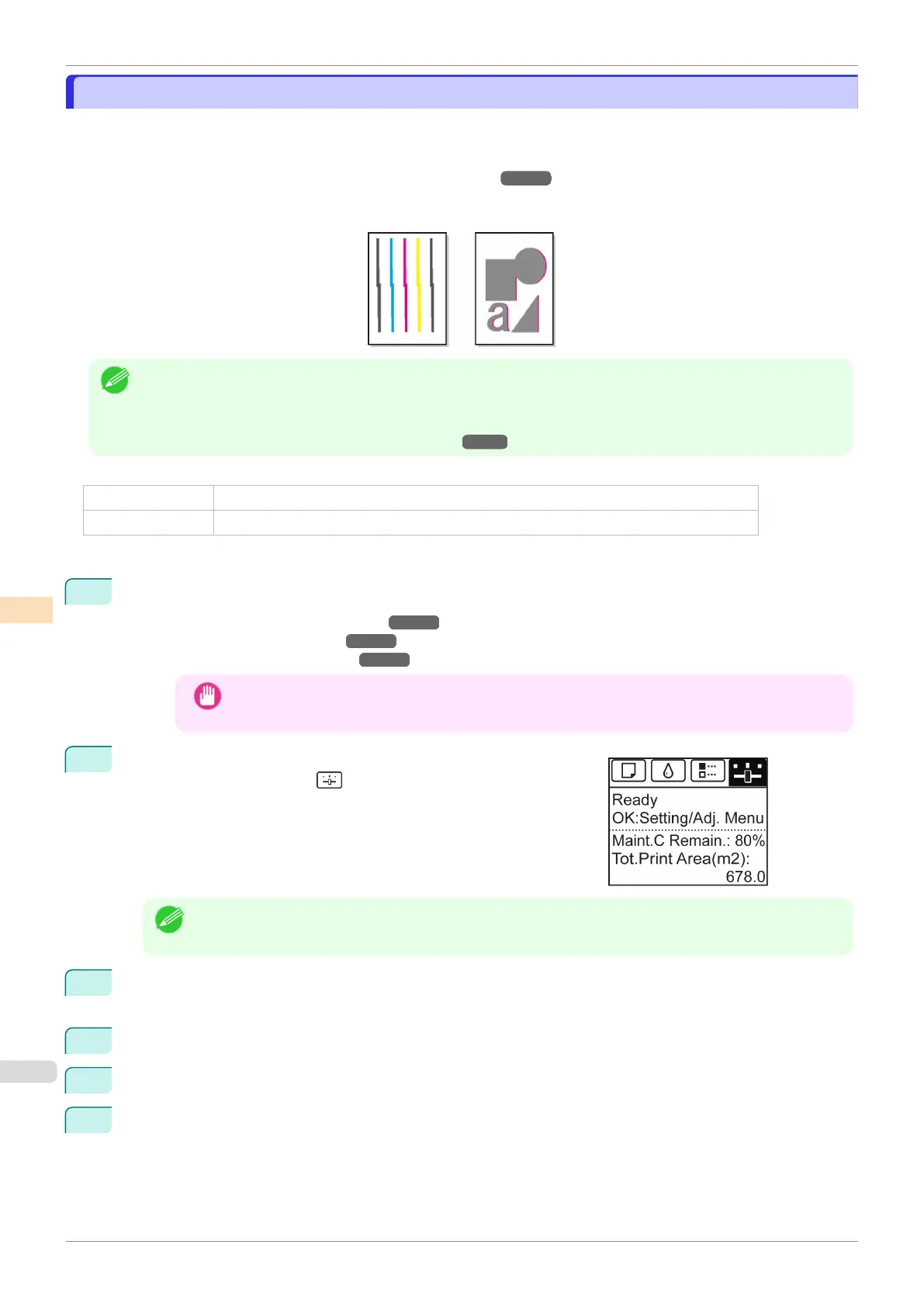

Canon imagePROGRAF iPF830 User Manual

Manual Adjustment to Straighten Lines and Colors
Manual Adjustment to Straighten Lines and Colors
If printed vertical lines are warped or colors are out of alignment, execute Head Posi. Adj. to adjust the Printhead
alignment.
Normally, execute Standard.
(See "Automatic Adjustment to Straighten Lines and Colors.") ➔ P.550
However, when printing on special paper, or if printing is not improved after Standard, try Manual.
Manual adjustment requires you to examine the printed test pattern and enter an adjustment value.
Note
•
We recommend using the type of paper you use most often for adjustment.
• If the printhead position was not adjusted during initial setup or when the printhead was replaced, execute Initial
adjustmt.
(See "Adjustment When Installing the Printhead.")
➔P.553
Items to Prepare
When Using Rolls An unused roll at least 254.0 mm (10.00 in) wide
When Using Sheets Two sheets of unused paper of at least A4/Letter size (or one sheet when using A2 or larger)
Perform adjustment as follows.
1 Load paper.
• Attaching the Roll Holder to Rolls ➔ P.330
• Loading Rolls in the Printer ➔ P.333
• Loading Sheets in the Printer ➔ P.353
Important
•
Always make sure the loaded paper matches the type of paper specified on the printer. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.
2
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to
select the Settings/Adj. tab ( ).
Note
•
If the Tab Selection screen is not displayed, press the Menu button.
3 Press the OK button.
The Set./Adj. Menu is displayed.
4 Press ▲ or ▼ to select Adjust Printer, and then press the OK button.
5 Press ▲ or ▼ to select Head Posi. Adj., and then press the OK button.
6 Press ▲ or ▼ to select Other, and then press the OK button.
Manual Adjustment to Straighten Lines and Colors iPF830
User's Guide
Adjustments for Better Print Quality Adjusting the Printhead
552
