Canon imagePROGRAF iPF830 User Manual

Preferences Dialog Box
Preferences Dialog Box

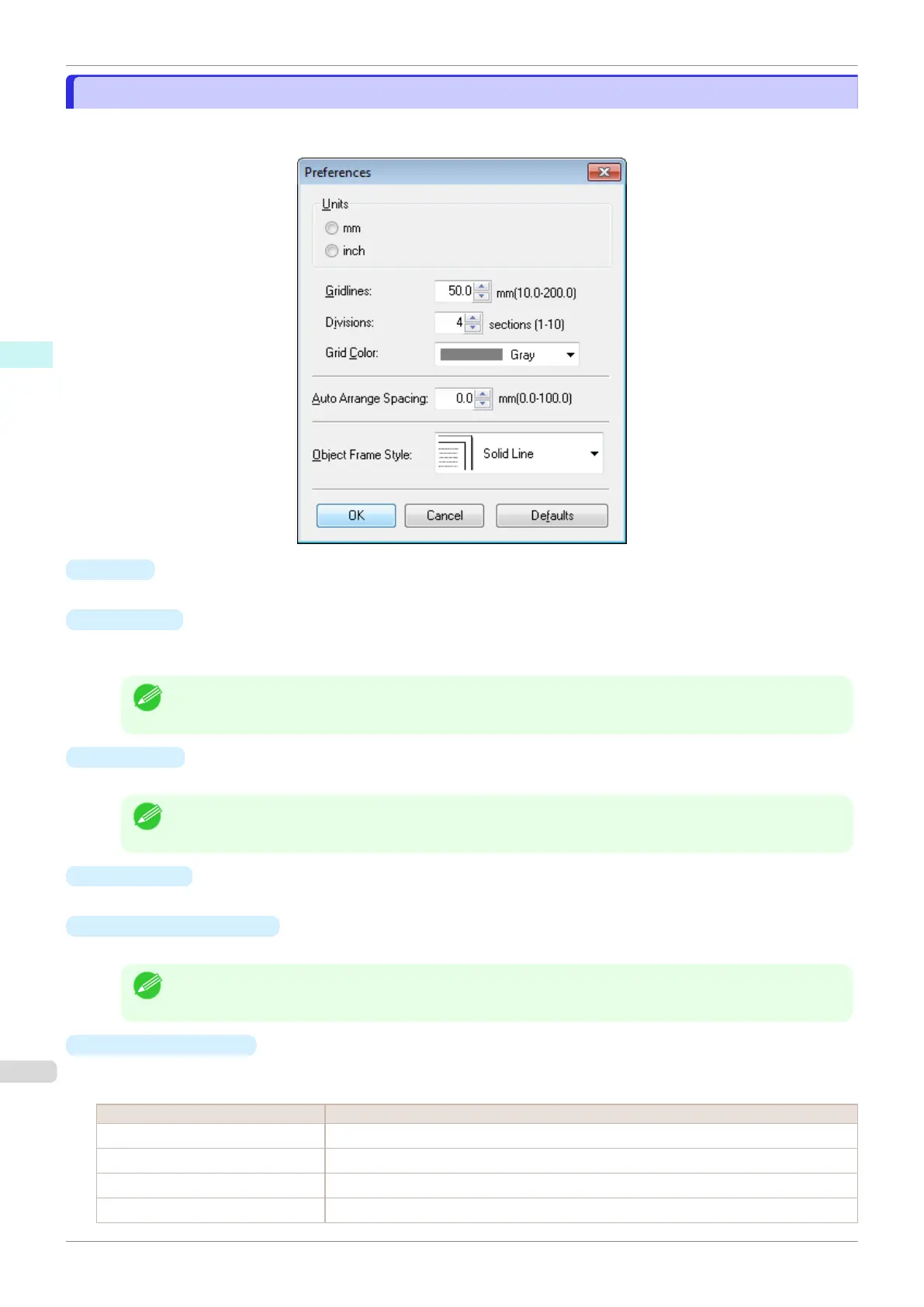

This dialog box appears when you select Preferences from the File menu. This allows you to configure the prefer-
ences of Free Layout.
•
Units
Set the unit for paper length, margins, and so on.
•
Gridlines
You can input a grid line width value in numerical characters so that they serve as a guide to laying out ob-
jects.
Note
•
You can input between 10.0 and 200.0(mm) (between 0.39 and 7.88(inch)).
• You can change the numbers by clicking either ▲ button or ▼ button.
•
Divisions
You can change the number of divisions of grid lines so that they serve as a guide to laying out objects.
Note
•
You can input between 1 and 10.
• You can change the numbers by clicking either ▲ button or ▼ button.
•
Grid Color
Select the grid line color.
• Auto Arrange Spacing
Change the object-to-object spacing to be applied in the operation of laying out objects automatically.
Note
•
You can input between 0.0 and 100.0(mm) (between 0.00 and 3.94(inch)).
• You can change the numbers by clicking either ▲ button or ▼ button.
•
Object Frame Style
You can select the object frame style for printing.
The following settings are available for the object frame style.
Setting Details
None You can print with no frame style.
Solid Line You can print the solid line as the frame style.
Dotted Line You can print the dotted line as the frame style.
Dashed Line You can print the dashed line as the frame style.
Preferences Dialog Box
iPF830
User's Guide
Windows Software Free Layout
190
