Canon imagePROGRAF iPF830 User Manual

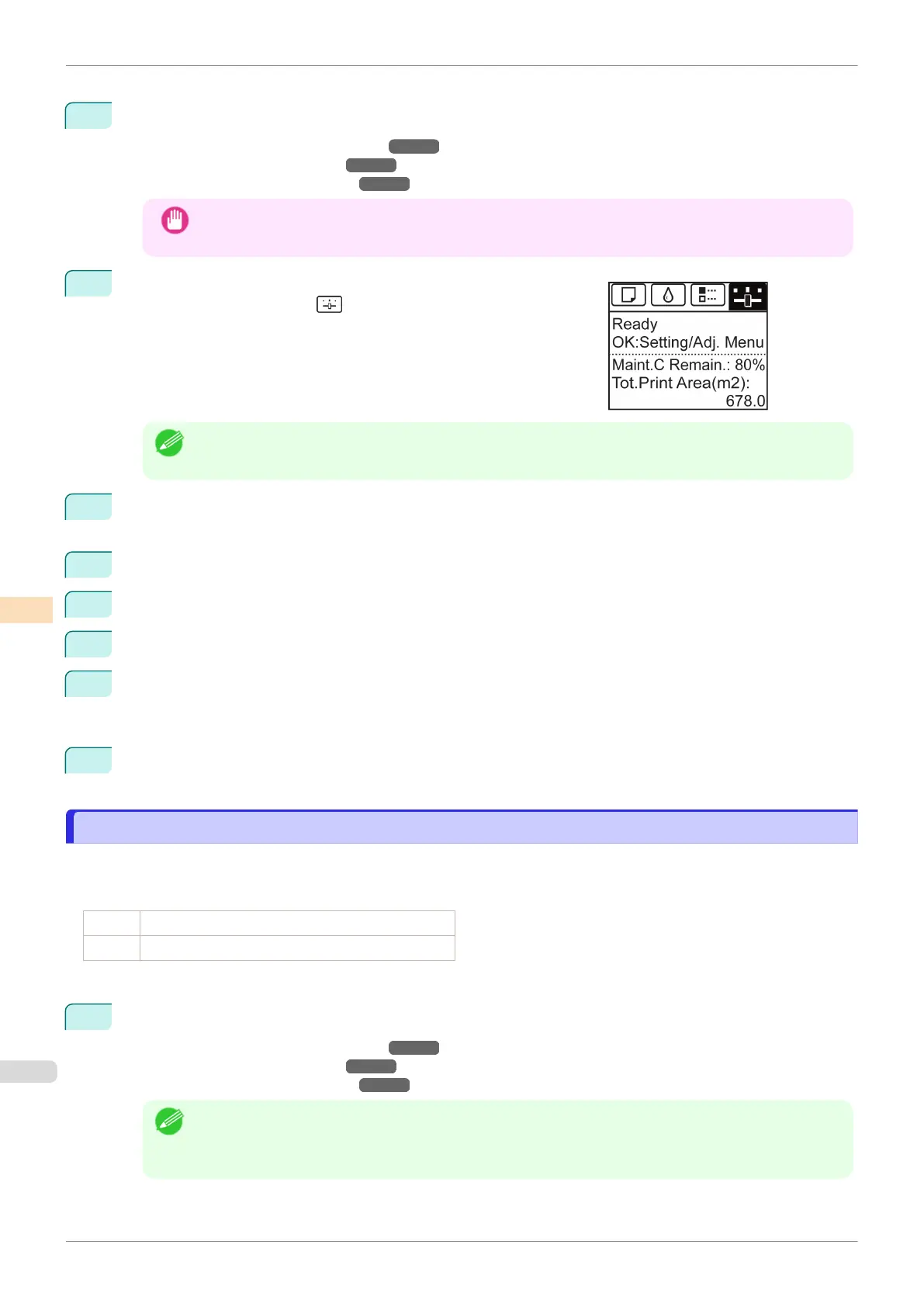

Perform adjustment as follows.
1 Load paper.
• Attaching the Roll Holder to Rolls ➔ P.330
• Loading Rolls in the Printer ➔ P.333
• Loading Sheets in the Printer ➔ P.353
Important
• Always make sure the loaded paper matches the type of paper specified on the printer. Adjustment can-
not be completed correctly unless the loaded paper matches the settings.
2
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to
select the Settings/Adj. tab ( ).
Note
•
If the Tab Selection screen is not displayed, press the Menu button.
3
Press the
OK button.
The Set./Adj. Menu is displayed.
4 Press ▲ or ▼ to select Adjust Printer, and then press the OK button.
5 Press ▲ or ▼ to select Head Posi. Adj., and then press the OK button.
6 Press ▲ or ▼ to select Other, and then press the OK button.
7 Press ▲ or ▼ to select Initial adjustmt, and then press the OK button.
A test pattern is printed for adjustment.
Adjustment is now finished if you have printed on a roll.
8 If you are printing on sheets, a confirmation message is displayed requesting you to continue printing.
Press the OK button and follow the instructions.
Adjusting Line Misalignment
Adjusting Line Misalignment
If printed lines are misaligned, execute Head Inc. Adj. to adjust the angle of inclination of the Printhead. Executing
Head Inc. Adj. requires you to examine a printed test pattern and enter an adjustment value.
Paper to Prepare
Rolls An unused roll at least 254.0 mm (10.00 in) wide
Sheets One sheet of unused paper of at least A4/Letter size
Perform adjustment as follows.
1 Load the paper.
• Attaching the Roll Holder to Rolls ➔ P.330
• Loading Rolls in the Printer ➔ P.333
• Loading Sheets in the Printer ➔ P.353
Note
•
When loading paper, specify the type of paper correctly. Using paper that you have not specified on the
printer may cause feeding problems and affect the printing quality.
• We recommend loading a type of paper that you use often.
Adjusting Line Misalignment iPF830
User's Guide
Adjustments for Better Print Quality Adjusting the Printhead
554
