c
Basket Arm R and Basket Arm L
Holds the Basket Rod (tag side) attached to the Output Stacker. When the Output Stacker is not used, push it
down and store it next to the Stand Leg.
d
Basket Rod (tag side) and Basket Rod (cord side)
Holds the cloth Output Stacker securely in specific positions.
e
Basket Rod
Keeps Basket Arm R and Basket Arm L at the same angle.
f
Rear Holder
Holds the middle of the Basket Rod (cord side).
(See "Using the Stationary Output Stacker.") ➔ P.359
Note
•
The printer can be used with either a Stationary Output Stacker or a separate, mobile Wheeled Output Stacker.
The Stationary Output Stacker is normally provided as the standard stacker, but the Wheeled Output Stacker may
be the standard stacker in some sales regions. If the Wheeled Output Stacker has been provided as the standard
stacker, the Stationary Output Stacker is not included.
For more information about the Wheeled Output Stacker,
see "Wheeled Output Stacker."
➔P.362

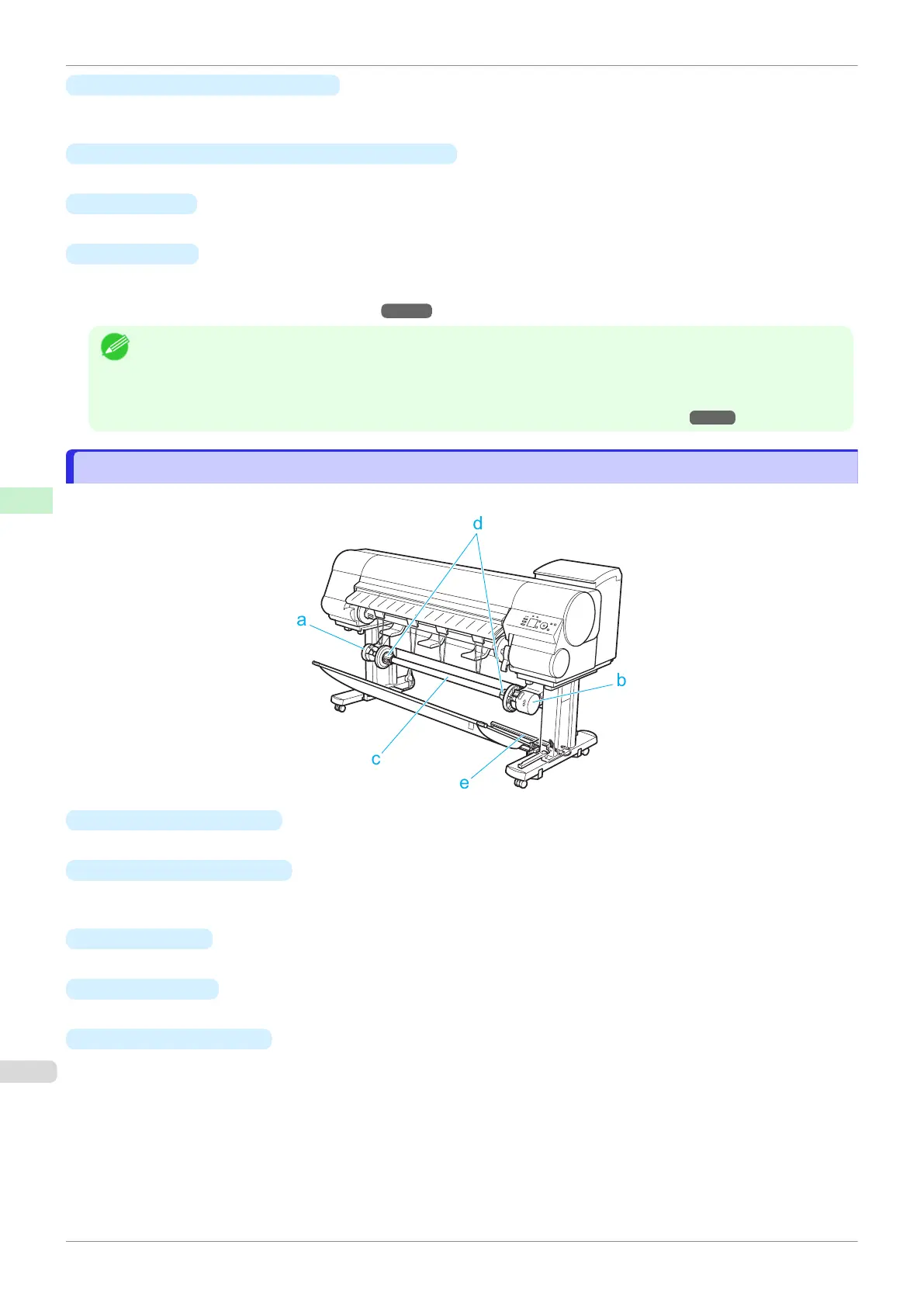

Media Take-up Unit(Optional)
Media Take-up Unit(Optional)
Main Unit
a
Left Media Take-up Unit
Load the Rewind Spool here.
b
Right Media Take-up Unit
Load the Rewind Spool here. Includes the Media Take-up Unit
Power button, ▲ and ▼ buttons to advance or
rewind paper, and a power cord.
c
Rewind Spool
Winds documents printed on rolls.
d
3-inch Adapter
When rewinding rolls with 3-inch paper cores, attach the adapter to the Rewind Spool.
e
Media Take-up Sensor
A sensor for automatically rewinding rolls.
