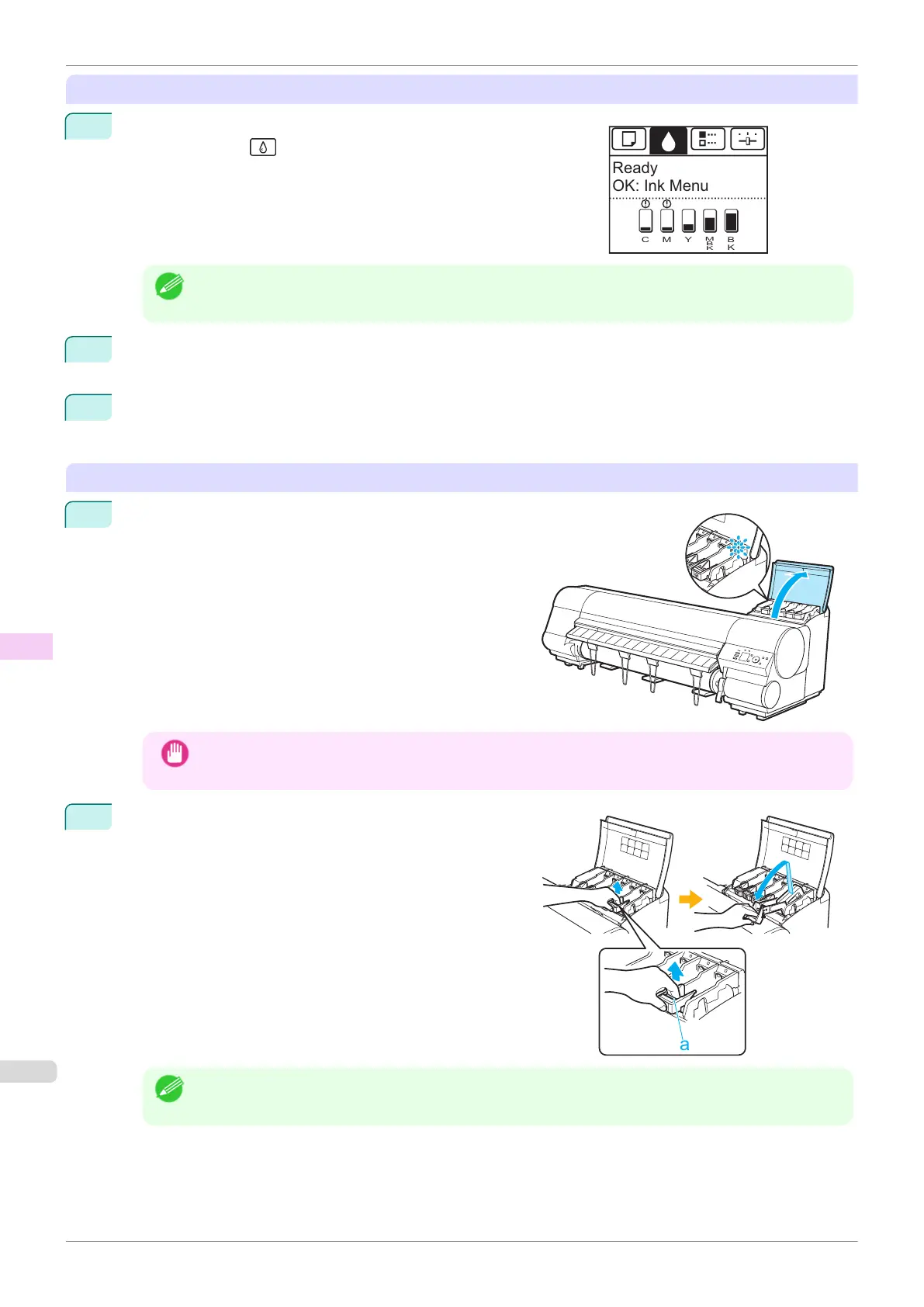

Access the menu for Ink Tank replacement
1
On the Tab Selection screen of the Control Panel, press or to
select the Ink tab ( ).
Note
If the Tab Selection screen is not displayed, press the Menu button.
2
Press the OK button.
The Ink Menu is displayed.
3
Press or to select Rep. Ink Tank, and then press the OK button.
Instructions are displayed on the Display Screen.
Remove the Ink Tank (330 ml)
1
Open the Ink Tank Cover of the tank for replacement and
check the Ink Lamp.
The Ink Lamp flashes quickly if there is no ink left.
Important
Avoid hitting the printer when replacing an Ink Tank. Handle the printer gently when replacing tanks.
Jolting the printer during printing may deteriorate print quality.
2
Lift the stopper (a) of the Ink Tank Lock Lever for the color
to replace. Lift the Ink Tank Lock Lever until it stops, and
then push it down to the front.
Note
Push the Ink Tank Lock Lever down until it locks.
Make sure the Ink Tank Lock Lever does not return to the original position.
Ready
OK: Ink Menu
C M Y
M
B
K
B
K
a
G
G
Replacing Ink Tanks
iPF830
User's Guide
Maintenance and Consumables Ink Tanks
568

Table of Contents

Other manuals for Canon imagePROGRAF iPF830

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Canon imagePROGRAF iPF830 and is the answer not in the manual?

Canon imagePROGRAF iPF830 Specifications

General IconGeneral
ColorYes
Printing colorsBlack, Cyan, Magenta, Matte black, Yellow
Print technologyInkjet
Maximum resolution2400 x 1200 DPI
Number of print cartridges5
Page description languagesGARO, HP-GL/2, HP-RTL
Minimum line width0.02 mm
Number of power supply units1
Compliance industry standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Media thickness0.07 - 0.8 mm
Maximum print sizeA0 (841 x 1189 mm)
Maximum roll length18 m
Media width (sheets)1117.6 mm
Maximum roll diameter150 mm
ISO A-series sizes (A0...A9)A0, A1
JIS B-series sizes (B0...B9)B0, B2
DisplayLCD
Product colorBlack, Grey
Storage mediaHDD
Internal storage capacity320 GB
Sound power level (standby)35 dB
Sound pressure level (printing)52 dB
USB connectorUSB Type-A
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface typeGigabit Ethernet
Power supply190 W
Power consumption (off)0.5 W
Power consumption (standby)5 W
Operating temperature (T-T)15 - 30 °C
Operating relative humidity (H-H)10 - 80 %
Sustainability certificatesENERGY STAR
Weight and Dimensions IconWeight and Dimensions
Depth975 mm
Width1893 mm
Height1144 mm
