Displays the original image size before creating the layout image.
• Finished
Displays the image size of the entire layout image with the canvas sides, crop marks, and the amount of ex-
tension added to the input image size.
• Resolution
Displays the resolution of the image. This is not changed from the resolution of the original image. If the image
size is changed in the Layout Plug-In, the resolution is maintained the same as the original image, and resam-
pling is performed using the Bicubic method.
If you do not want the number of pixels in the image to change (resample), select Create the Canvas at the
Image Size in Select Canvas Size and select an option other than Image and Soft Image in Thickness Ef-
fect.
• Defaults button
Click this button to reset the setting values.
• Close button
When this button is clicked, the Layout Plug-In exits and the current setting values are saved. When the Layout
Plug-In is started the next time, the setting values from the previous time are used.
•
Execute button
When this button is clicked, the Print Plug-In for Photoshop starts. To print the created layout image, click the Print
button in the Print Plug-In for Photoshop main window.
Important
• When you close the Print Plug-In, the created layout image is discarded.
Note
• If the Print Plug-In for Photoshop for multiple different models is installed, a screen for selecting the model is displayed when
you click the Execute button.
• When you close Print Plug-In for Photoshop main window after printing, the Layout Plug-In main window is displayed again.
• If the size of the layout image is larger than the paper size that can be printed by the printer, you should reduce the size of the
layout image to the output paper size in advance before printing.

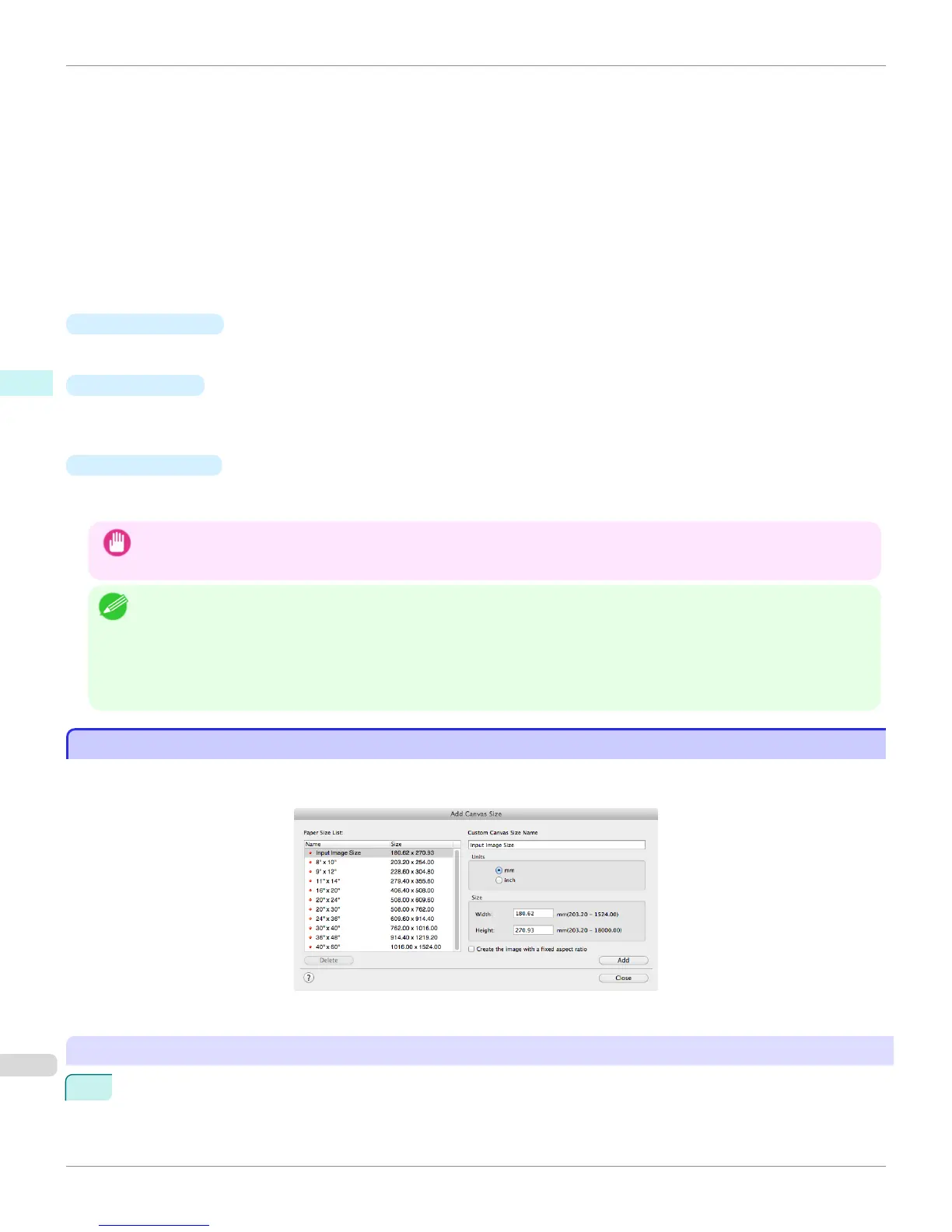

Add Canvas Size dialog box
Add Canvas Size dialog box
This dialog box is displayed when you click the Add Canvas Size button in the Layout Plug-In main window. It allows
you to register and delete arbitrary canvas sizes (custom canvas sizes).
Click the Close button to close the Add Canvas Size dialog box.
Adding a Canvas Size
1 Specify the units for the width and height of the canvas size you are adding in Units.
Add Canvas Size dialog box
iPF9400
User's Guide
Mac OS X Software Layout Plug-In for Photoshop
518
