COPYRIGHT
©
2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 6 FIXING SYSTEM
6-5 P

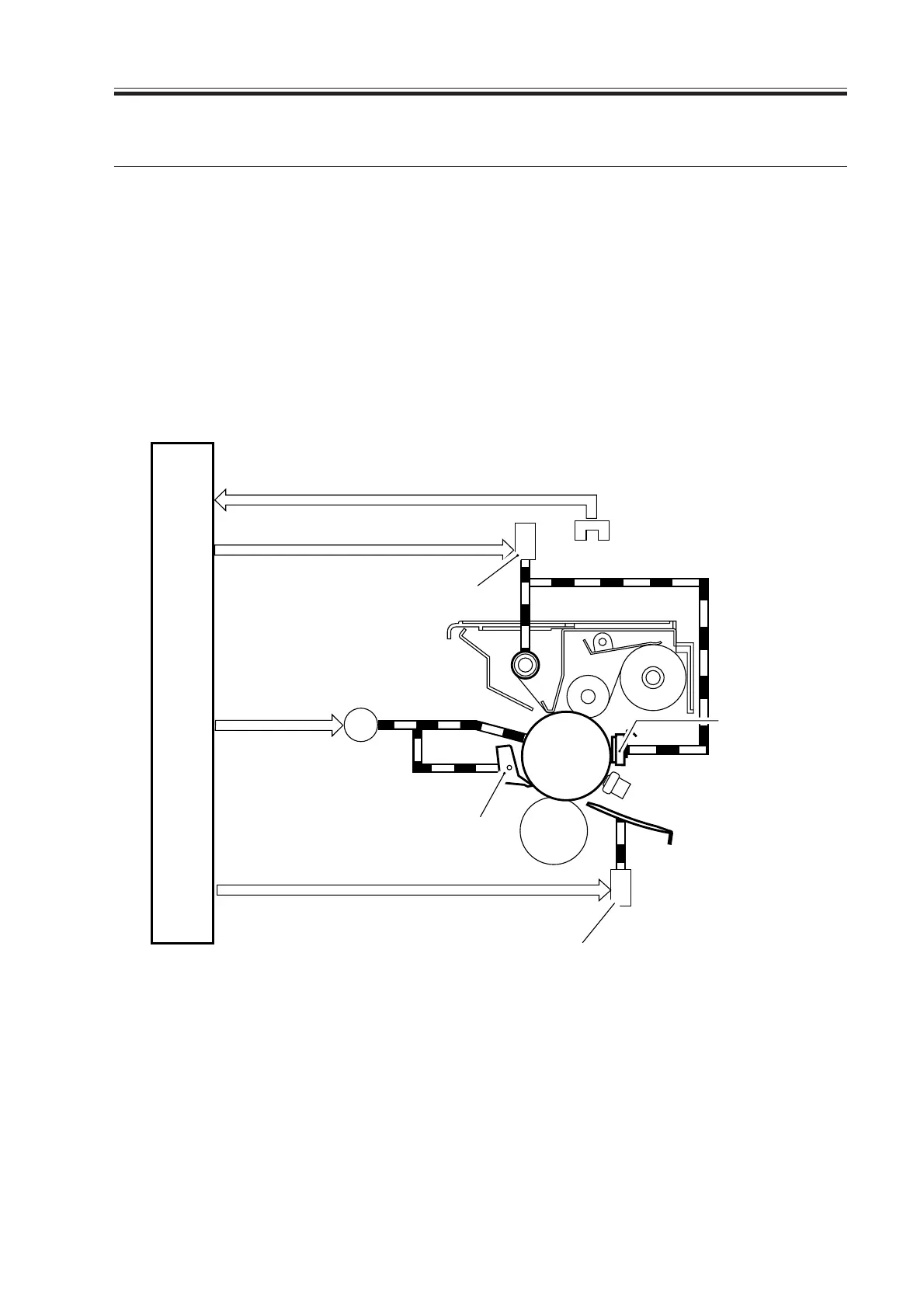

F06-201-01
2. Fixing Drive System
2.1 Outline
The following are control times associated with the fixing drive system:
1. Fixing roller drive
2. Cleaning web drive
3. Fixing assembly inlet guide drive
4. Thermistor reciprocating mechanism drive
5. Upper separation claw reciprocating mechanism
M19
SL1
SL9
DC controller PCB
J106B
Drive signal
Drive signal
Drive signal
J106B
Fixing inlet guide drive solenoid
Fixing drive
motor
Thermistor
(TH1)
Upper separation claw
Fixing web drive solenoid
PS45
Fixing web length sensor
Drive signal
J106A
J106B
