CHAPTER 5 PICK UP/FEEDING SYSTEM
5-49 P

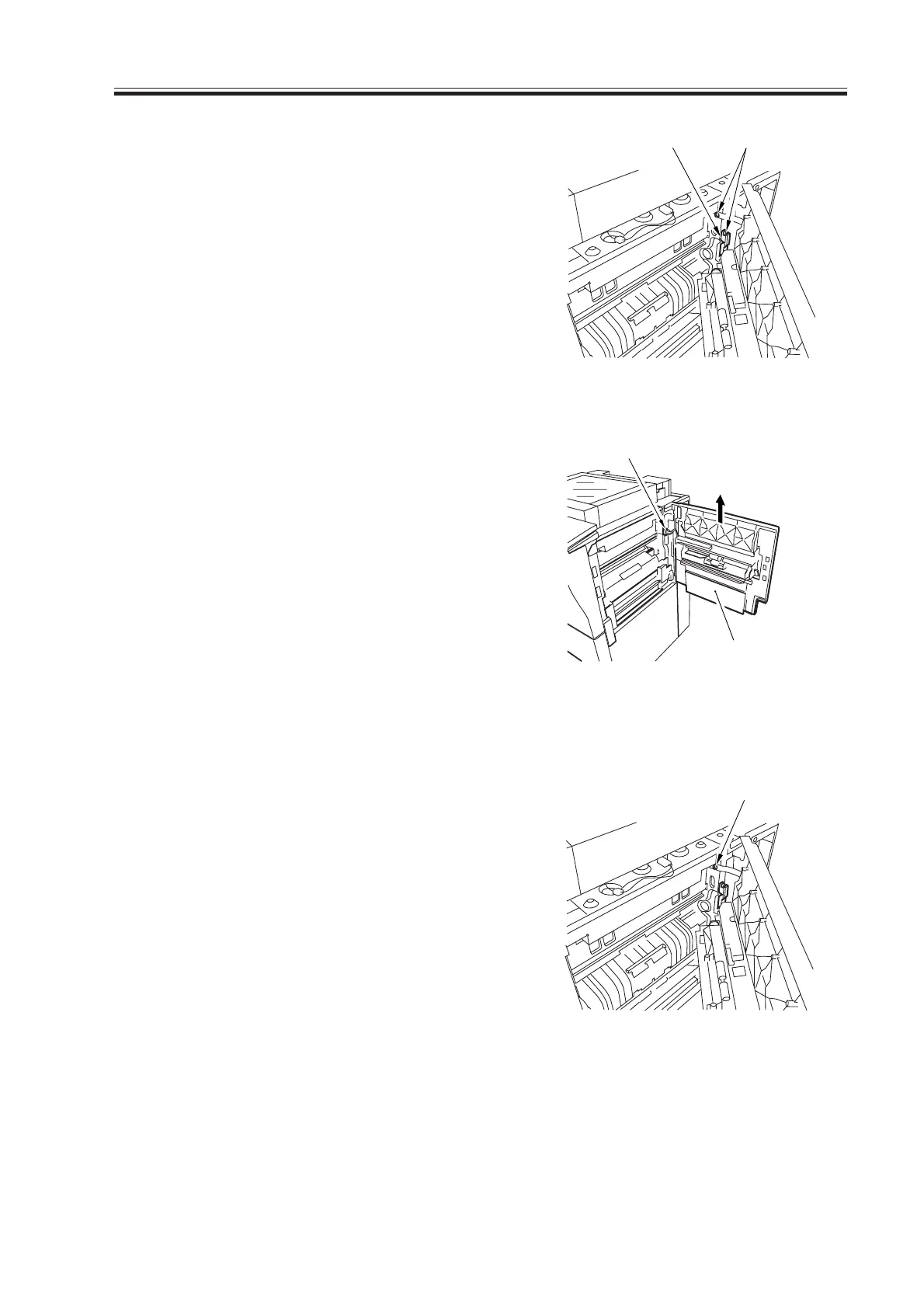

9.1 Manual Feed Tray Assembly
9.1.1 Removing the Right Upper Cover
1) Remove the two screws [1], and detach
the cover [2].
F05-901-01
2) Disconnect the connector [3], and de-
tach the right upper cover [4].
F05-901-02
9.1.2 Opening of the Right Upper Cover
1) Open the right upper cover, and remove
the mounting screw [1].
F05-901-03
[2]
[1]
[3]
[4]
[1]
