Canon iR5000 - Removing the Fixing Assembly

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 6 FIXING SYSTEM
6-22 P
[3]
[2]
[1]
[5]
[5]
[5]
[4]
[4]
[6]

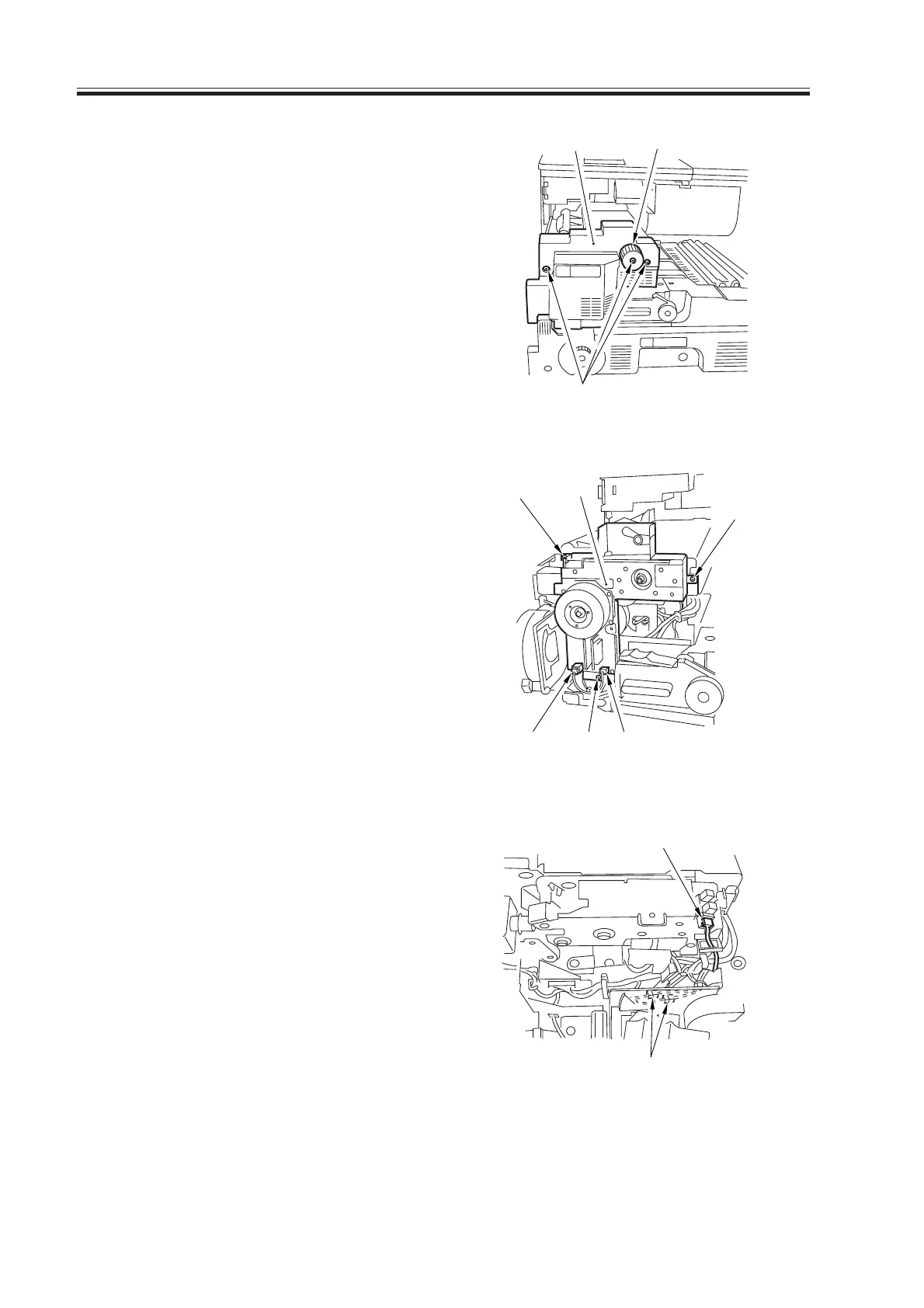

4.1.2 Removing the Fixing Assembly
1) Slide out the fixing/feeding unit.
2) Remove the three screws [1] and the
knob [2]; then, detach the fixing/feeding
left cover [3].
F06-401-03
3) Disconnect the two connectors [4], and
remove the three screws [5]; then, de-
tach the fixing drive assembly [6].
F06-401-04
4) Disconnect the three connectors [7], and
free the harness from the harness guide.
F06-401-05
[7]
[7]
