Canon iR5000 - Cleaning the Primary Anti-Stray Sheet

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 4 IMAGE FORMATION SYSTEM
4-72 P
7.8.6 Cleaning the Primary Anti-Stray Sheet
1) Open the front cover.
2) Remove the developing assembly.
3) Remove the hopper assembly.
4) Remove the process unit. (See p. 4-
54P.)

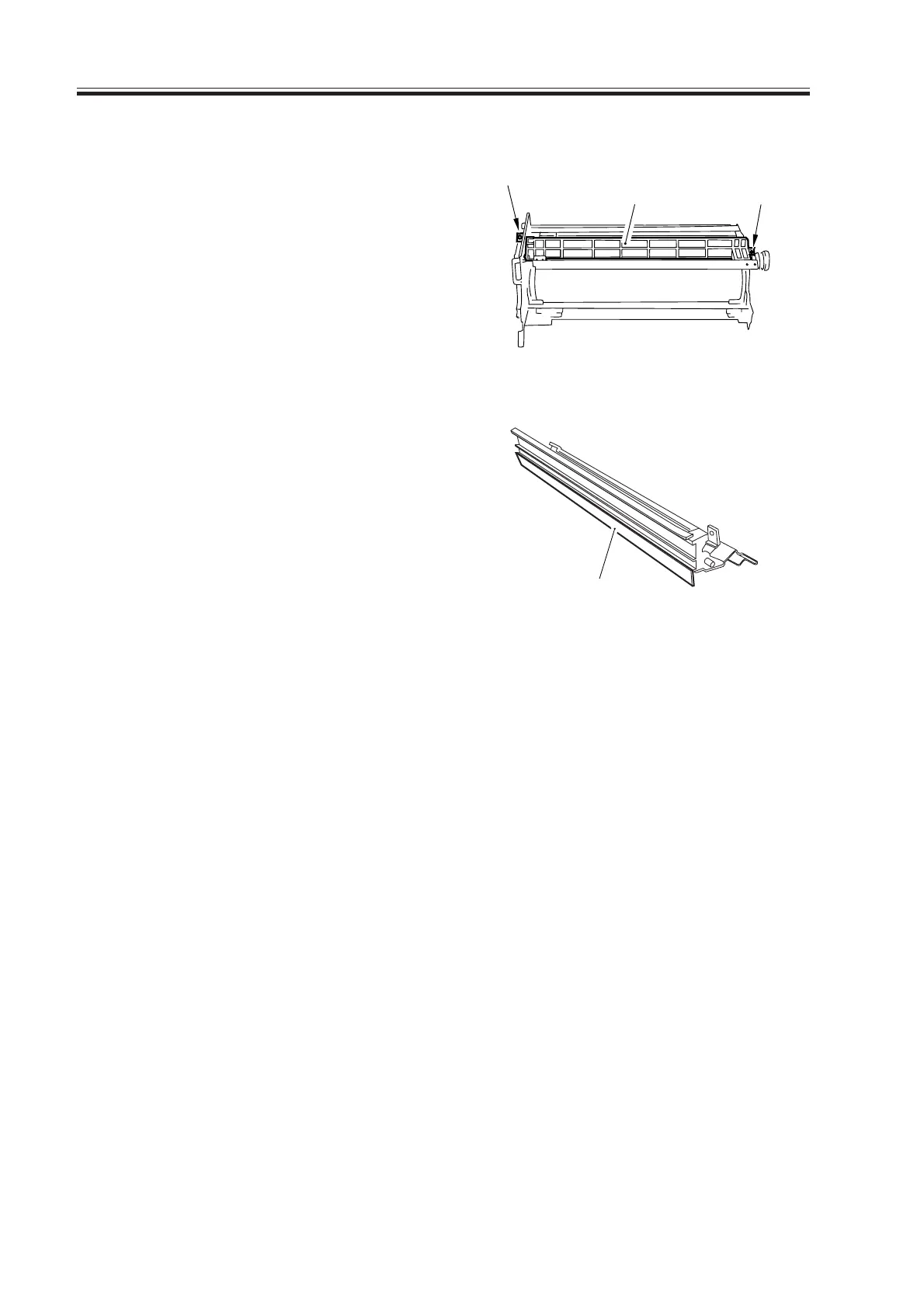

5) Remove the two screws [1], and remove
the potential sensor rail stay [2].
F04-708-10
6) Clean the primary anti-stray sheet [3].
F04-708-11
[1]
[2]
[1]
[3]
