COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 3 STANDARDS AND ADJUSTMENTS
3-16 T
4.9 Adjusting the Position of the Pickup Solenoid (SL3, SL4)
of the Cassette 3/4

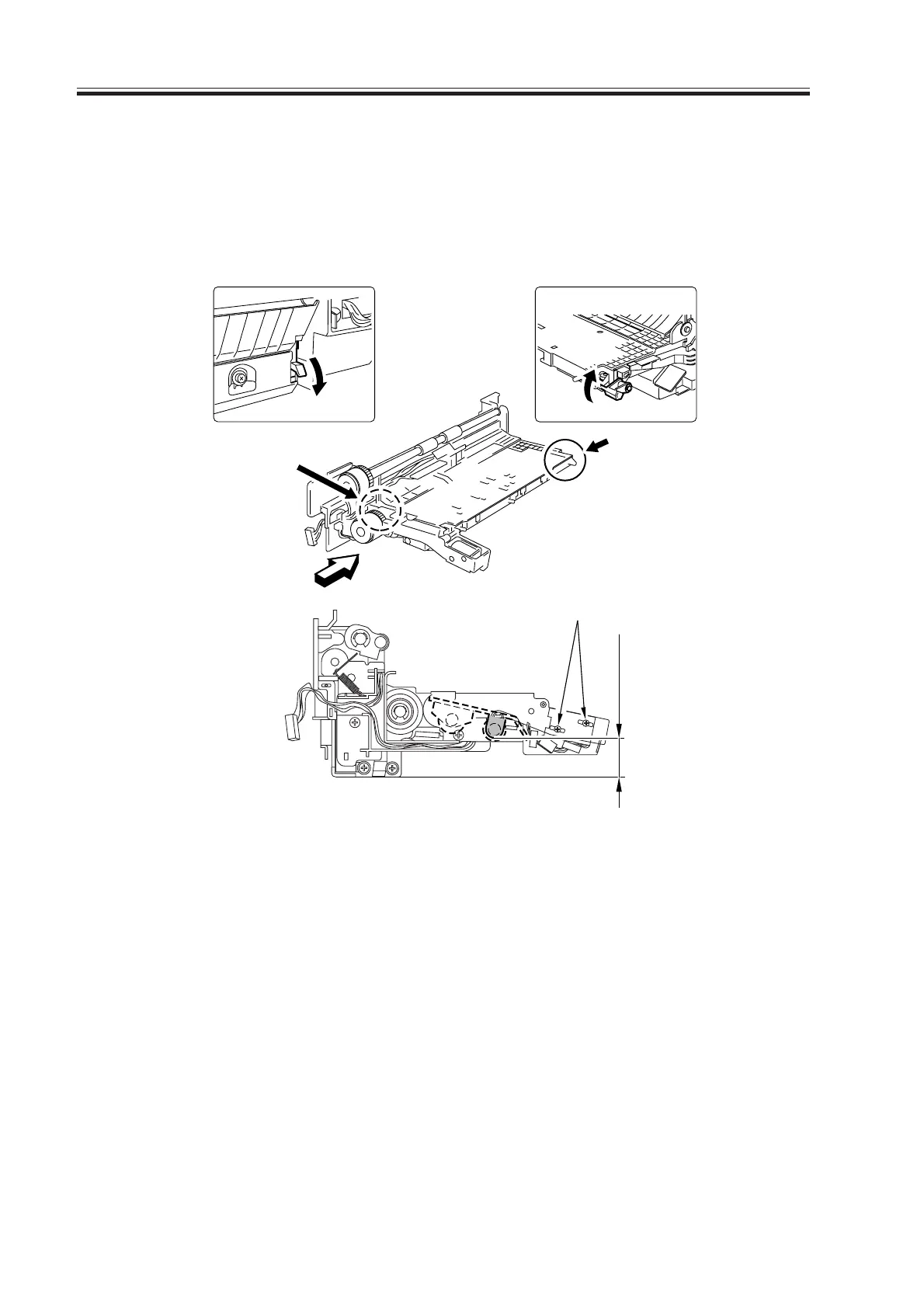

Adjust the position of the solenoid using the two screws [3] so that the distance from the
bottom of the pickup assembly to A of the roller arm is 36±0.5 mm when [1] and [2] are op-
erated.
F03-409-01
[1]
[2]
[1]
[2]
A
View from A
36±0.5mm
[3]
