Canon iR5000 - Removing the Left Deck Feed Paper Sensor

COPYRIGHT © 2000 CANON INC. 2000 2000 2000 2000 CANON iR5000/iR6000 REV.0 JULY 2000
CHAPTER 5 PICK UP/FEEDING SYSTEM
5-76 P
3) Disconnect the connector [3], and re-
move the sensor [4].
F05-906-20

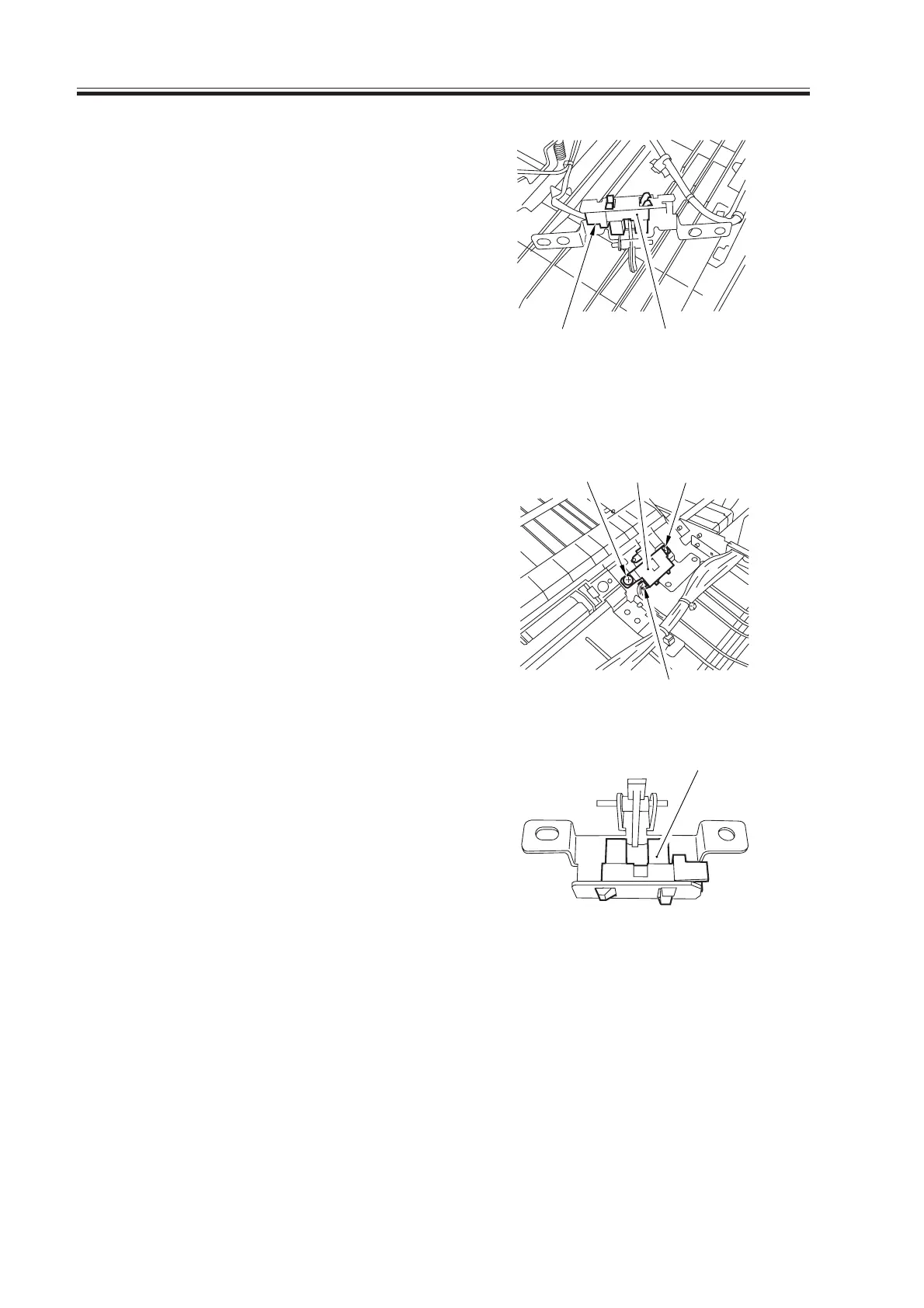

9.6.12 Removing the Left Deck Feed Paper Sensor
1) Disconnect the connector [1] and re-
move the two mounting screws [2] from
the bottom of the duplex unit; then, de-
tach the sensor together with its base
[3].
F05-906-21
2) Remove the left deck feed paper sensor
[4].
F05-906-22
[3] [4]
[2]
[2]
[3]
[1]
[4]
