CHAPTER 6 FIXING SYSTEM
6-23 P
[9]
[8]
[12]
[11]
[13]
[10]

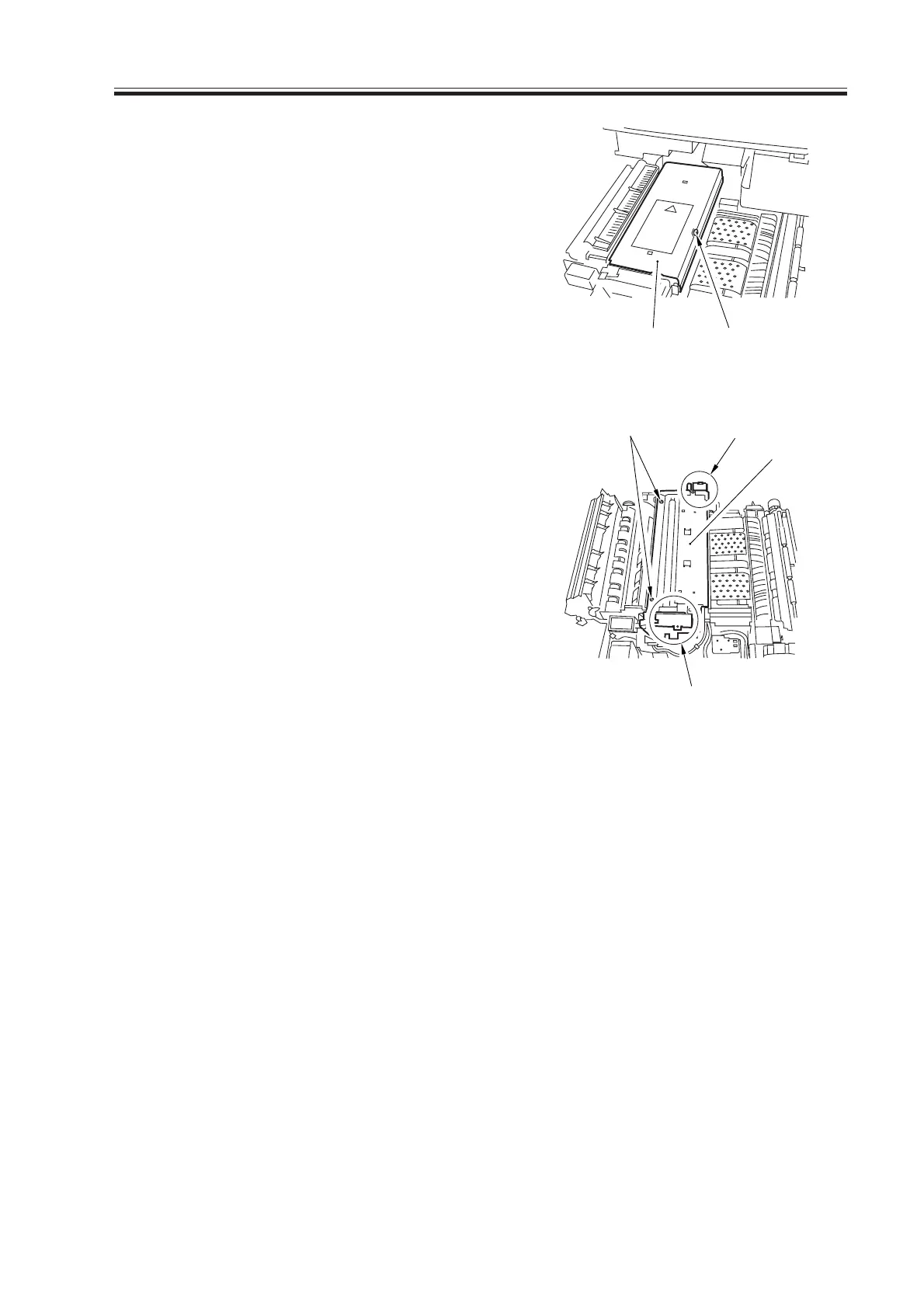

5) Remove the mounting screw [8], and
detach the cover [9].
F06-401-06
6) Open the fixing delivery assembly, and
remove the two screws [10]; then, hold-
ing the front [12] and the rear [13] of
the fixing assembly [11], remove the
fixing assembly from the machine.
F06-401-07
