MV750i E, MV730i E, MV700i E, MV700 E, MV690 E
DISASSEMBLING
25

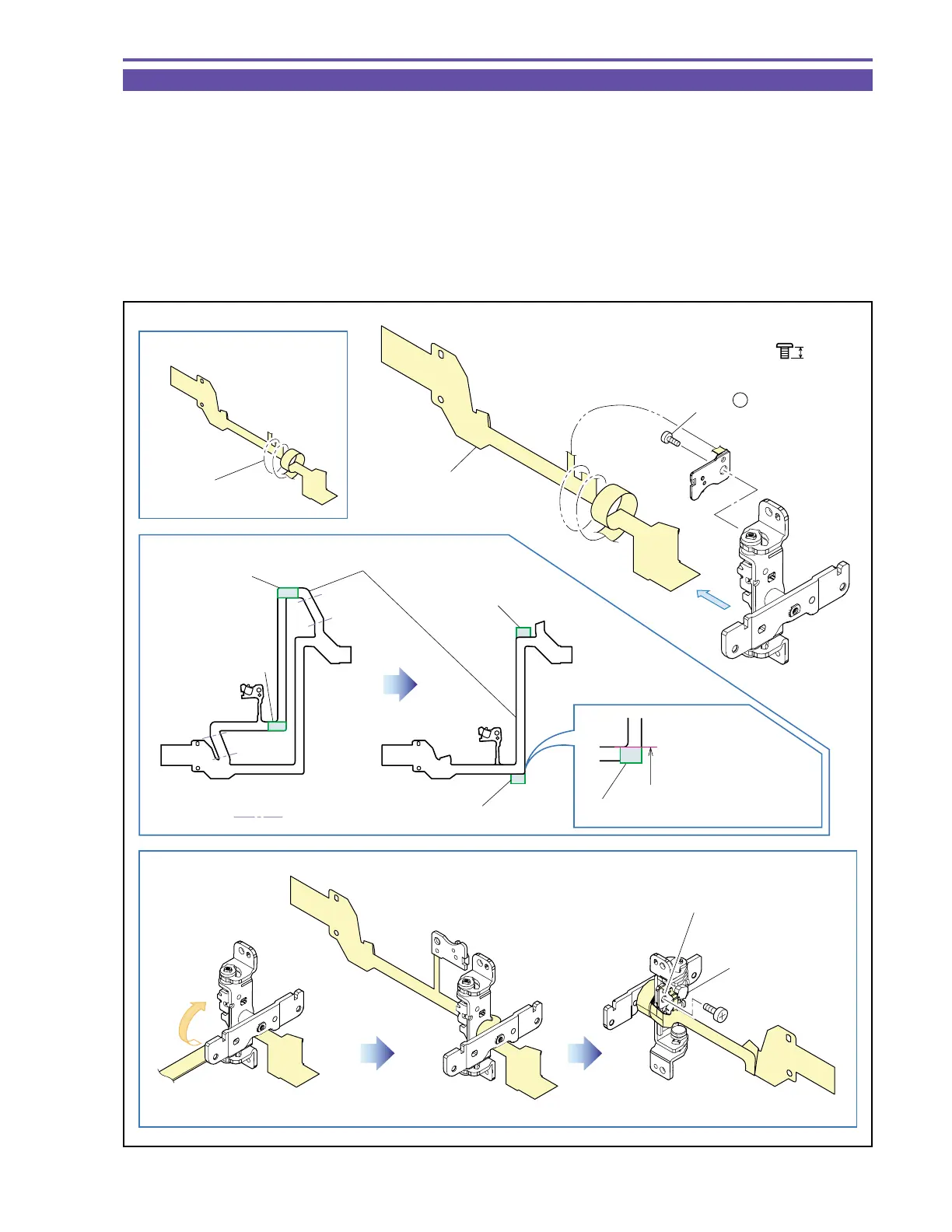

1-21 Disassembly of LCD Hinge Unit - 2
(1) Remove a screw (f × 1), and detach the LCD FPC Ass’y.
<Note on Reassembling>
(1) If a service part of LCD FPC Ass’y is used, put “1” and “2”, “3” and “4” on each other as illustrated in this order, and fasten them
with double face tape on the FPC. Then, fold back “5” and “6”, and fasten them with double face tape on the FPC.
(2) Wind the LCD FPC Ass’y 2-1/2 turns at the illustrated status, and fasten the Switch section by screws. The FPC must not be wound
on other than the Switch section.
<Instruction for Supply>
(1) LCD FPC Ass’y winding section : Hanarl KS-50M (DY9-3047-000)
Fig. 22
f
2.5mm
Metal
M1.7
(1) - f
(1)
Wind 2
1
/
2
turns
Fold line
LCD FPC Ass'y
Hanarl
KS-50M
Switch section
Note on Reassembling (1)
Note on Reassembling (2)
2
1
3
4
5
6
Reversible Tape
Reversible Tape
Reversible Tape
Folded part
Reversible Tape
LCD FPC Ass'y
Instruction for Supply
Do not involve flexible cable when
tightening by screws.
Attach to match
the flexible cable
contour within error
of ±0.5 mm.
To Next Page
