4. Signal Processing Circuit
4-1 Outline of Signal Processing Circuit

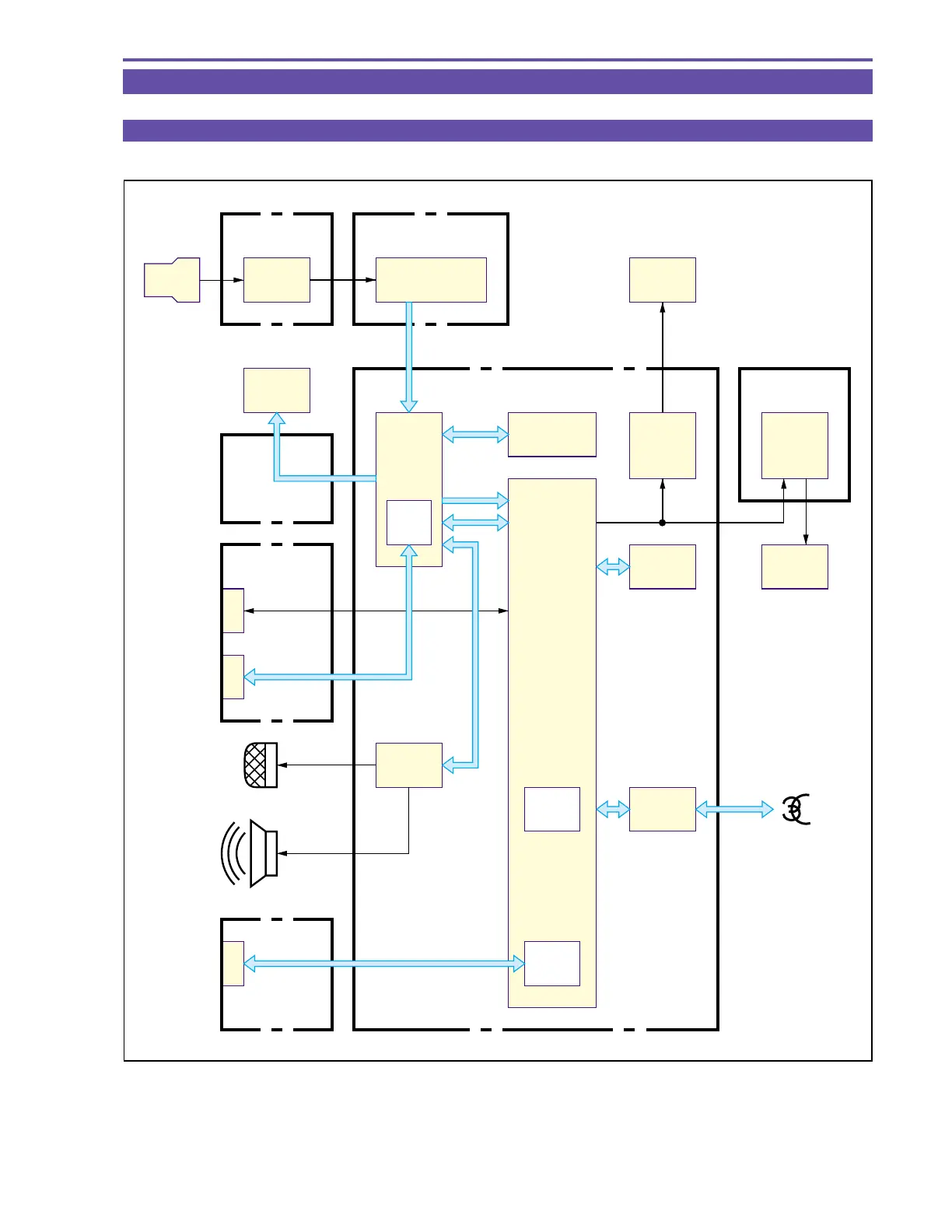

Figure 6 shows the entire block diagram of the signal processing circuit and the flow of video and audio signals.
Fig. 6
LENS
CCD P.C.B.
LI
P.C.B.
JACK1 P.C.B.
JACK2 P.C.B.
MAIN P.C.B.
LCD
P.C.B.
CA P.C.B.
MEMORY
CARD
IC1103
DIGIC DV
IC801
AIF4
LCD
CVF
LCD
IC1001
CCD
IC2302
SDRAM
IC903
EVF
DRIVE
IC501
EVF
DRIVE
IC2000
VRP2
IC1102
SDRAM
IC2301
VIC4
IC1002
TG/CDS/AGC/AD
USB
DIF
FR
MICOM
MIN AV
JACK
DV
TERMINAL
USB
TERMINAL
MIC
SPEAKER
REC/PB
HEAD
