Canon MV750i E - Disassembly of R-LCD Unit

MV750i E, MV730i E, MV700i E, MV700 E, MV690 E
DISASSEMBLING
16
1-14 Disassembly of R-LCD Unit - 1
(1) Remove three screws (b × 1, g × 2), disconnect the CN100, CN101, CN102 and CN103, and detach the R KEY P.C.B. and MAIN
FPC.
(2) Open the LCD Unit, remove four screws (i × 2, j × 2), and detach the C Lock Ass’y and Tripod Base.

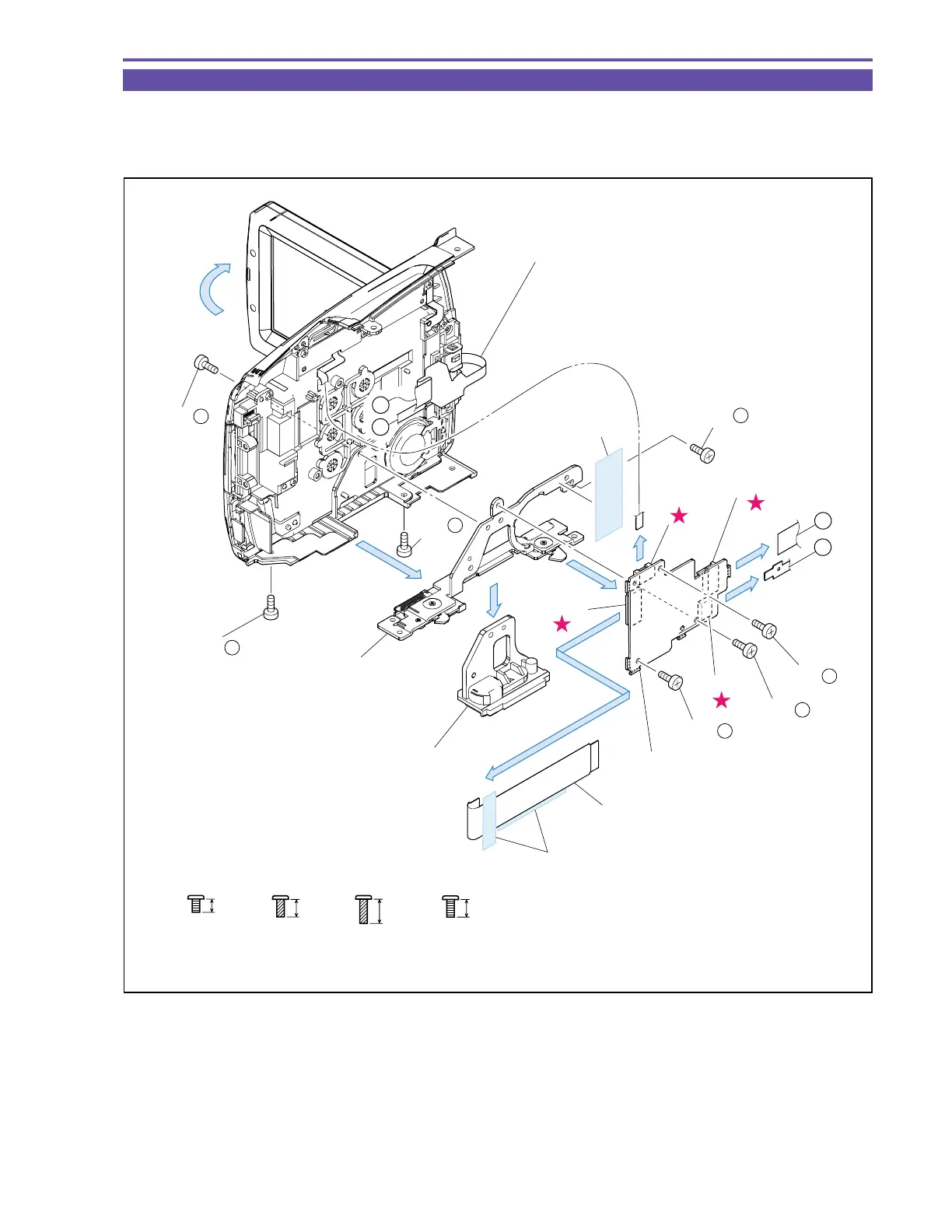

Fig. 13
i
j
5.5mm
Metal
M1.7
(self tap)
4mm
Metal
M1.7
3mm
Metal
M1.7
b
g
4mm
Metal
M1.7
(self tap)
(1) - g
(1) - g
(1) - b
(2) - i
(2) - i
(2) - j
(2) - j
(1)
(2)
(2)
(2)
(1)
(1)
(1)
(1)
LCD Unit
LCD FPC Ass'y
C Lock Ass'y
Tripod Base
CN103
CN100
CN102
CN101
R KEY P.C.B.
MAIN FPC
UL Tape
UL Tape
A
B
A
B
