Canon MV750i E - Disassembly of CVF Unit

MV750i E, MV730i E, MV700i E, MV700 E, MV690 E
DISASSEMBLING
32
1-26 Disassembly of CVF Unit - 3
(1) Disengage two claws A, and detach the CVF FPC to the CVF Mask.
(2) Disengage two claws B, and detach the CVF Reflector from the CVF P.C.B.
(3) Disconnect the CN4101 and CN4102, and detach the CVF FPC and CVF Ass’y.
<Notes on Reassembling>
(1) Mount the CVF Reflector, gently pressing the area from the CVF Mask to the Diffuser in the arrow direction.
(2) Insert the flexible cable of CVF Ass’y under the rib of CVF Inner Cover as illustrated.

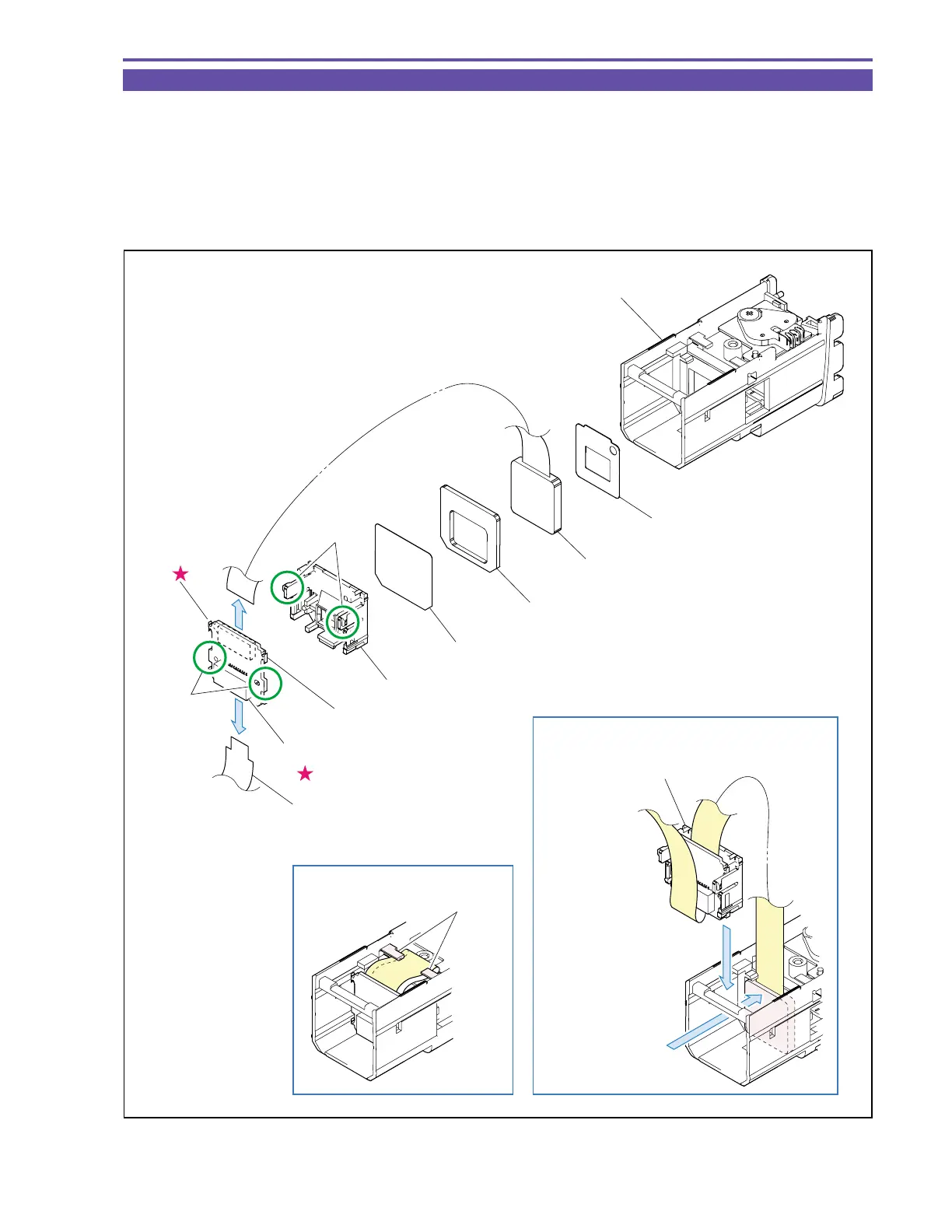

Fig. 29
Note on Reassembling (1)
Note on Reassembling (2)
CVF Inner Cover
CVF Mask
CVF Ass'y
Cushion
Diffuser
CVF Reflector
CVF Reflector Parts
CVF FPC
CVF P.C.B.
Claw A
Claw B
Rib
(3)
(3)
CN4102
CN4101
Insert
