MV750i E, MV730i E, MV700i E, MV700 E, MV690 E
TECHNICAL DESCRIPTION
8
3-2-2 Progress of Charging
When the conditions described in 3-2-1 are satisfied, the MODE MI-COM starts charging according to the specifications in Fig. 5.
The charging current in quick charge can be restricted by Compact Adapter (CA-570 / CA-570S).

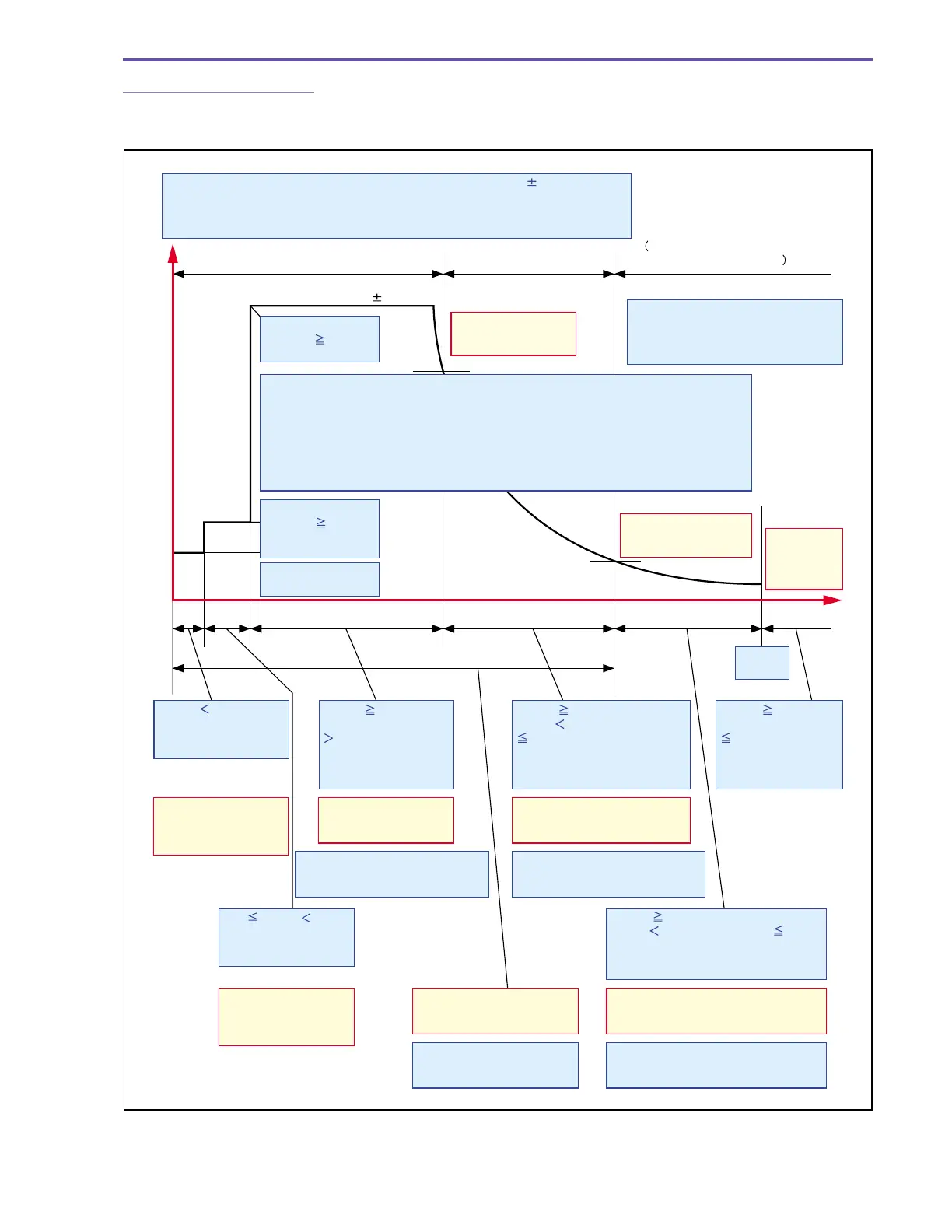

Fig. 5
TOTAL TIMER
Quick charge 1.525A
0.075A
LED flashes once LED flashes twice
LED lights up steadily
Up to battery installed/removed
and power turned ON
Charging current
When battery voltage
becomes
6.5V,
quick charge starts.
100mA
ADI detection voltage
= 0.147V
0.75A
ADI detection voltage
= 1.118V
70mA
ADI detection
voltage
= 0.105V
Torque 2 timer
100 min. max.
Error indicated and
charging OFF at timeout
Torque 1 timer
110 min. max.
Error indicated and
charging OFF at timeout
BATT V 5.2V
INIT-CHG1 OFF
INIT-CHG2 ON
INIT-CHG3 OFF
Quick charge timer
Error indicated and
charging OFF at timeout
* An error is indicated and charging is turned OFF if the battery voltage becomes 6.4V
or lower during charging other than trickles 1 and 2.
* An error is indicated and charging is turned OFF if the battery voltage becomes 5V
or lower during charging trickle 2.
* An error is indicated and charging is turned OFF if the charging voltage is 1.8A or higher.
* Charging is turned OFF if the charging current is 70mA or lower.
* An error is indicated if, at a start of quick charge, D terminal voltage is varied 0.15V toward
positive side or 0.3V toward negative side.
If the battery is not installed/removed
after completion of charge, charging
does not start unless the battery voltage
becomes 7V or lower.
* Charging is allowed to start provided that the UNREG voltage is 8.4
0.3V before
starting the charging. Otherwise, an error is indicated.
* Charging can be performed provided that the power is turned OFF.
* If the DC JACK is detected, the charging is turned OFF when the power is turned ON
(no power supplied from the battery).
Lapsed time
BP-508/511/512/514 : 100min.max
BP-522 : 150min. max
BP-535 : 200min. max
Total timer
LED lit and charging ended at
timeout
BP-508/511/512/514 : 5Hmax
BP-522 : 7.5Hmax
BP-535 : 10Hmax
Charge
ended
5.2V BATT V 6.5V
INIT-CHG1 OFF
INIT-CHG2 ON
INIT-CHG3 ON
BATT V 6.5V
ADI detection voltage
1.118V
INIT-CHG1 ON
INIT-CHG2 ON
INIT-CHG3 OFF
If the battery voltage
becomes
5.2V,
the trickle 2 starts.
350mA max.
Trickle 1
40mA max.
BATT V 8.0V
ADI detection voltage
0.109V
INIT-CHG1 OFF
INIT-CHG2 OFF
INIT-CHG3 OFF
2-flash timer
LED lit and charging ended at
timeout
BP-508/511/512/514 : 138min.max
BP-522 : 207min. max
BP-535 : 276min. max
BATT V 8.0V
0.147V
ADI detection voltage
1.118V
INIT-CHG1 ON
INIT-CHG2 ON
INIT-CHG3 OFF
Supplementary timer
LED lit and charging ended at
timeout
BATT V 8.0V
0.105V
ADI detection voltage 0.147V
INIT-CHG1 ON
INIT-CHG2 ON
INIT-CHG3 OFF
BP-508/511/512/514 : 1Hmax
BP-522 : 1Hmax
BP-535 : 1Hmax
