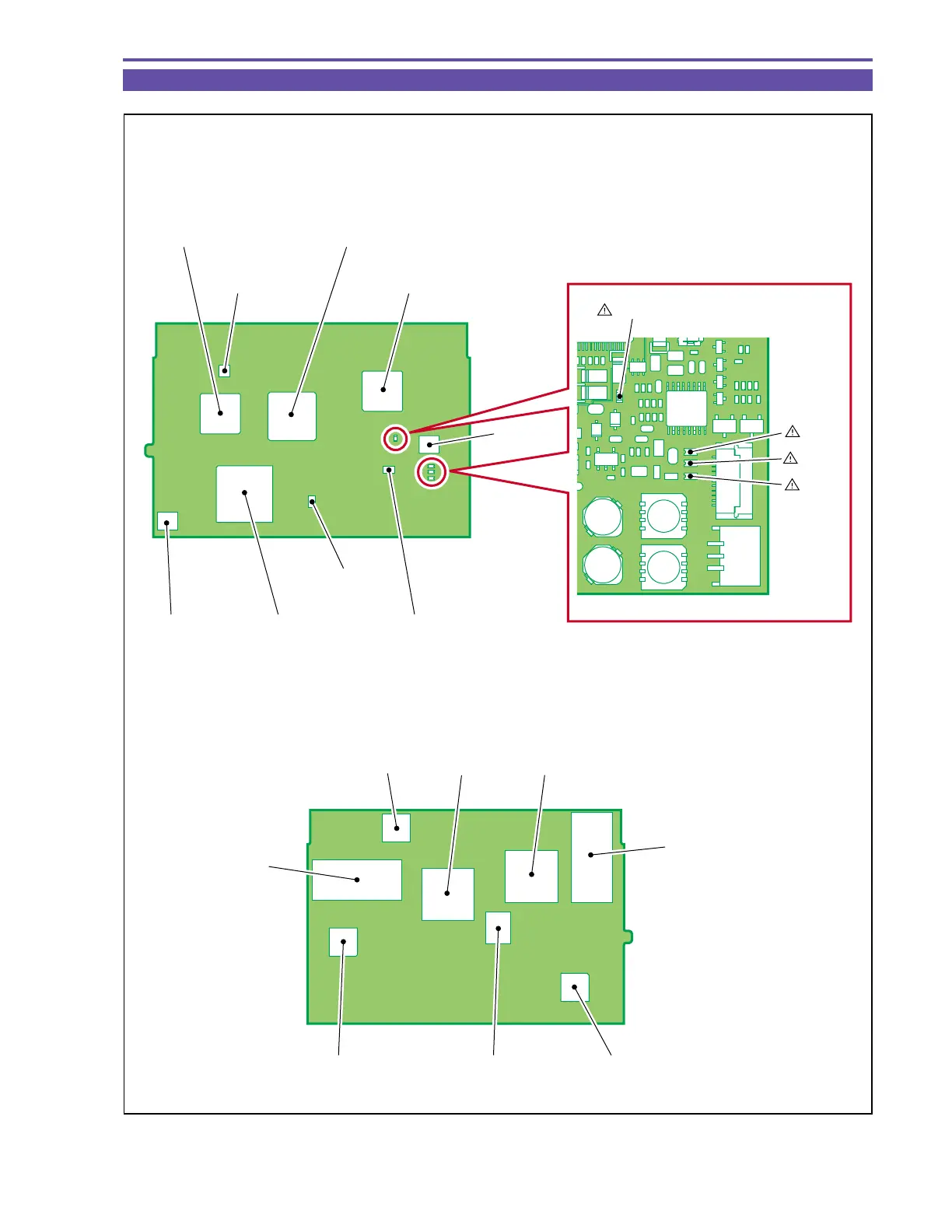

1-2 Location of Main Elements
Fig. 2
IC100
MODE-COM
IC1200
LENS DRIVE
IC103
RESET
IC300
OPE AMP
IC301
MOTOR DRIVE
IC1102
SDRAM
IC1103
DIGIC DV
IC2301
VIC4
IC2000
VRP2
IC2302
SDRAM
IC3201
DC/DC CONVERTER CONTROL
IC2300
FLASH
IC801
AUDIO INTERFACE
IC102
BACKUP
IC3203
4.7V REGULATOR
IC1800
CHARGE IC
IC1501
EVF DRIVER
MAIN P.C.B.
FU3202
FU3203
FU1801
FU3201
