MV750i E, MV730i E, MV700i E, MV700 E, MV690 E
DISASSEMBLING
31
<Note on Reassembling>
(1) Mount the Eye Piece Rubber on the CVF Inner Case, and then mount the altogether on the CVF Inner section as illustrated.
<Instruction for Supply>
CVF Top Cover's inner wall rail parts 4 points : Hanarl KS-39M (DY9-3053-000)
CVF Top Cover's rail parts 2 points : Hanarl KS-39M (DY9-3053-000)

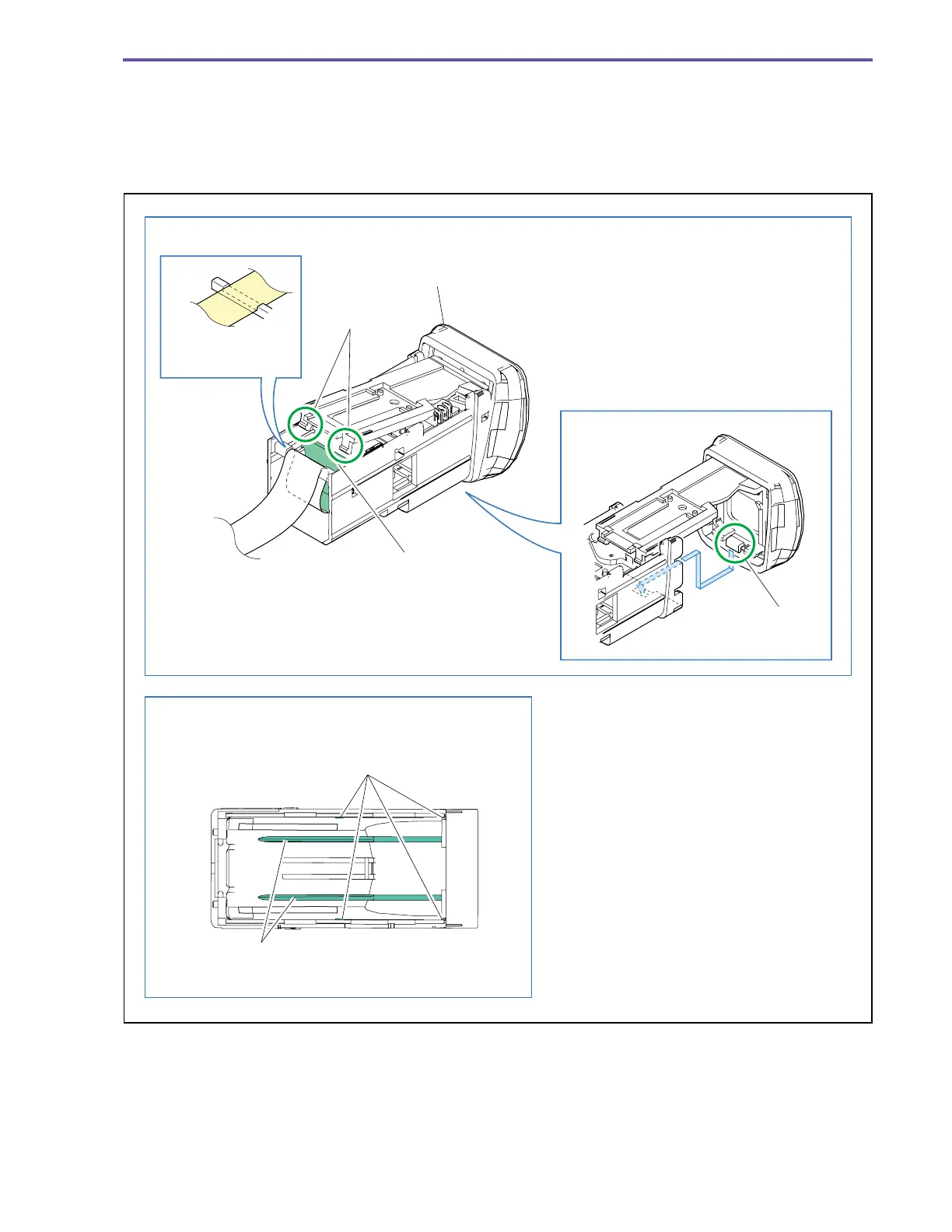

Fig. 28
Note on Reassembling (1)
Claw A
Hanarl KS-39M
CVF Top Cover's rail parts
Hanarl KS-39M
CVF Top Cover's inner wall rail parts
Eye Piece
Claw B
Running CVF FPC
between the ribs.
CVF FPC
First engage the Eye Piece side (claw B)
and engage the claw A.
Instruction for Supply
To Next Page
