Canon MV750i E - Page 124

MV750i E, MV730i E, MV700i E, MV700 E, MV690 E
DISASSEMBLING
30
1-25 Disassembly of CVF Unit - 2
(1) Detach the CVF Inner section.
(2) Remove two screws (b × 2), and detach the CVF Hinge Ass’y.
(3) Remove a screw (c × 1), and detach the CVF Spring Click.
(4) Disengage two claws A, and detach the CVF Inner Case and Eye Piece Rubber.

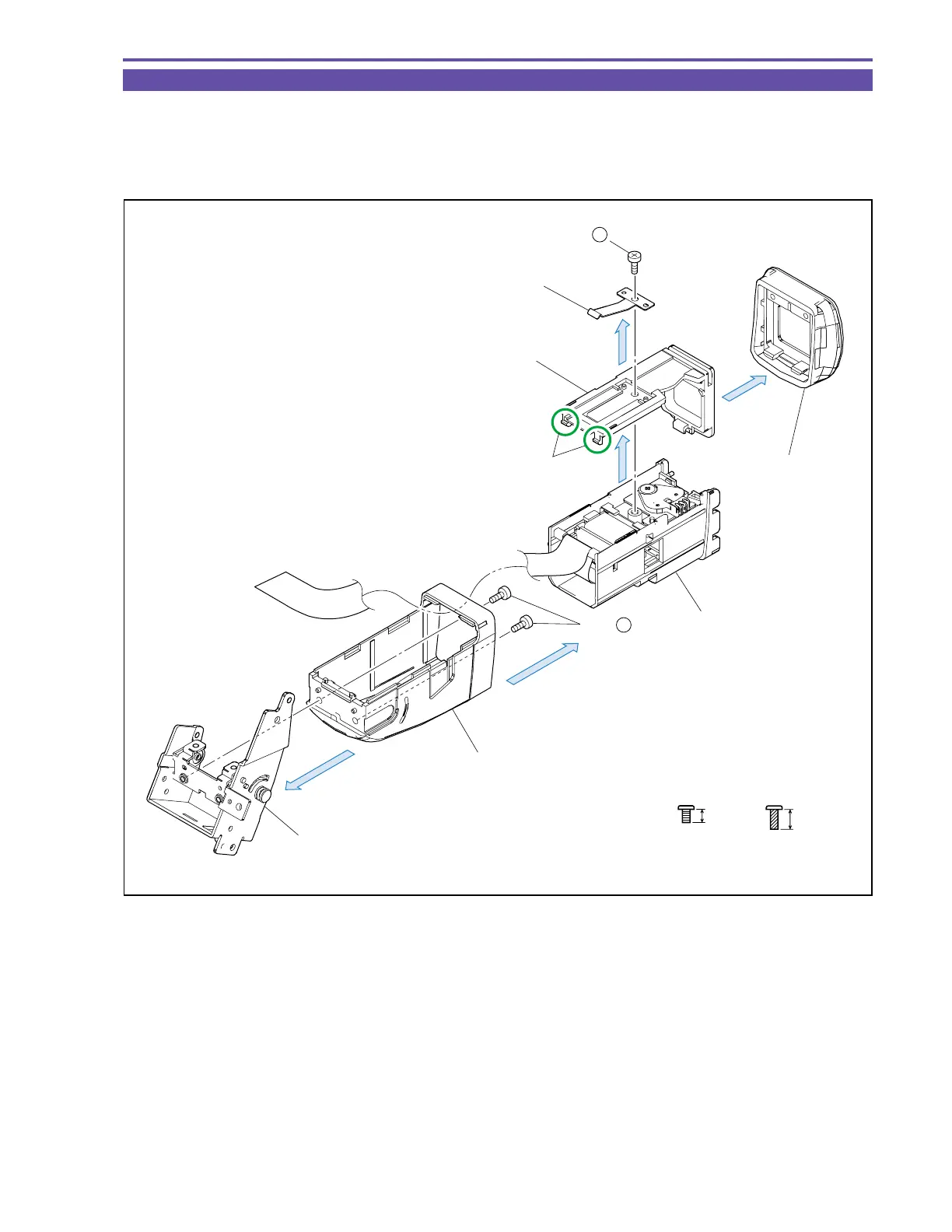

Fig. 27
Metal
M1.7
(self tap)
4.5mm
c
3mm
Metal
M1.7
b
(3) - c
(2) - b
Claw A
CVF Hinge Ass'y
CVF Top Cover
CVF Inner Section
CVF Inner Case
CVF Click Spring
Eye Piece Rubber
(1)
(2)
(3)
(4)
(4)
